SALES Food Sauce Bag Packing Machine Automatic Pouch Packing Machine For Masala
- SHANGHAI GUANGZHOU
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
-


Hibar Pump Driver Packing Machine for Sachet Shampoo Price Pouch Packing Machine in India
 -


Automatic Pouch Packing Machine for Masala the Best Price in China
 -


Automatic High Speed Pure Water Sachet Packaging Machine Packing Machine in Lahore Pakistan
 -


Baby Food Pouch Packing Machine Maker Packing Machine in Lahore Pakistan
 -


Packaging Machine With Sensors Tomato Paste Filling Machine Packing Machine in Lahore Pakistan
 -


Hibar Pump Auto Packaging Machine for Sachet Seasoning Packing Machine in Lahore Pakistan

Product Details
| Condition | New | Function | Filling, Sealing, Slitting | |
| Application | Apparel, Chemical, Food, Medical | Packaging Type | Bags, Film, Pouch | |
| Packaging Material | Plastic, Other, Plastic, Foil, Kraft Paper | Automatic Grade | Automatic | |
| Driven Type | Electric | Voltage | 220/380V | |
| Power | 2.3Kw | Place of Origin | Hubei, China | |
| Brand Name | HT-TECH | Model Number | HT-Y319F-20C | |
| Dimension(L*W*H) | L1400 W900 H2100mm | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

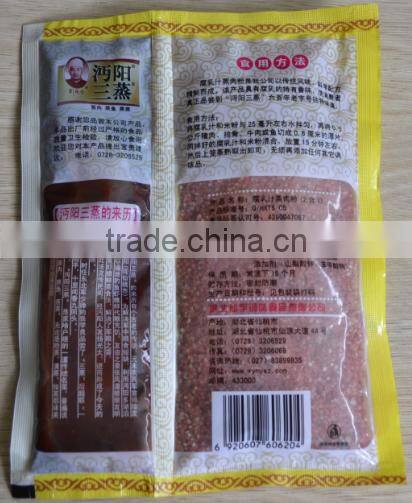

SALES Food Sauce Bag Packing Machine Automatic Pouch Packing Machine For Masala
The machine seals adopt Dual union bag tetra pack method, according to different material, the packing
materials adopt different metering device to inject into bags.Cut off methods can use each of
flat knife, serrated knife, point marking knife as requirement.And equipped with ease open bags
cutting device.
HT-Y319F series mechanical breakthrough adopts localizable high performance double frequency
conversion PLC control system, through "man-machine dialogue", make the adjustments for
replacing products become simple, accurate and stable, English interface making the setting
operations simple, intuitive, and reliable
1, High speed and high precision.
2, man-machine dialogue operation interface.
3, setting of bags length can simple and reliable adjustments in a wide-area.
4, photoelectric automatic calibration within three bags.
5, double variable frequency drive, stable and reliable running.
6, roller suppoted by high temperature bearing, perfect sealing, free maintenance, low noise
Bag Size  | Length: 50-210mm  | Width: 30-200mm  |
Packing Speed  | 20-120 Bags/min  | |
Capacity Range  | 100-500g  | |
Bag Materials  | PET/PE,PET/AV/PE, NY/AL/PE,NY/PE, etc  | |
Mechanical Power  | 3.8KW/AC 380V  | |
Mechanical Dimensions  | L1400mm*W1000mm*H1800mm  | |
Sealing Method  | Three or four edges sealing  | |
Net Weight  | 500Kg  | |
Optional Device  | Product conveying belt, Automatic feeding system, Liquid level display device, Mixing system, Third section electric control system, Code machine/Printing machine, Voltage regulator, Air compressor, Back suction device  | |
In our machine, there are lots of electronic parts, some of them come from chinese best manufacturers and some from japan, german. They have different function to make the whole machine running well, we making a simple list to show these parts.
Longitudinal sealing inverter:  | 0.75KW Panasonic inverter  |
Transverse sealing incerter:  | 1.5KW Panasonic inverter  |
Touch screen:  | WeinView touch screen  |
PLC Module:  | Delta PLC  |
Temperature Controller:  | Omron  |
AC contactor:  | DELIXI  |
Relays:  | Omron  |
Color logo recognition sensor:  | BALEFU  |
Angle encoder:  | Seiko  |
Circuit protector:  | DELIXI  |
Main Motor:  | YUQIU  |
Type 80 vertical gear reducer:  | YUQIU  |
Type 50 horizontal gear reducer:  | YUQIU  |
Solid state relays:  | Tianhao  |
Our machine can be applied to following scope & products, include Food, Medicine, Pesticide or some other related sauce materials (As shown)

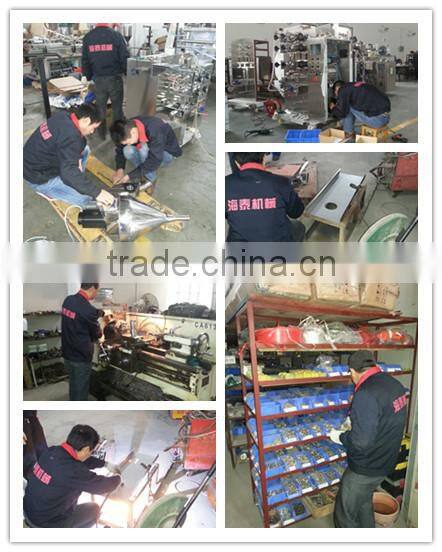

We have a group of Seasoned workers, their average age is 40 years old, and the chief engineer is Chinese first batch of personnel that engaged in design and manufacture of packaging machinery industry, our company also spends resources for the cultivation of young engineers. With them, we can promise you the high quality and best after-sale service. All our processing flows comply with related standards to ensure our products qualified leave factory, there are some pictures show the processing.
We use plywood case as the normal packaging case, if client or nation standard requires, we can offer fumigating wooden case too. Shipping by sea is the normal type and urgent by air.
·Find our products through or http://hi-techmachinery.en.china.cn
· One year warranty for the whole machine
· Free equipment installation and debugging
·After one year, we can help you to maintain the machine and the accessories are provided omle one the cost price
·Every 3 years, we can help to overhaul the machine freely (labor)
·We can provide internship service and help you train the operator and machunic
·Free production technology and process configuration
Wuhan Hai Tai Wei Chuang Technology Co., Ltd. located in the Daijiashan Science&Technology Park of Wuhan city Since 2002. We have 13 years of production experience.Our company is one of the most professional vertical type small bag packing machine enterprises that integrate research and development,manufacturing of single packing machine & packing line. We has been devoting to the develop of domestic and international markets. It has dozens of distributors and after service outlets spreading around China, providing good pre-sales and after-sales services for the customers.
Looking forward to establishing good business relationship with you on mutual benefit!
Always welcome!
We have a group of Seasoned workers, their average age is 40 years old, and the chief engineer is Chinese first batch of personnel that engaged in design and manufacture of packaging machinery industry, our company also spends resources for the cultivation of young engineers. With them, we can promise you the high quality and best after-sale service.
The salemen in our company are excellent too, we often join Alibaba, Baidu, chamber of commerce and oher related organization's training and activity, our company also give us a lot of training about machine's knowledge, our goal is to be the team that can solve clients' questions at the first time.
Partners
In china, our company has a lot of partners, and cooperating with each other, we offer solution to partners as per their requirements, and they give us market popularity, each takes what he needs.
We also have some foreign partners in Australia, Russia, Brazil, East-south asia and etc.. Now we spend a lot of resources, want to develop more foreign partners, become a trustworthy outstanding supplier, get more market recognition.
The following picture shows our main partners logo.

Thank you for your patient reading, if you are interested in our product, please contact me with following ways:
Tel: +86 27 85508177 - 811
Mob: +86 17786511657 / 15007142680
Fax: +86 27 85508277
Wechat: hjjk12456
WhatsAPP: +86 1500714280
Viber: +86 15007142680
QQ: 403145583
Hope a long term friendship with you guys!!
