45Kg-180Kg Efficient Energy Saving Clothes Dryer Machine/Industrial Clothes Tumble Dryer

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Guangzhou

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	QIANGYE
Model Number	GYE-300

Product Description

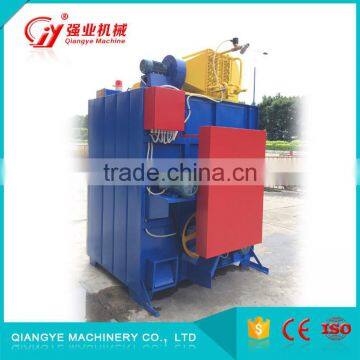

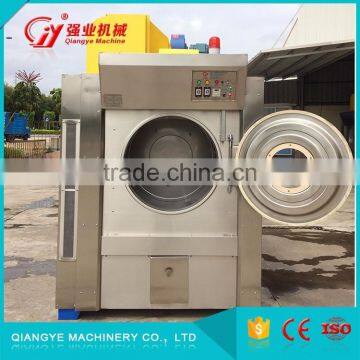

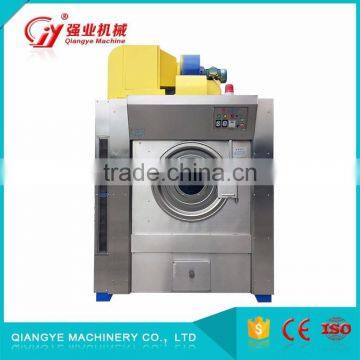

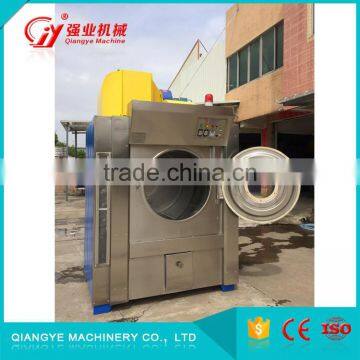

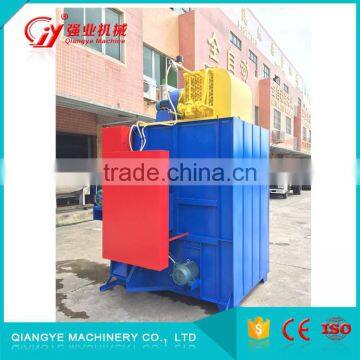

45Kg-180Kg Efficient Energy Saving Clothes Dryer Machine/Industrial Clothes Tumble Dryer

Product Parameters

Product Description:

GYE Series Energy-Efficient Industrial Dryer is a new generation dryer whose feature is high efficiency and low energy consumption.

Feature:

Recycling remain heat energy.

Energy-Efficient industrial dryers take full advantage of heat energy because of recyling heat exchange's condensationwater to energy-saving.

Heat exchanger for double heating up.The new generation dryers solve a big problem which is normal dryer washing heat energy,moreover,saving energy andhigh efficient.

Energy-saving Data

According to Chinese national standard,normal dryer evaporate 1kg moisture need 4kg steam.Our company producing thenew generation dryer evaporate 1kg moisture only need 2.4kg steam.Saving-energy over 40%,reducing cost of production sharply.

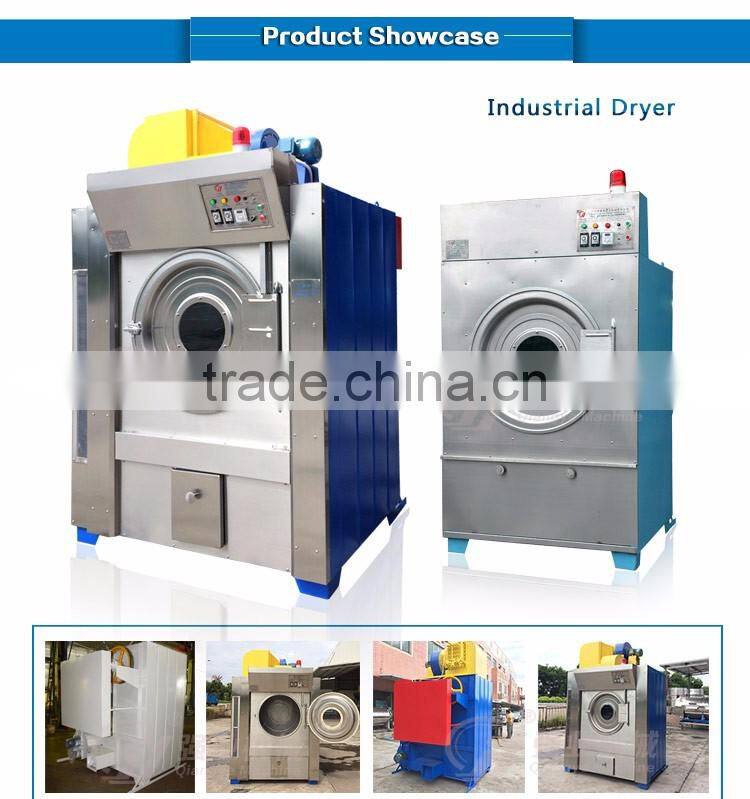

GYE SERIES ENERGY-EFFIVIENT INDUSTRIAL DRYER

Model	Capacity		Pressure MPa	Drum Speed R/Min	Drum Size D×Lmm	Dimension L×W×H mm	Motor Power			Weight Kg
Model	Kg	Lb	Pressure MPa	Drum Speed R/Min	Drum Size D×Lmm	Dimension L×W×H mm	Main Power Kw	Exhausting Fan Kw	Drawing Fan Kw	Weight Kg
GYE-100	45	100	0.4-0.8	30	Φ970×970	1620×1230×2400	1.1	1.1	2.2	600
GYE-150	68	150	0.4-0.8	30	Φ1200×970	1650×1450×2500	1.5	1.5	2.2	650
GYE-200	90	200	0.4-0.8	28	Φ1440×1040	1860×1750×2600	2.2	2.2	2.2	800
GYE-300	135	300	0.4-0.8	28	Φ1740×970	1860×2030×2800	3	2.2	3	1100
GYE-400	180	400	0.4-0.8	28	Φ1740×1300	2800×2030×2900	4	2.2	3	1200
