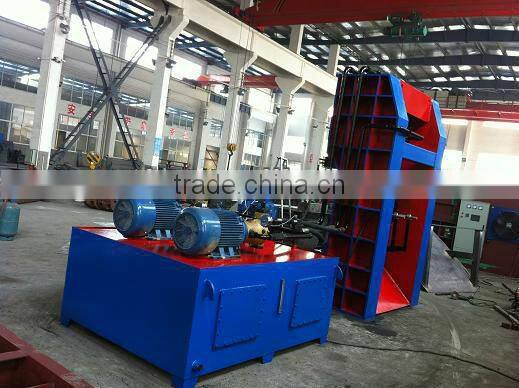

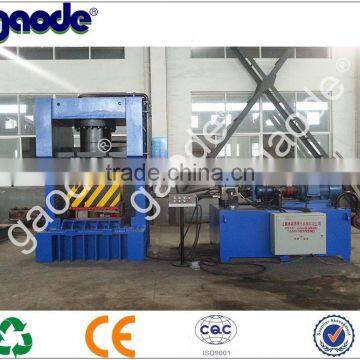

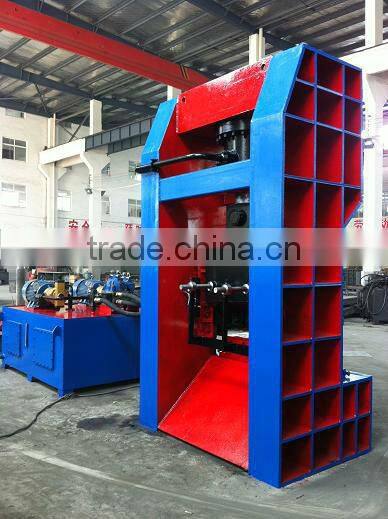

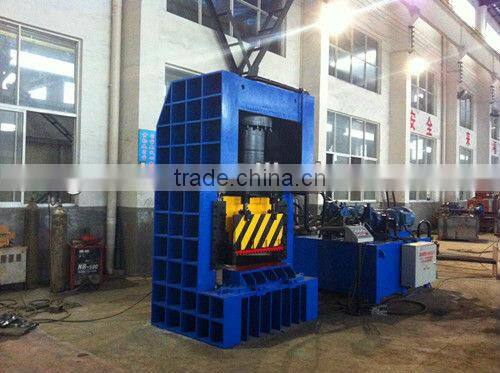

Gantry Hydraulic Scrap Metal Plate Cutting Machine Price
- Shanghai for Gantry Hydraulic Scrap Metal Plate Cutting Machine Price
You May Like
-

                        For Sale Hydraulic Alligator Scrap Aluminum Frame Shear
-

                        HC43-630 High Quality Aluminum Composite Panel Cutting Machine Affordable
-

                        In Suitable Size HC43-2500 Hydraulic Scrap Metal Cutting Machine
-

                        2015 Fashion Scrap Mental Aeroplane Selling Well HC43-2500
-

                        Worldwild Market HC43-630 Newest Scrap Metal Hydraulic Cutting Machine
-

                        HC43-630 Small Size Hydraulic Scrap Metal Sheet Cutting Machine
Product Details
| Application | Other, Machinery & Hardware | |||
| Packaging Type | Other, In nude | Packaging Material | Other, Plastic bag | |
| Automatic Grade | Automatic | Driven Type | Hydraulic | |
| Voltage | 25 MPa | Power | 44 KW | |
| Place of Origin | Jiangsu, China | Brand Name | gaode | |
| Model Number | HC42-4000 | Weight | None | |
| Dimension(L*W*H) | 1840*1240*3000mm | Certification | ISO9001: 2008, CE;CQC | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Applications Of Gantry Hydraulic Scrap Metal Plate Cutting Machine:
Applicable in recycling companies, automobile dismantling plants, smelting &casting industry to Cold-shear section steel and metallic structural parts into acceptable furnace charges.
Square sheet shear is mainly applied to cut sheet metal into different sizes. The machine can substitute flame cutting. Cost of production is reduced.
Technical Specifications Of Gantry Hydraulic Scrap Metal Plate Cutting Machine:
| Type | Nominal Force(KN) | Blade Length(MM) | Shearing Frequency (time/min) | Max Blade Opening (MM) | Max Shearing palte size (MM) | Power (KW) |
| HC42-1200 | 1200 | 600/800 | 7-15 | 120 | 20X600 | 15 |
| 1200 | 20X1200 | |||||
| HC42-1600 | 1600 | 600/800 | 25X600 | 18.5 | ||
| 1200 | 25X1200 | |||||
| HC42-2000 | 2000 | 600/800 | 25X500 | 22 | ||
| 1200 | 25X1200 | |||||
| HC42-2500 | 2500 | 600/800 | 30X500 | 30 | ||
| 1600 | 30X1600 | |||||
| HC42-3150 | 3150 | 800 | 35X800 | 37 | ||
| HC42-5000 | 5000 | 800 | 40X800 | 44 | ||
| RMK: 1.Increase the blade opening size and reduce the shearing time; 2.When the tensile strength of the scrap more then 450Mpa, the scrap is not allowed to shear. | ||||||
HC42-3150 Gantry Hydraulic Scrap Metal Plate Cutting Machine
Detailed Information Of Gantry Hydraulic Scrap Metal Plate Cutting Machine
HC42-3150
Max Shear Force: 315tons
Blade Length: 800mm
Max Blade Opening: 120mm
Shear Frequency: 7-15 time/min
Max Shearing Plate Size: 35*800mm
Power: 37KW
Operation: Manual Feeding, manual or automatic operation.
HC42-4000 Gantry Hydraulic Scrap Metal Plate Cutting Machine


GAODE Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.
In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.Our company was first inaugurated in 2003.
Our GAODE brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.
Finished Products
Our Exhibition
Our Certification
Welcome To Our Factory

6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
Ms. Apple Zhang
Sales representative
Jiangsu Gaode Hydraulic Machinery Co.,Ltd---China factory
Add: No. 691 Chengshan Road, Jiangyin City, Jiangsu Province.
Mobil/What's App : +86-15906169741 (24/7)
Tel: 86-510-86996082
Fax: 86-510-86993993
Skype: zhangguoping520
QQ: 445228997
Q1:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q2:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for machines?
A:100% self-inspection before packing
Q4:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
    Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
Q5: Can we order one set machine?
A:Yes, you can.
