Top quality Waste plastic pet washing recycling machine / PET bottles washing recycling machine

Item

Used to convey the pet bottles into the label removing machine

3kw

5m*0.6m

1000kg/h

Adjustable height

Machine quality: carbon steel

300kg

Used to remove the labels of the pet bottles

18.5kw+3kw

5m*1.2m*1.5m

2000kg/h

Screw length:498cm

Blade Quantity: alloy cutter head

Machine quality: carbon steel

Rotating speed:600r/min

1200kg

Used to manually pick the bottles of different color and size

3kw

6m long

1000kg/h

350kg

Used to convey the label removed bottles to the crusher

3kw
8m*0.8m
Height can be adjusted to 2.8m
1000kg/h
450kg

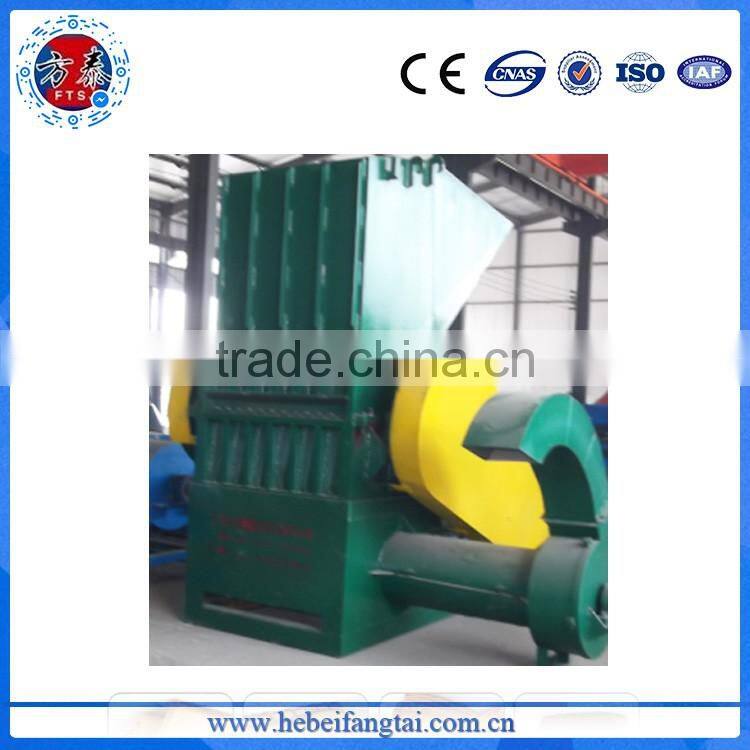

Crush the pet bottles into flakes/ little flakes

75kw

2.8m*2.2m*2.8m

1200kg

3000kg/h

Fixed blades:6pic

Rotated blades:10pic 14 16 , at your request

Mesh diameter:1.4cm 1.6cm 1.8cm

Blade quality: carbon steel

Spindle Speed:628r/min

Machine quality: carbon steel

The larger the mesh hole, the less capacity, and the size of the chips depend on the mesh hole.

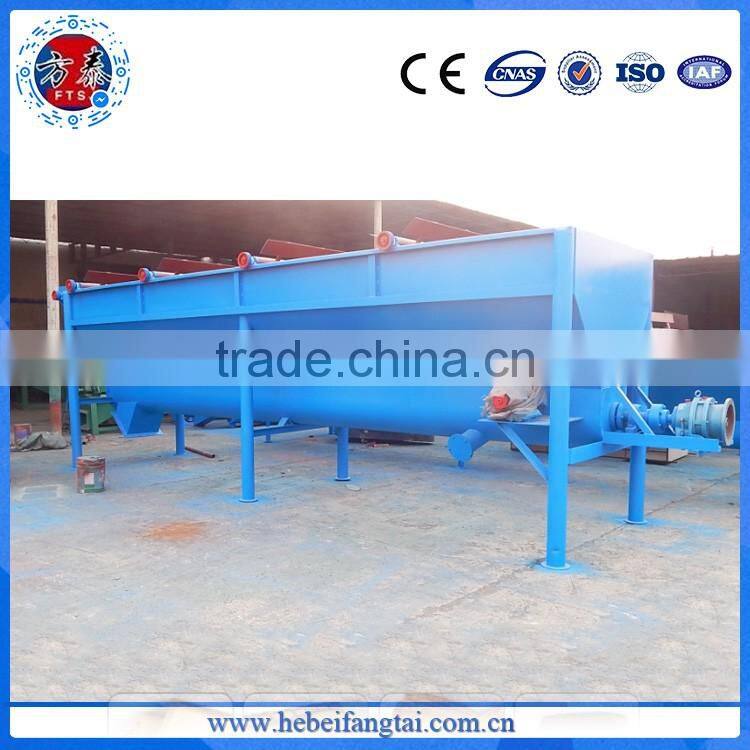

Used to separate the impurities from the crushed pet flakes, the pet flakes will sank down and the impurities ,rings and caps of the machine will float

4kw*2

6m*1.5m*1.3m

1000kg/h

400kg

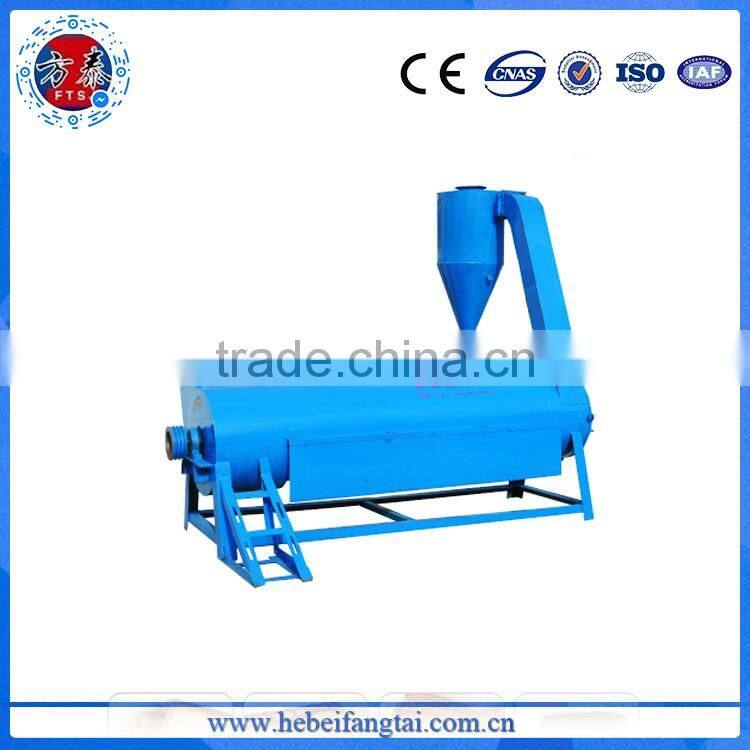

Use to lift away the crushed caps ,rings and impurities.

And has an extra function of dewatering.

Carbon steel

4kw

200kg

300kg/h

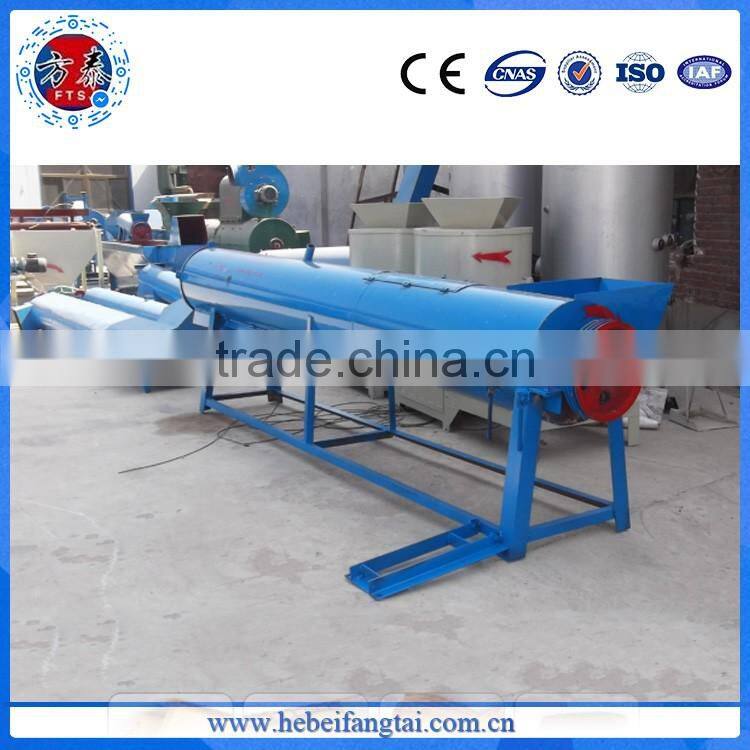

Used to remove the dirt sand of the flakes through friction,thus reach a result of cleaning

7.5kw.

3m long diameter:0.4m

3000kg/h

350kg

Used to convey the crushed pet flakes into the hot washer

4kw

4.5m long

Diameter:0.4m

3000kg/h

150Kg

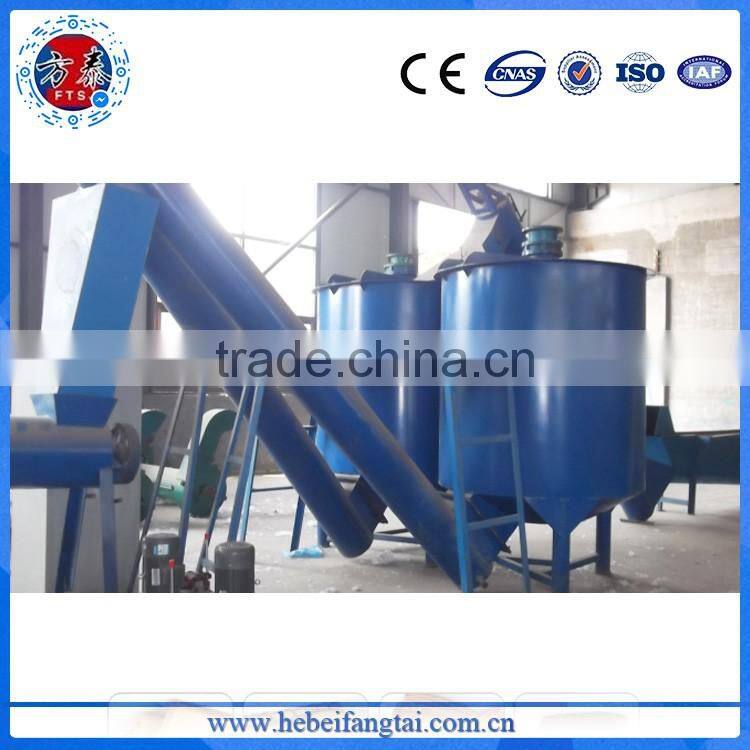

Used to heat the hot washer

This boiler can be heated by wood

Can be heated by coal, diesel. Natural gas and various fo fuel. And you put water with some liquid medicine in it. The water can be heated to 90 degrees. Pet flakes will be boiled and stired in the hot washer, remove some chemical stains of the stains, then further processing

Diameter:2.2m 2.5m heigh

11 kw*2

Two hot washer needed,

Carbon steel

Send the boiled flakes out of the hot washer

4kw

4.5m long

Diameter:0.4m

3000kg/h

Carbon steel

Remove the glue of the flakes through friction

22kw

3.5m long, diameter:0.7m

3000kg/h

Carbon steel

The more the tank, the cleaner the flakes, send the flakes to the dehydrator

8kw

7m*1.5m*1.3m

3000kg/h

Carbon steel

Used to dehydrate the cleaned flakes, moisture content :less than 3%,

Carbon steel and stainless screen

37kw

4.2m*1m*1.7m

Mesh size:5mm

Carbon steel

Control the whole line

Carbon steel
