Home > Products > Plastic crusher > Double shaft screw shredder

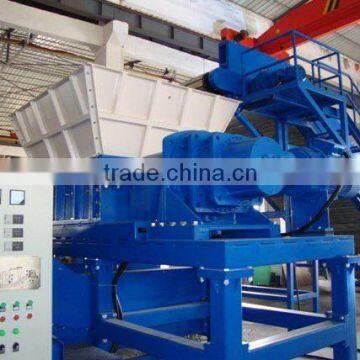

Double shaft screw shredder
- 2 Set / Sets per Month
- SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | sevenstars | |
| Model Number | SNC2 Series | Use | Other, plastic material/wood/tire | |
| Plastic Type | Other, PVC/PE/PP | Shaft Design | Double | |
| Power | Depend on the capacity | Capacity | As client's demand |
Product Description
Specifications
two shaft screw shredder the big diameter pipe. profile, basket,film etc wasted,Characteristic
Our double shaft shredding machine adopts the advanced technology introduced from Europe, and passed the CE Certification of Quality System. Low speed, high torque, low noise.
over-load protector , the machines is suitable to treat the big, thick of plastic products, such as big diameter plastic pipe , the shell of TV sets, refrigerators and washing machines, tires , plastic packing case, computer hard disk, aluminum, bronze and the thickness of steel less than 5mm.
The machine is controlled by PLC system, the blade can be rotated in opposite direction, and also will close automatically if something unexpected happen, with very high safety service
Remark
1. The standard thickness of rotary blades is 40mm, also 15mm and 20mm. you can choose the suitable blades according to the size of the processing granules.
2. For the rotary blades, we have single gripper, double gripper, and more than two grippers for your customers’ choosing.
Model | Feeding mouth(mm) | Speed (rpm) | Driving power (kw) | Size of disc-type blades (pcs.) | Quantity of rotary blades (pcs.) | Dimension (mm) | Weight (kg) |
LGSZ2140 | 400*500 | 85 | 7.5 | 240x30 | 12 | 1270X1120X1330 | 1500 |
LGSZ2160 | 600*540 | 85 | 5.5+5.5 | 250x40 | 15 | 1500X1120X1330 | 2000 |
LGSZ2180 | 800*540 | 85 | 7.5+7.5 | 260x50 | 19 | 2000X1120X1330 | 2500 |
LGSZ3280 | 800*800 | 85 | 15+15 | 280x50 | 20 | 2100X1420X1800 | 3500 |
LGSZ32100 | 1000*800 | 85 | 18.5+18.5 | 300x50 | 25 | 2400X1420X1800 | 4000 |
LGSZ32120 | 1200*800 | 85 | 22+22 | 350x70 | 28 | 2650X1420X1800 | 4800 |
LGSZ40100 | 1000*9800 | 85 | 22+22 | 400x70 | 40 | 2900X1700X2300 | 5000 |
LGSZ40120 | 1200*980 | 85 | 30+30 | 400x70 | 42 | 3200X1700X2300 | 6000 |
LGSZ40148 | 1480*980 | 85 | 37+37 | 400x70 | 42 | 3600X1700X2300 | 7500 |
