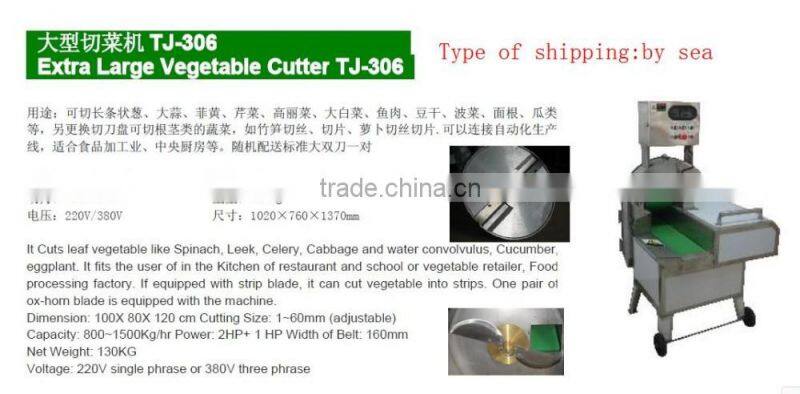

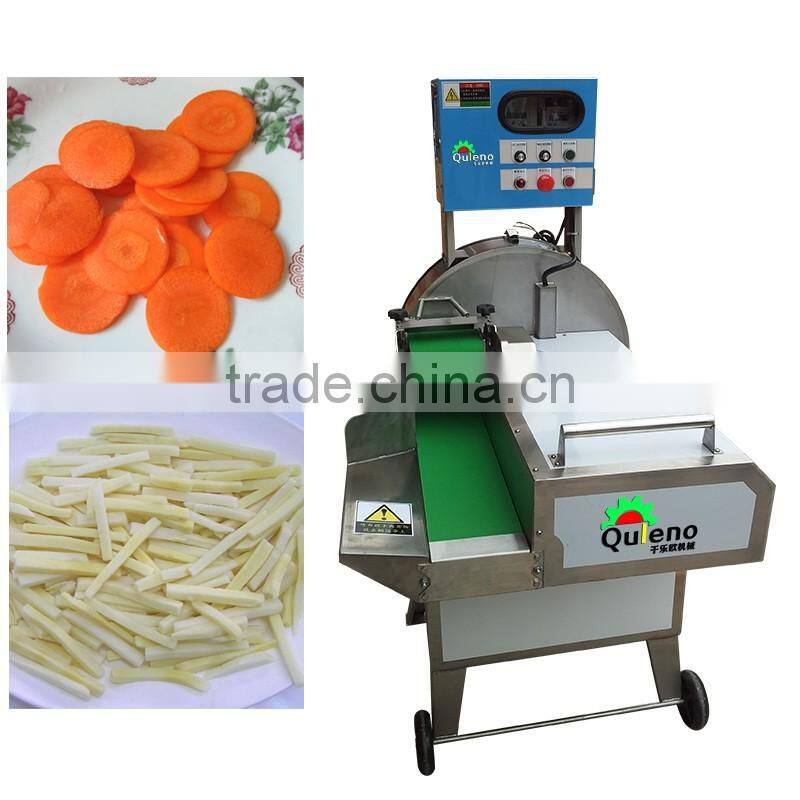

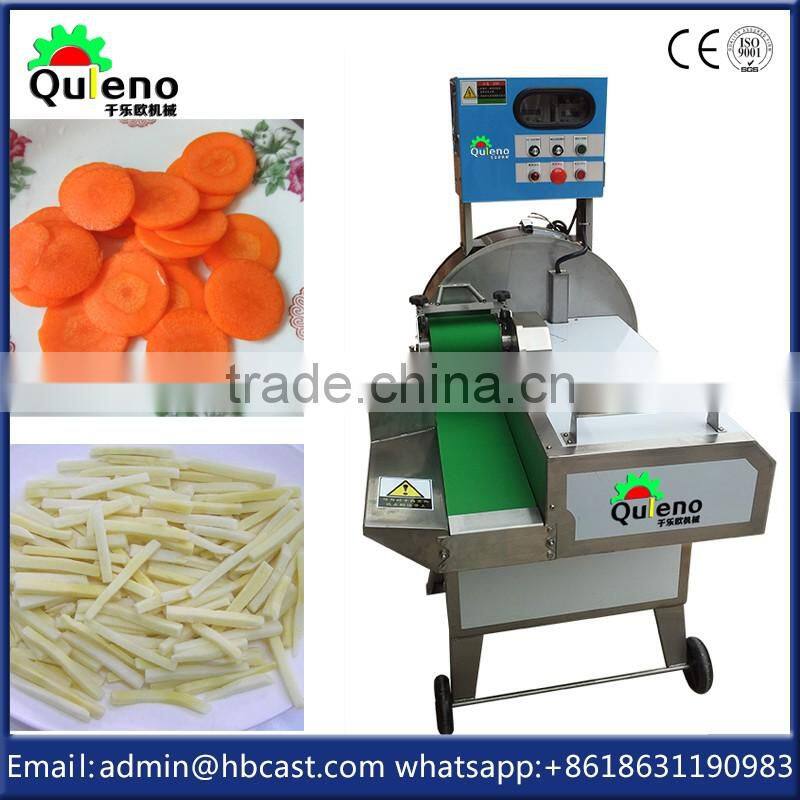

Wholesale Multifunction Economy Diced Vegetables and Fruit Dehydration Machine Dicing Machine Taiwan Series TJ306

Scope:Fruit and vegetable processing equipment

Uses: leafy - can cut a long strip onions , garlic, chives , celery , cabbage, Chinese cabbage cut into sections , etc. , the speed of the conveyor belt and the cutter can be adjusted using the inverter control cut the length of the cut vegetables .
Bulbous class - can Qieluo Bo , potatoes , taro , sweet potatoes, bamboo shoots , onions, melons, eggplant category.
Shape: cut into thick slices , cut corners wire, round wire cutting , cutting, cutting angle block , cut diagonal slices , cut can be adjusted .

This machine is installed dual protection switch , advanced design, more conducive to employees to do gymnastics .
Yield:300-1000kg /Hour

Cutting Size:0 ~ 60mm
Voltage:220V/380V

Power:2.5HP

Weight:135kg
Size :1160 × 530 × 1260mm

Security maintenance Shredder
1 , before operating the device is placed on level ground to ensure smooth and reliable machine placement ; determine the device plug contact is good , no loose water mark ;
2 , to check whether a foreign body or on the conveyor belt rotating the barrel , if foreign matter must be clean in order to avoid tool damage ;
3 , operation, adjustment required for processing in accordance with the Aquatica select cutting mode , centrifugal slicer for slicing melons hard potato dish , vertical blade portion can be soft leafy vegetables or a good film processing block cut into different sizes , Ding various shapes , diamond, etc. ;
4, after the installation of vertical knife , rotating the first eccentric adjustable , so that the tool holder to the lower dead point of the line , and then lift up the tool post 1-2 mm , so that the vertical conveyor belt in contact with the blade , the fastening nut of the vertical knife fastened on the knife . If the turret lift height is small , even the knife vegetables may , if turret lift height is too large , there may be bad cutting conveyor ;

Installation Environment Requirements Shredder
1 must be maintained in a stable environment using 380V commercial power supply , and because higher power , the power supply of large companies use some even more than 2KW, so the circuit lines must be securely used to safely support the normal machine operation.
2 must have normal water supply and discharge pipes , it is necessary discharge machine at work when a certain vegetable juice , and need regular washing to ensure that the working environment and health.
3 must be kept in a spacious environment to use in the process of cutting vegetable products , finished products will accumulate a lot of vegetables and vegetable juices , such as the environment is not spacious , are likely to cause accidents.
4 Keep the ambient ventilation, machinery and equipment in the work process , it will generate a lot of debris , mist , and the machine will produce some heat, ventilation will reduce the working space temperature, the vegetables remain fresh and effective .

Dicing machine

Means suitable for dehydrated vegetables, frozen vegetables, plants , jellies and other soft Honey Herbal ingredients and food processing industries pickles various roots, stems vegetables into cubes and rectangular shape of the machine in general.
Structural features
2.1.1 dicing machine mainly consists of frame, cutting the material used for the casing , pushing the dial , the tool assembly, powertrain and electrical control system.
2.1.2 dicing machine materials used must comply with food hygiene requirements , racks , housings, dial hopper and food contact parts are made of stainless steel .
Operational use
3.2.1 First, the material should be cut clean to the complex, if the material is cut with mud mixed with sand , the mouth and the knife blade plate easily damaged and blunt . Material should not exceed the maximum cutting diameter 100mm, diameter larger than this is required if the block .
3.2.2 Press the start button the motor running . ( If the cover is not laminated on the rack , not laminated switch XK, the line blocked, the motor is not running )
3.2.3 cut material from the hopper into a uniform thickness continuously into the hopper , in the role of the pusher wheel , the knife is cut as required , the disc is then cut into strips the knife , and finally cross- cutting knife cut into the box .
3.2.4 Adjustment dicing machine specifications : by adjusting the slice thickness , the replacement disk and cross cutting knife to cut knife change .
3.25 machine work , do not put your hands and other foreign objects into the housing , to avoid danger.
