A333 Manual Iron Strapping Tool
- Shanghai
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | XINNAI | |
| Model Number | A333 | Application | Other, flat packaging, Machinery and Hardware | |
| Package | Box | Number of Pieces | 1000 |
Product Description
A333 manual iron strapping tool
Technical data
| Mpdel number | A333 |
| strap type | steel strap(metal tape) |
| strap width | 12.7-19mm |
| strap thickness | 0.38-0.58mm |
| tool weight | 3.9KG |
| joint strength | about 80% |
| seal type | sealless jonint(buckle free) |
| strap quality | 850N/mm² |
Description:
A333 buckle-free steel strapping tool can operate manually,which connect with function of tensioning,sealing and cutting.it is used in flat packaging,such as pallets,boxs,and other simiar packaging.steel bands of common and high tensile strength are both acceptable.All the manual tools are easy to operate and can work efficiently in any occasion.
There is no need for an extra steel fastener due to the fastener-free connection. The average tensile strength of the buckle-free connection is about 80% of that of a steel strap, which is very reliable and can save about 10% of the total packaging cost.
Characteristic
All machine of the use of aluminum alloy manufacturing
Use a wear-resistant for bottom design
Adjust the cutter height easily, lightweight and long service life.
Features:
1,buckle-free connection,no need for an extra steel seal,reducing the production cost.
2,The average tensile strength of the buckle-free connection is about 80% of that of a steel strap, which is very reliable and can save about 10% of the total packaging cost
3,Solid seal notch way can bear high weight.
4,Easy to operate,3.9kg.
5,Simple and small disign parts can be replaced and maintain convenient.
This general steel band packing tool can be applied in almost all fields. Since it is reliable, solid, portable, and easy to operate. It is widely used around the world as an indispensable packing tool.

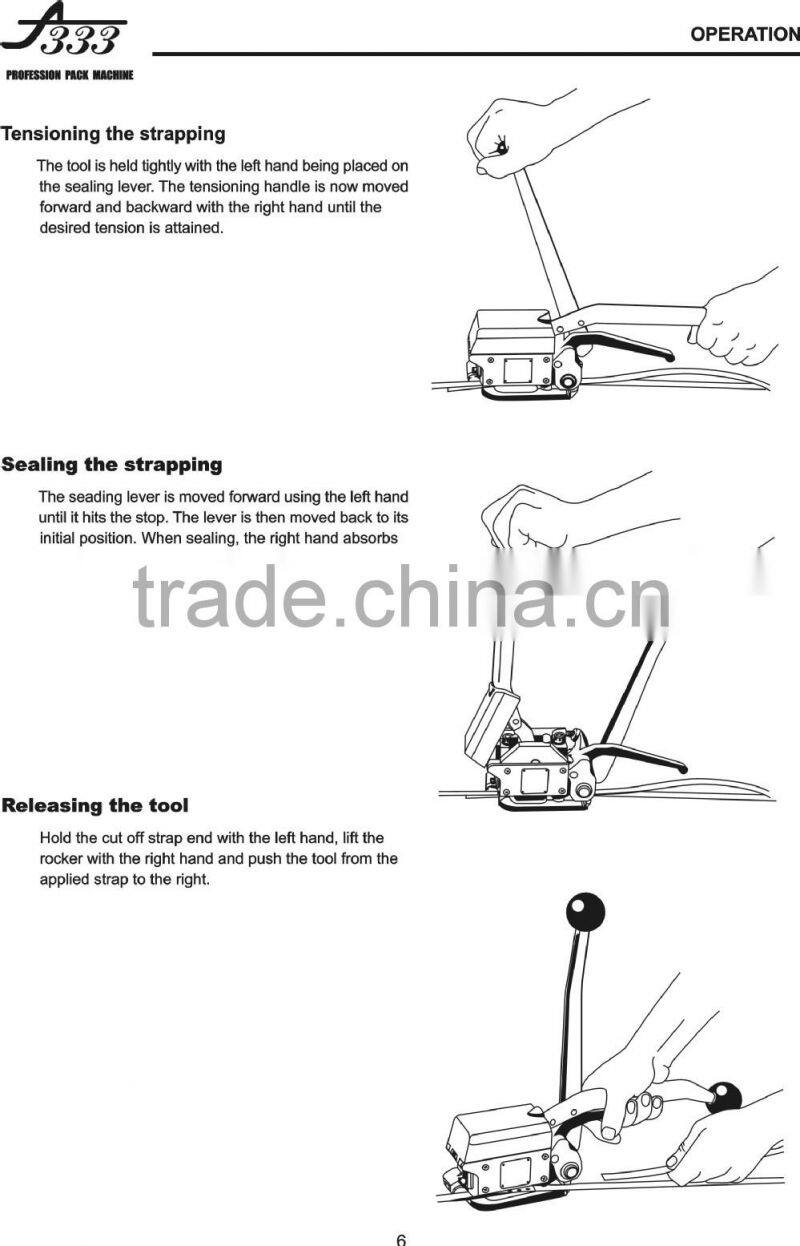

operation process

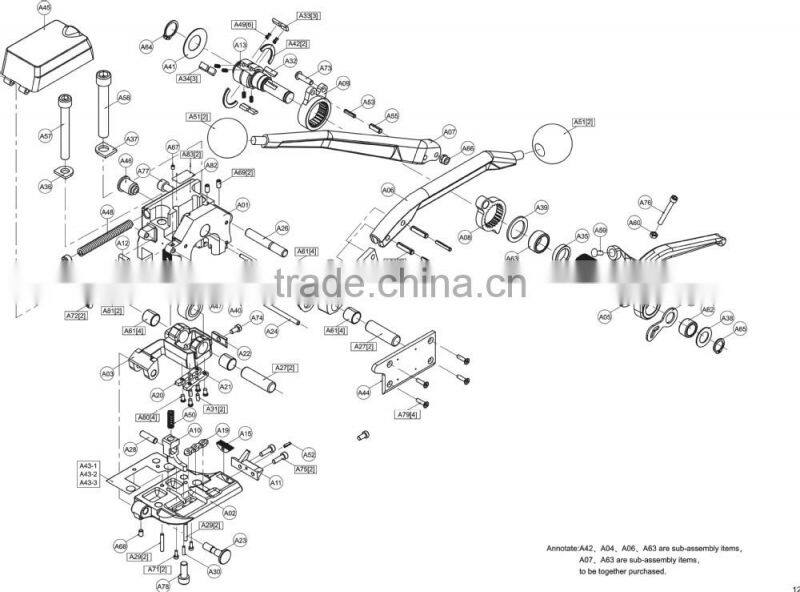

exploded view of tool

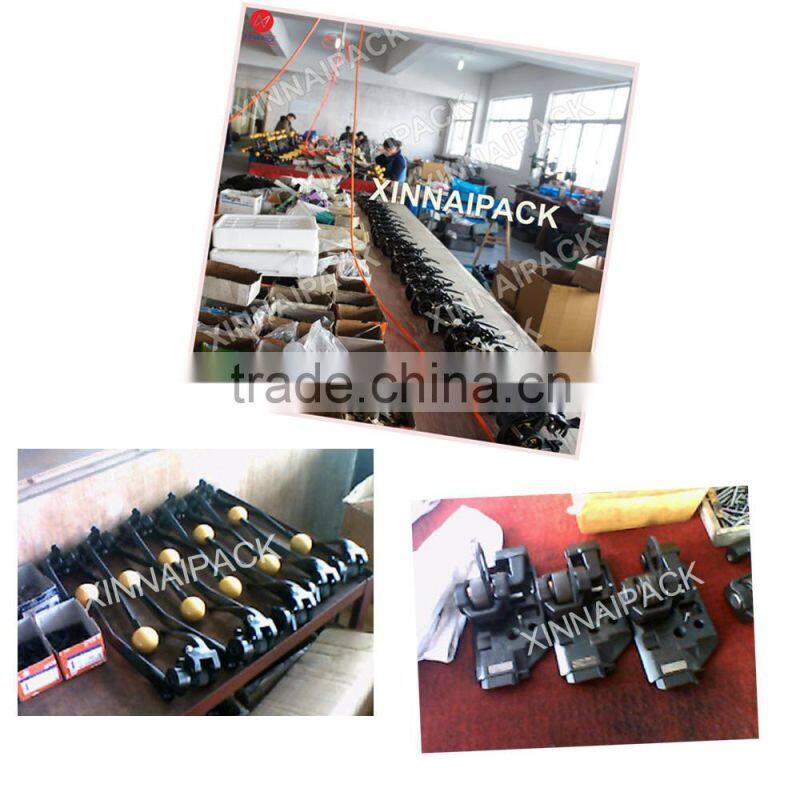

Factory
