Product Details
| Condition | New | CNC or Not | Normal | |
| Drilling Speed | 2840r/min | Place of Origin | Shandong, China | |
| Brand Name | HW | Model Number | HW350 | |
| Voltage | 220V | Power(W) | 0.75kw | |
| Dimension(L*W*H) | 2.1*0.9*1.3m | Weight | 42KG, 42kg | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Application
Drill Presses consisted of the powered drills that could be raised or lowered into a material, allowing for less force by the user. It is a machine tool in which a rotating cutter, usually a twist drill, is pushed into a workpiece to produce a hole. Drill Presses are available with a wide variety of performance characteristics, such as power and capacity.
Drill Presses are industry-widely in the foundery such as hardware, spare parts for Auto, Machine and electronic products and so on.

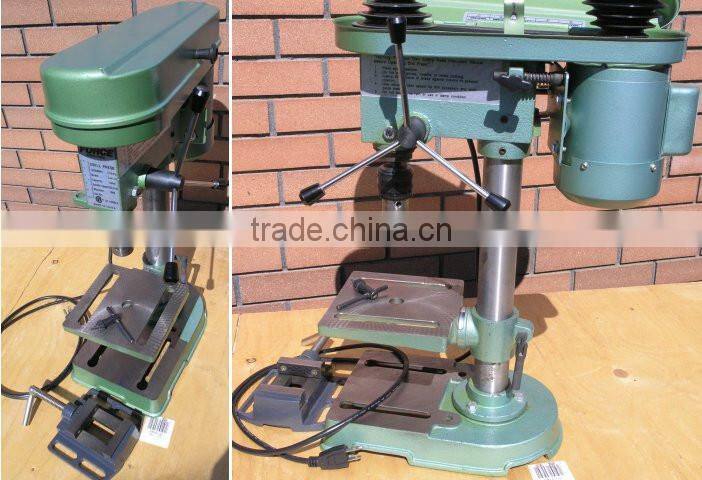

A drill press (also known as a pedestal drill, pillar drill, or bench drill) is a fixed style of drill that may be mounted on a stand or bolted to the floor or workbench. A drill press consists of a base, column (or pillar), table, spindle (or quill), and drill head, usually driven by an induction motor. The head has a set of handles (usually 3) radiating from a central hub that, when turned, move the spindle and chuck vertically, parallel to the axis of the column.
Features of Drill Press
A drill press has a number of advantages as below:
1 Less effort is required to apply the drill to the workpiece. The movement of the chuck and spindle is by a lever working on a rack and pinion, which gives the operator considerable mechanical advantage.
2 The table allows a vise or clamp to be used to position and restrain the work, making the operation much more secure.
3 The angle of the spindle is fixed relative to the table, allowing holes to be drilled accurately and consistently.
4 Drill presses are almost always equipped with more powerful motors. This enables
larger drill bits to be used and also speeds up drilling with smaller bits.
5 The Spindle is made from FCD material and treated by precision grinding techniques with heavy duty bearing system.
6 The Gear box is made from tool steel with heat treatment technology. The gear is a kind of gear by high precision machining.
7 The column and worktable is made by special-purpose casting iron, by precision grinding techniques with high duty and good tolerance.
8 The main body is a high duty structure with corresponding machine weight and better strength.

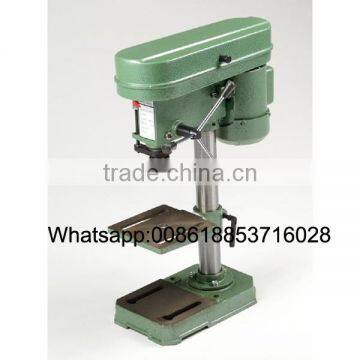

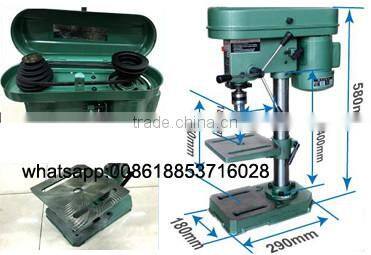

Motor power: 250W
Speed scaling: 620 - 2620rot / min
Max. drilling capacity: 13mm
Max. drilling depth: 50mm
Column diameter: 46mm
Total height: 581mm
Package Dimensions: 430 X 330 X 220mm
Weight: 16kg
Voltage: 220V / 50Hz

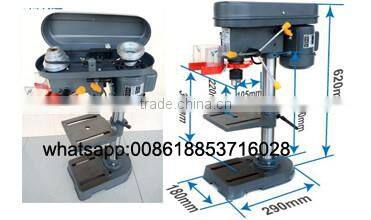

Motor power: 350W
Speed scaling: 580 - 2650r / min
Drilling table: 160 X 160mm
Max. drilling capacity: 13mm
Max. drilling depth: 50mm
Column diameter: 46mm
Total height: 620mm
Package Dimensions: 470X 370 X 250mm
Weight: 18kg
Voltage: 220V / 50Hz

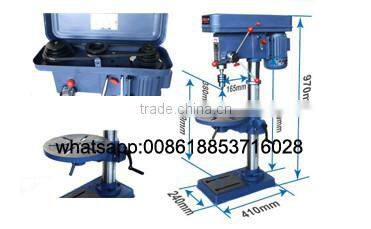

Motor power: 375W
Speed scaling: 220 -3320r/ min
Drilling table: 290mm
Max. drilling capacity: 16mm
Max. drilling depth:80mm
Column diameter:70mm
Total height: 970mm
Package Dimensions: 780X 450 X 280mm
Weight: 42kg
Voltage: 220V / 50Hz

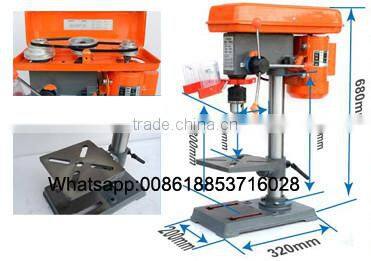

Motor power: 500W
Speed scaling: 280 - 2350r/ min
Drilling table: 170X 170mm
Max. drilling capacity: 16mm
Max. drilling depth: 50mm
Column diameter: 46mm
Total height: 680mm
Package Dimensions: 480X 370 X 250mm
Weight: 21kg
Voltage: 220V / 50Hz

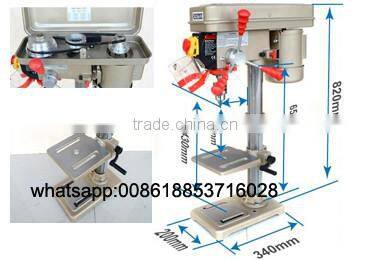

Motor power:750W
Speed scaling: 220 - 2450rot / min
Drilling table: 190 X 190mm
Max. drilling capacity: 16mm
Max. drilling depth: 60mm
Column diameter: 60mm
Total height:820mm
Package Dimensions: 765 X 435 X 195mm
Weight: 32kg
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

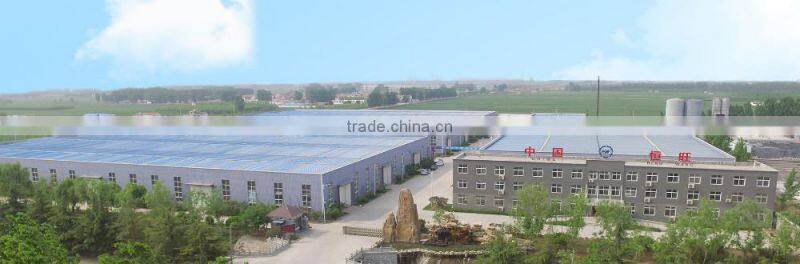

* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

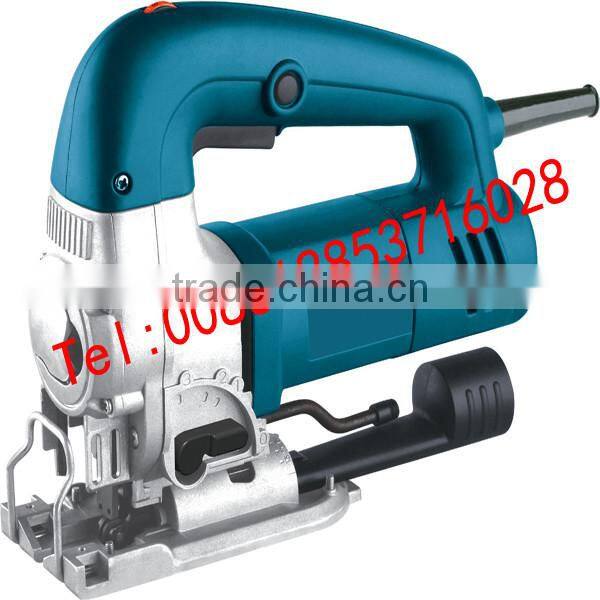

Jig Saw
Electric tamper

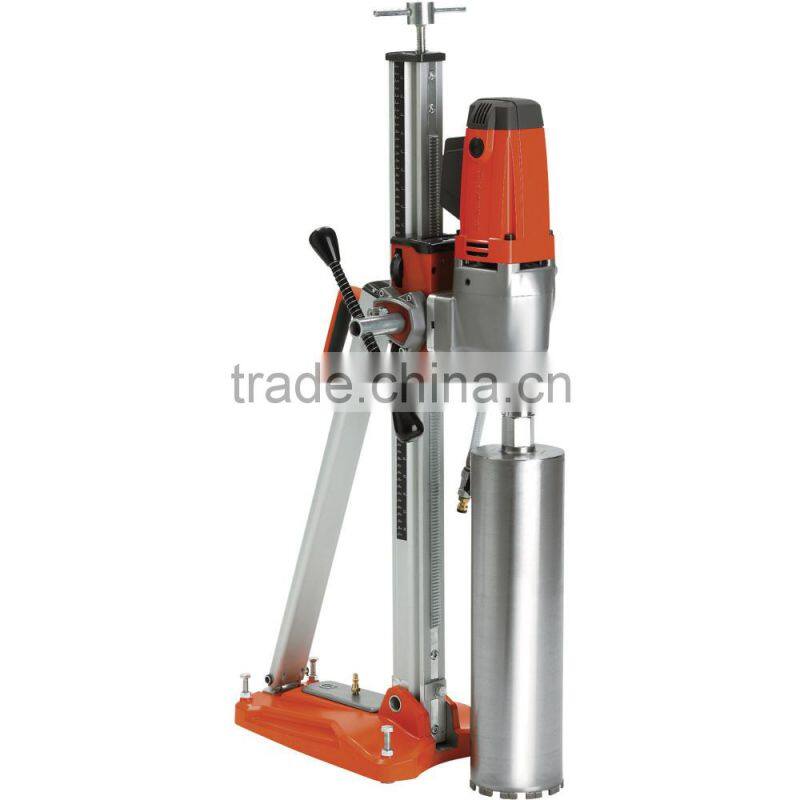

Core drill rig
