Hydraulic Tunnel Drilling Machine For Coal Mining Tunnel Use
- Qingdao Shanghai Shenzhen
- Credit Card
You May Like
-
High Quality Hydraulic Mining Tunnel Well Drilling Machine
-
Zdy3500 Rotary Tunnel Deep Well Drilling Machine
-
Best Price Mining Tunnel Drilling Machine Manufacturer
-
Hydraulic Tunnel Dril Ing Machine China
-
Hot Selling Full Hydraulic Tunnel Drilling Machine
-
Manufacturer Supply Fully Hydraulic Drive Underground Rock Mining Drilling Machine
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Other, pneumatic | Place of Origin | Shandong, China | |
| Brand Name | Hengwang | Model Number | ZDY-650 | |
| Usage | Coal | Voltage | 380V | |
| Power(W) | 15 kw | Dimension(L*W*H) | 1800*620*1300mm | |
| Weight | 1200kg | Certification | ISO | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Production Introduction

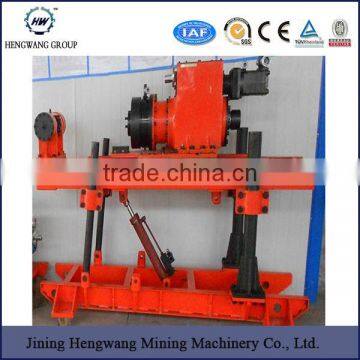

Hydraulic Tunnel Drilling Rig
ZDY series of drilling machines include three models (ZDY-660, ZDY-1200S and ZDY-2000S). They are mainly used for drilling holes for water exploring and injection, gas exploring and discharging, geological exploring, bolting on slope and other drilling works. It is available of all direction position (±90°) for in underground coal mines. Adopting entire hydraulic system, it consists of main frame, pump station and operational panel. With the split type structure in the main frame, it is easy to disassemble and transportation. It suits for different drilling requirements with using high-grade alloy, PDC drill bits , large diameter spiral drill rod and core drill bits.
Technology Parameters
NO. | Item | Unit | ZDY-650 | ZDY-750 | ZDY-1250 | ZDY-2300 |
1 | Drilling depth | m | 150 | 150 | 200 | 300 |
2 | Open Hole caliber | mm | 65,85,115 | 65,85,115 | 85,115 | 94,115,133 |
3 | End hole caliber | mm | 65,75 | 65,75 | 65,75 | 94 |
4 | Drill rope angle | mm | 42.50 | 42.50 | 50 | 63 |
5 | Drill holeangle | º | 0~90 | 0~90 | 0~90 | 0~90 |
6 | Drilling azimuth | º | 0~360 | 0~360 | 0~360 | 0~360 |
7 | Feeding stroke | mm | 850 | 850 | 850 | 850 |
8 | Motor Type |
| YBK2-160L-4 | YBK2-180M-4 | YBK2-180L-4 | YBK2-225S-4 |
9 | motor power | kW | 15 | 18.5 | 22 | 37 |
10 | Motor voltage | V | 380/660 | 380/660 | 380/660 | 380/660 |
13 | Weight | Kg | 1200 | 1400 | 1600 | 2200 |
Fingure Photos
Good Cooperation
Quality Certificate
Transaction history
Transport and Shipping
Any qurstion,please feel free to contact me any time.
Mobile/Whatsapp:+8613608913867
Skype:3261913414@
Tel: 0086-537-2885808
Fax: 0086-537-2585538
