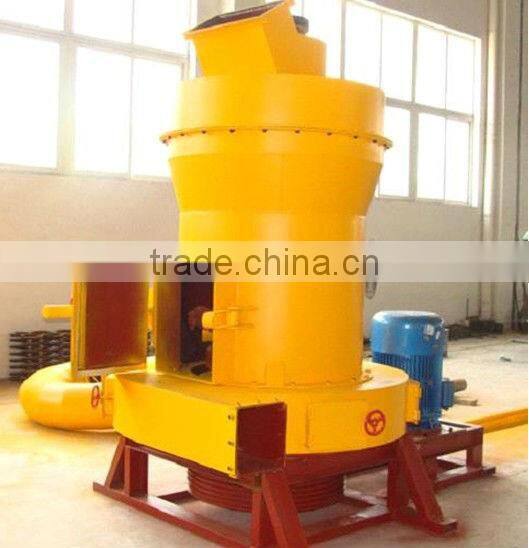

High Quality Low Consumption Raymond Roller Mill
- Shanghai/Qingdao
- T/T Credit Card
You May Like
-
Top Capacity Good Performance Raymond Bowl Mill
-
2015 Raymond Grinder With High Efficiency
-
Top Capacity Raymond Mill With Low Consumption
-
Low Consumption High Pressure Hanging Roller Mill With Advanced Technology
-
Less Investment Dolomite Raymond Mill With Advanced Technology
-
Inexpensive Raymond Grinder With High Quality
Product Details
| Condition | New | Type | Ball Mill | |
| Motor Type | AC Motor | Power(W) | 7.5-75 | |
| Place of Origin | Henan, China | Brand Name | Henan Kefan | |
| Model Number | 5R4119 | Dimension(L*W*H) | 9200*8000*9700mm | |
| Weight | 2.0-24 T | Certification | ISO9001:2008 | |
| Warranty | 24 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Quality Low Consumption Raymond Roller Mill
Introduction:
After many years of practice and improvement, its structure is getting perfect day by day.For low consumption, low investment, environment friendly , small occupation area, and more efficient than the traditional mill, it is widely used in the field of metallurgy, building materials, chemical industry and mining to process powder. The series is used in grinding the non-flammable and non-explosive stuff which has the Moh’s hardness below 7, humidity less than 6%, such as gypsum, talc, calcite, limestone, marble, feldspar, barite, dolomite, granite, kaolin, bentonite, bauxite, iron ore etc., the final products change from 613 micron to 44 micron. Through the function of separator and blower, it can meet different customers’ demand.
Structure of Raymond Mill:
1 The whole plant is a vertical structure of strong systematic characteristic, so it occupies small area. From crushing of raw material to grinding and packing is an independent production system.
2 Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach;
3 Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably,
4 Main parts of the whole plant are made from cast and steel of high quality. The technics is so subtly that insures the durability of whole plant,
5 The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.
Working Principle:
Firstly, raw material is crushed by jaw crusher to the size required, then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder, evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind. After this, the ground stuff are carried by the air from the blower into the separator for screening. The fine powers are blow into the cyclone collector and are poured out through the output-powder valve as the final products and the rough stuff after the screening will be recycled back into the grinding chamber for regrinding. The set’s airflow system is closely sealed up and circulated under condition of negative and positive pressure.
Mail technical parameters:
Model | 3R1410 | 3R1815 | 3R2615 | 3R2715 | 3R2716 |
Max feed size (mm) | 5-8 | 15 | 20 | 20 | 15-25 |
Product size(mm) | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 |
Capacity per manshift(t) | 1-10 | 1-15 | 2-25 | 3-30 | 3-30 |
Main shaft speed(r/min) | 280 | 200 | 165 | 165 | 165 |
Grinding ring ID(mm) | 405 | 550 | 780 | 830 | 830 |
Grinding roll dia.(mm) | 140 | 180 | 260 | 270 | 270 |
Grinding roll height(mm) | 100 | 150 | 150 | 150 | 160 |
Main engine power(kw) | Y 160M -6-7.5 | Y 180L -8-11 | Y225S-8-18.5 | Y 225M -8-18.5 | Y 225M -8-22 |
Blower motor(w) | Y132S-4-5.5 | Y 132M -4-7.5 | Y 160L -4-15 | Y 180M -4-18.5 | Y 180M -4-18.5 |
Split-phase motor(kw) | Y 190L -6-1.1 | Y 100L -6-1.5 | Y 112M -6-2.2 | Y 112M -6-2.2 | Y 112M -6-2.2 |
Overall dimension(mm) | 3400*2161*3246 | 4200*3900*4300 | 5970*4000*5000 | 5970*4000*5200 | 5970*4000*5200 |
Weight(Kg) | 2500 | 2950 | 3800 | 4000 | 4000 |
Model | 4R3016 | 3R4R3117 | 4R3216 | 5R3818 | 5R4119 |
Max feed size(mm) | 15-25 | 15-25 | 20 | 30 | 30 |
Product size(mm) | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 |
Capacity per manshift(t) | 3-36 | 3-36 | 3-38 | 3-50 | 6-66 |
Main shaft speed(r/min) | 152 | 152 | 130 | 108 | 103 |
Grinding ring ID(mm) | 880 | 910 | 970 | 1205 | 1280 |
Grinding roll dia.(mm) | 300 | 310 | 320 | 380 | 410 |
Grinding roll height(mm) | 160 | 170 | 160 | 180 | 190 |
Main engine power(kw) | Y 225M -8-30 | Y 250M -8-30 | Y225S-4-37 | Y280S-4-75 | Y280S-4-75 |
Blower motor(w) | Y 180L -4-30 | Y 200L -4-30 | Y 200L -4-30 | Y 225M -4-45 | Y 250M -4-55 |
Split-phase motor(kw) | Y 132M -4-4 | Y 132M -6-4 | YCT200-4A-5.5 | YCT200-4B-7.5 | YCT200-4B-7.5 |
Overall dimension(mm) | 7500*4500*7200 | 7500*4000*7200 | 9900*5800*9000 | 8000*7000*9800 | 8000*7850*9800 |
Weight(Kg) | 750 | 9500 | 14000 | 19300 | 26500 |
