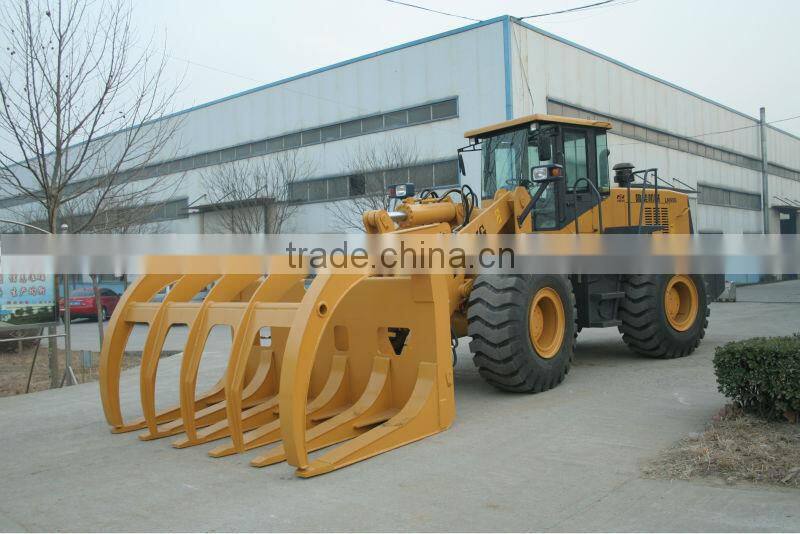

YN956 Grass Grapple Loader(3500kg+Cummins Engine+ZL50 Transmission)

Engine

Caterpillar Technology engine(made by Shanghai Diesel Company)

Model

C6121ZG10f

Performance standard

3T9901

Rated Power

162kW / 220HP

Net Power

154kW / 209HP

Rated Rotation(r/min)

2200

Fuel Consumption(g/kWh)

240

Smoke intensity(FSU)

2

Torque check rotation(r/min)

1400

Test torque(Nm)

840

Torque DRR(%)

20

Fuel Consumption(g/kWh)

225

Smoke intensity

2.5

Machine oil consumption(g/kWh)

0.7

Max deadhead rotation (r/min)

2360

Idle speed (r/min)

750

Oil supply timing(BTDC)

21°

Max altitude height (M)

2250

The first heavy repair period(H)

8000

Weight (kg)

960

Hydraulic working system type

Twin pump merging

Pump

CBG3100

Multiple directional control valve

DF32.2

Type

Coaxes flow-amplified,

pressure-compensated

steering angle(each direction)

35°±1

Min turning radius(outside of rear wheel )

6288mm

Torque convertor

Type

Three-element, single stage

Model

YJ375

Torque ratio

3.357

Cooling system

Pressure oil circulated

Inlet oil pressure

600-700

Outlet oil pressure

150-200

Transmission

Type

Full power shift, countershaft type

Shift

Forward 4 Reverse 4

Highest speed

38km/h

Transmission
ratio

Forward I

3.488

Forward II

1.806

Forward III

1.126

Forward IV

0.583

Reverse I

3.488

Reverse II

1.806

Model of Transmission pump

CBG2040

Working pressure

1.5-1.8Mpa

Main Drive

Type

Spiral bevel gear, single stage

Final drive

Type

Single stage, planetary shift

Driving axle and
tyre

Type

Driving axle and tyre

Tyre specification

23.5 x 25

Tyre pressure

Front Wheel

343kpa

Rear Wheel

304kpa

Brake system

Service brake

Air over hydraulic disc brake on

4 wheels

Parking brake

Air off control inner expand hoof
