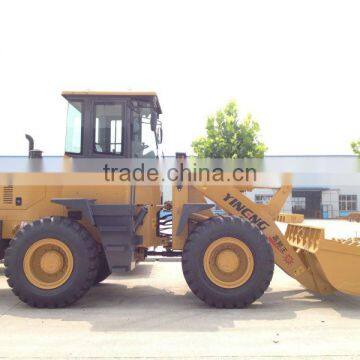

3 tons Wheel loader(1.7 M3, 92KW)

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	YINENG
Model Number	YN935	Place of Origin	Shandong, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	699024203000MM	Rated Load	3000KG
Certification	ISO;GOST;CE	Warranty	1 YEAR
After-sales Service Provided	Overseas service center available

3T Wheel loader YN935;Bucket 1.7m3; Rated load 3000kg; Dumping height 3000mm; Operating weight 10200kg;weichai deutz Engine;

1- FEATURES AND OPTIONALS:

FEATURES:

The most cost-effective

*Deutz high-power engine, large power storage.

*Torque-converter and gear box, the detached structure makes easy maintenance.

*Main articulated points take sealed, lubricated, double dust-proof layers, which owns good durability.

*The strengthened bucket attached with peripheral tooth is more wear-resisting and reliable.

*Doubly sealed hydraulic pipeline joints with 24° awl and O ring of international standard, avoided the oil leakage effectively;

*Air over hydraulic disks on four wheel brakes.

*Working device with automatically levelling ability at high position.

*Integral, luxury instrument board.

*New, luxury cabin.

 OPTIONALS:

• Air Condition,

• Joystick

. • Quick Hitch (Fork)

• ROPS Cab.

*CE Approved.

*Obtained the certificate of ISO9001:2000;

*Manufacturing license number: TS2510025-2009.

2-STANDARD SPECIFICATIONS:

Items	Specifications	Items	Specifications
Rated capacity	1.7 m3	Transmission system	Gear box separated from torque-converter
Rated weight	3000kg	Torque-converter model	YJ315x
Operating weight	9800kg	Type	Three-element, single stage
Automatic leveling ability	Yes	Transmission box type	Full power shift, countershaft type
Static tilting load	68.8KN	Number of gear shift	4 forward and 2 reverse
Max breakout force	120KN	Max travel speed	36 km/h
Max drawing force	90KN	Front and rear axle
Max grade ability	30°	Main reducer type	Single stage reduction
Max.dump height	3050mm	Final reducer	Single stage planetary
Max.dump reach	1320mm	Tire
Min.ground clearance	410mm	Size	17.5-25
Wheel base	2600mm	Front wheel pressure	343kpa
Tread	1800mm	Rear wheel pressure	294kpa
Height with bucket at full raise	4870mm	Steering system	Fully hydraulic steering
Lifting time	5.5s(full load)	steering angle	35°±1(each direction)
Total cycle time	9.67s(full load)	Min turning radius	5160mm
Overall dimensions (l×w×h) mm	6990×2420×3000	Hydraulic system
Engine	Deutz Engine	Distribution valve	DF25.2C
Model	TD226B	Gear pump	GBGV2100
Type	In line, water cooled, four stroke, dir.inject	Brake system
Rated power	92KW	Service brake	Air assisted oil disc type four-wheel brake
Rated speed	2200r/min	Parking brake	Soft axis, cable control
Min oil consumption	235g/kw.h	Fuel tank capacity	125L
