High Output Shredder Heavy Duty Paper Shredder
- Guangzhou
You May Like
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | Chengyue | Model Number | TSS-600, 1200 | |
| Use | Other, all of plastic | Plastic Type | Other, all of plastic | |
| Shaft Design | Double | Power | 55 | |
| Capacity | 3000KG/h | Voltage | 220V/200V/380V | |
| Power(W) | 2200*2 | Dimension(L*W*H) | 1550*1200*2000MM | |
| Weight | 3200kg, 3200KG | Certification | CE, CE | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Welcome to Chengyue Machinery!
We could provide you various machine: dryer, industrial machine, washer extractor, automatic baler/metal baler/vertical baler/Tub-type baler, single shaft shrdder/double shaft shredder, plastic crusher, rubber cutter, foam dissolution machine, dewatering machine, horizontal centrifugal dryer, Heating oven, plastic paper separator, lifting machine, Gummed paper washer, washing line.
Product Description

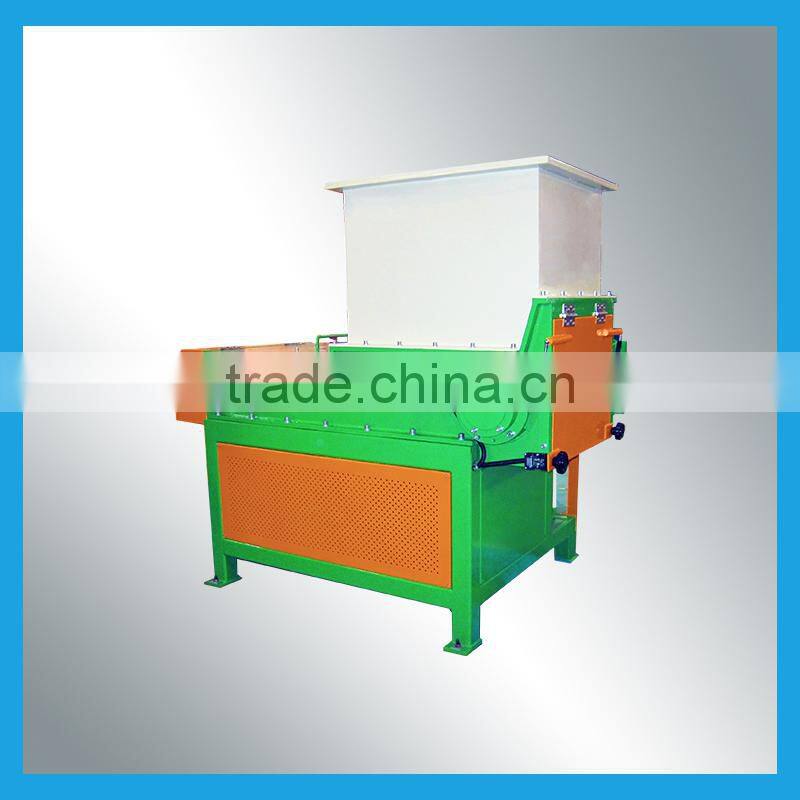

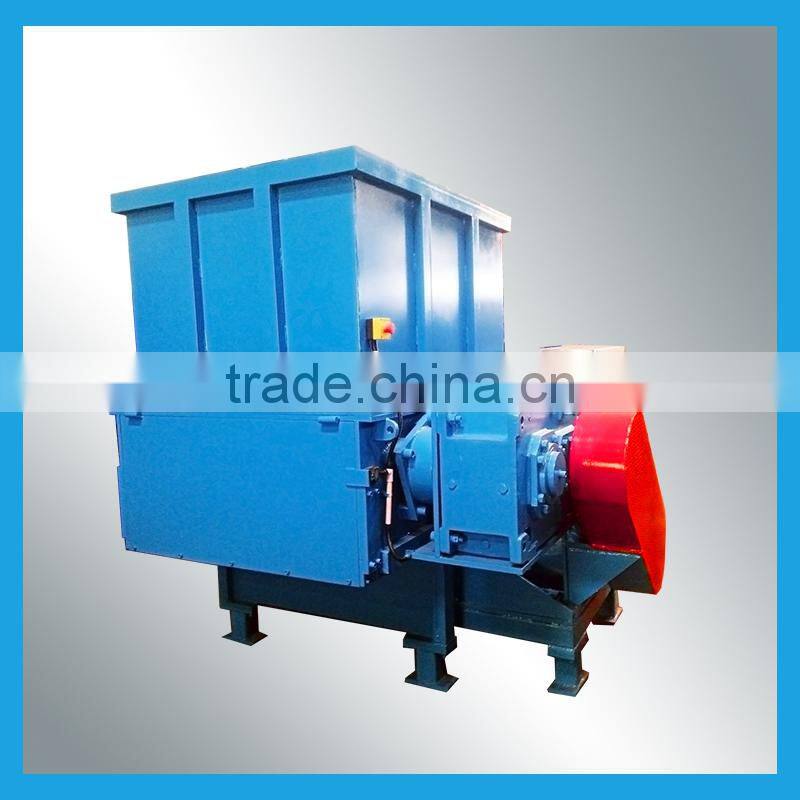

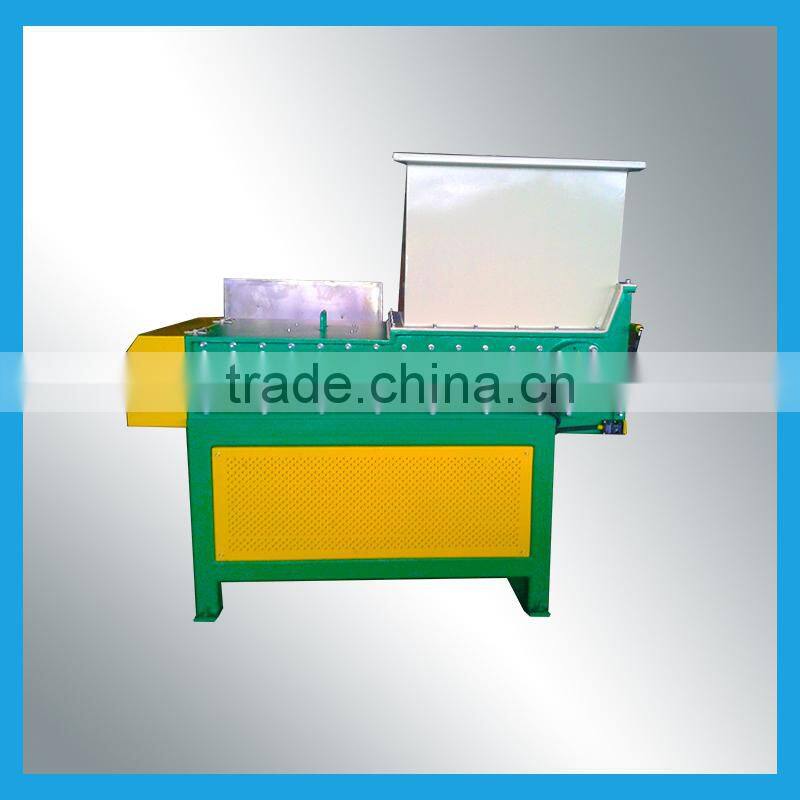

The Single Shaft Shredder is widely applicable to shred solid materials which are hard to shred, like plastic, rubber, fiber, hardboard, wood, electronic components, cable and so on. If you need the machine to shred ultra hard plastic such as nylon, ABS and PC, please mark your detailed specification to us.
Technical parameters:
model
| S-600 I | S-600 II | S-800 I | S-800 II |
A(mm) | 1800 | 2500 | 2500 | 2850 |
B(mm) | 1360 | 1500 | 1700 | 1750 |
C(mm) | 810 | 1300 | 1300 | 1400 |
D(mm) | 600 | 680 | 880 | 800 |
E(mm) | 380 | 500 | 500 | 500 |
H(mm) | 1600 | 1700 | 1700 | 1900 |
Oil cylinder stroke(mm) | 500 | 750 | 750 | 900 |
Rotor diameter(mm) | Φ224.7 | Φ300 | Φ300 | Φ400 |
Spindle speed(r/min) | 84.7 | 83.7 | 83.7 | 73.7 |
Mesh size(mm) | Φ25(optional) | Φ40(optional) | Φ40(optional) | Φ40(optional) |
Rotational blade(pcs) | 28+4 | 26+4 | 42+4 | 42+4 |
Fixed blade(pcs) | 2 | 4 | 4 | 2 |
Motor(kw) | 18.5 | 22 | 30 | 37 |
Hydraulic motor(kw) | 1.5 | 1.5 | 1.5 | 1.5 |
Weight(kg) | 1400 | 1550 | 1950 | 13500 |
Model | S-1000 | S-1200 | S-1500 | S-4000 |
A(mm) | 2850 | 2850 | 3300 | 4100 |
B(mm) | 2000 | 2600 | 2900 | 6800 |
C(mm) | 1400 | 1400 | 1450 | 1550 |
D(mm) | 1000 | 1200 | 1500 | 4000 |
E(mm) | 500 | 500 | 930 | 1000 |
H(mm) | 1900 | 1900 | 2750 | 3000 |
Oil cylinder stroke(mm) | 850 | 900 | 950 | 1200 |
Rotor diameter(mm) | Φ400 | Φ400 | Φ468.8 | Φ660 |
Spindle speed(r/min) | 73.7 | 73.7 | 83.3 | 75 |
Mesh size(mm) | Φ40(optional) | Φ40(optional) | Φ40(optional) | Φ40(optional) |
Rotational blade(pcs) | 54+4 | 66+4 | 129 | 363 |
Fixed blade(pcs) | 2 | 4 | 6 | 8 |
Motor(kw) | 45 | 55 | 90 | 132+132/220+220 |
Hydraulic motor(kw) | 1.5 | 2.2 | 5.5 | 7.5 |
Weight(kg) | 4000 | 5000 | 8000 | 17500 |

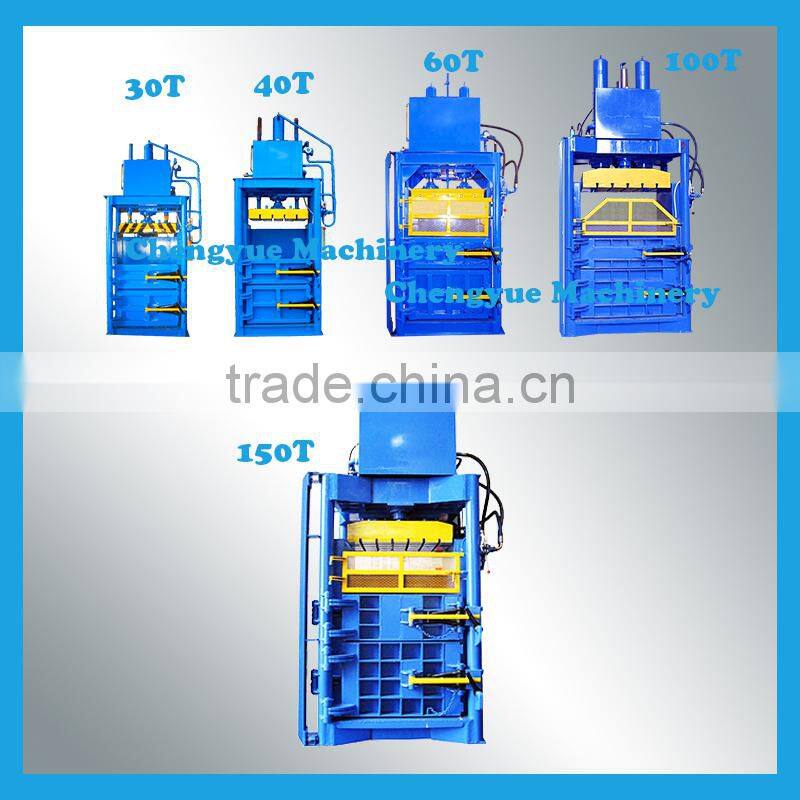

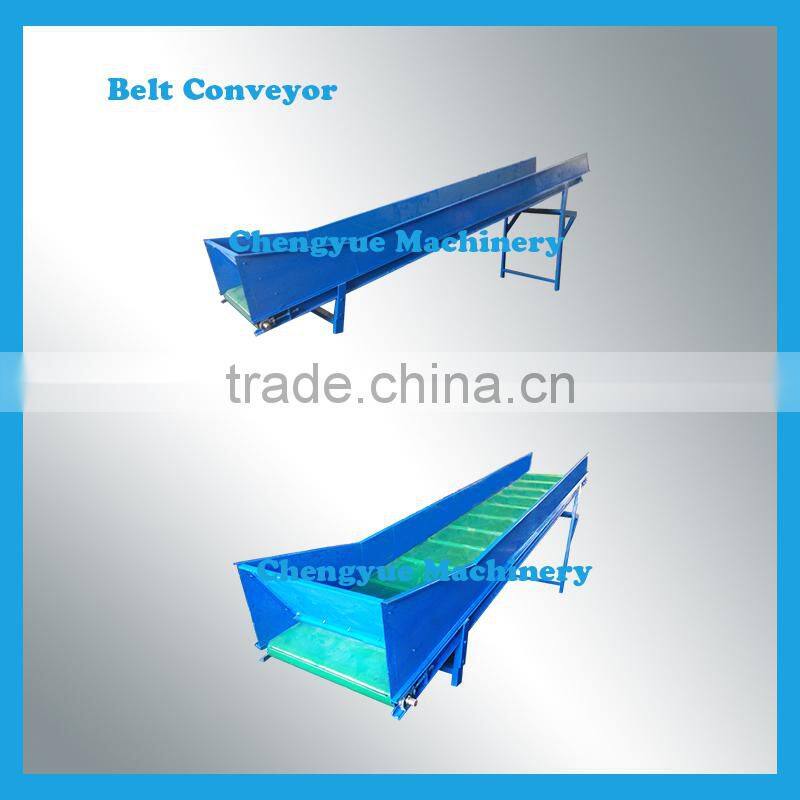

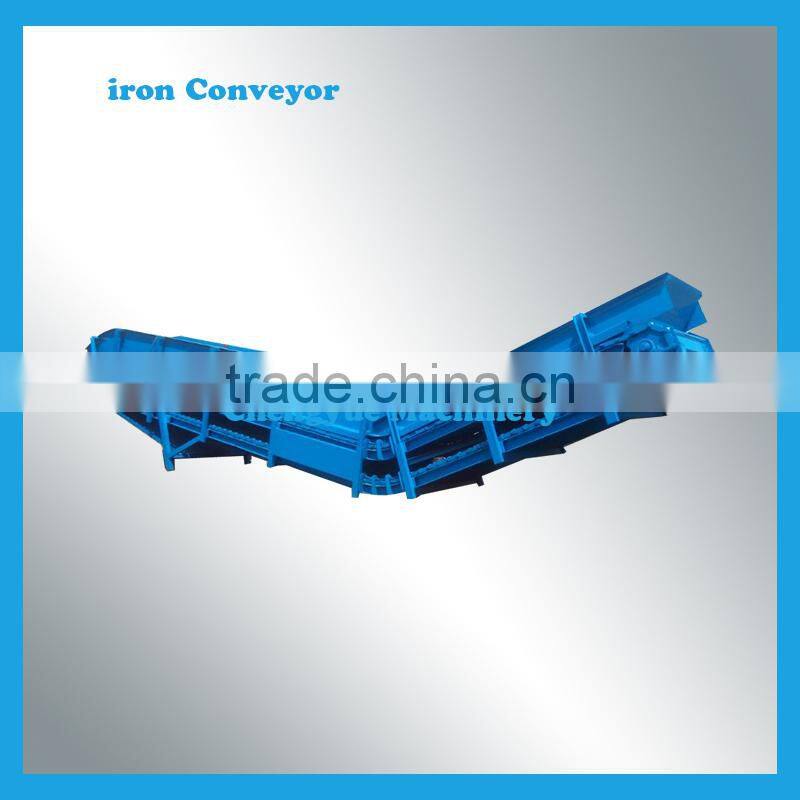

Our other product

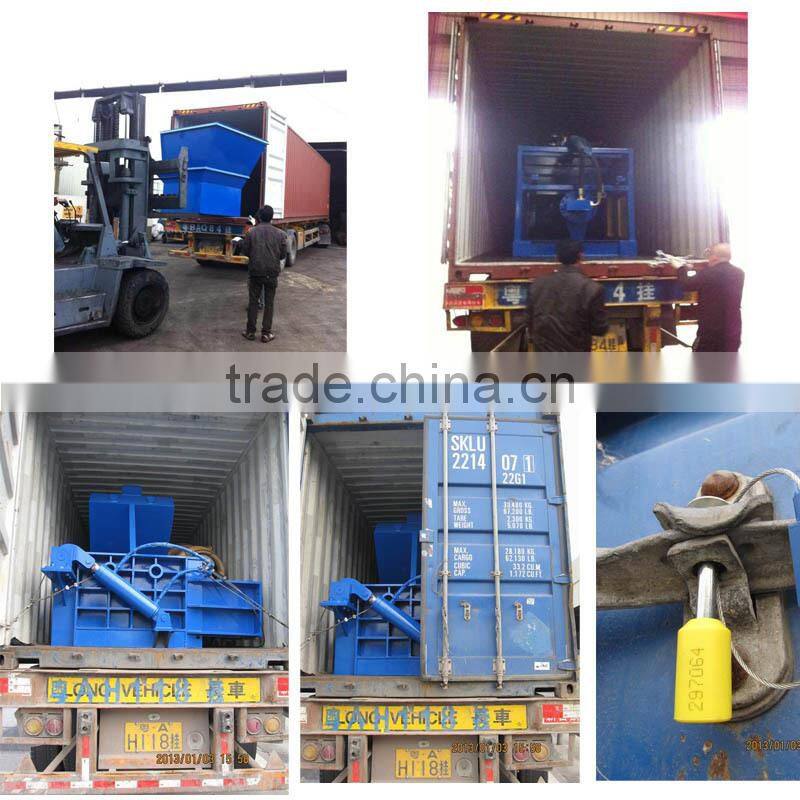

Packaging
1.Outside package:Sandard export wooden cases
2.Inner package:Stretch film
Our Services
l Any inquiries will be replied within 24 hours
l Professional manufacturer
l Welcome to visit our website: /
l OEM/ODM avaliable
Guarantee And After-sale Sevice
l One year guarantee for whole machine
l 24 hours technical support by e-mail
l Calling or door-to door service
l Use-friendly English software,user manual and detailed Videos/CD

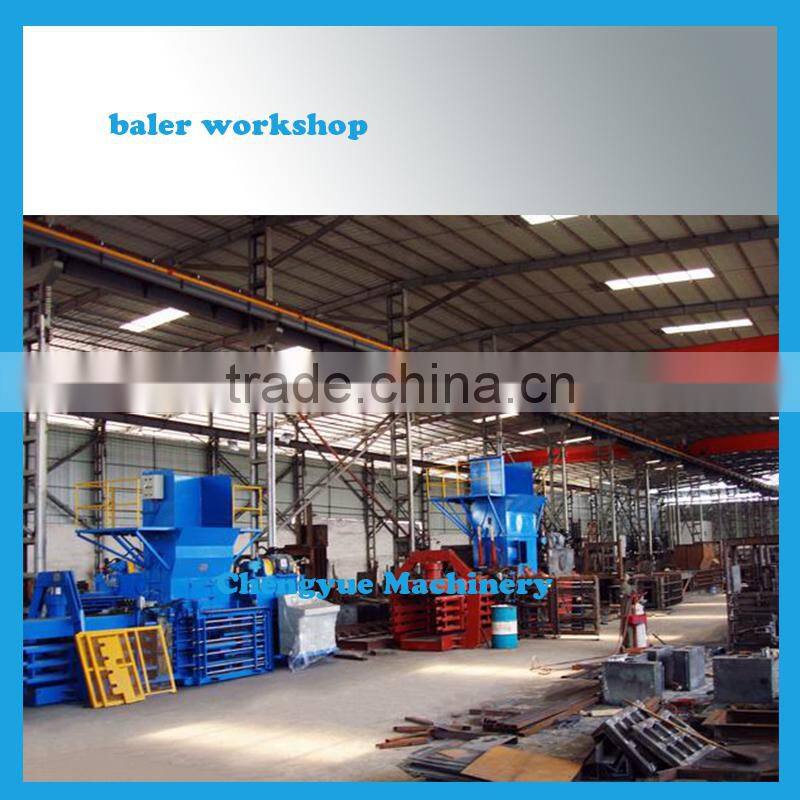

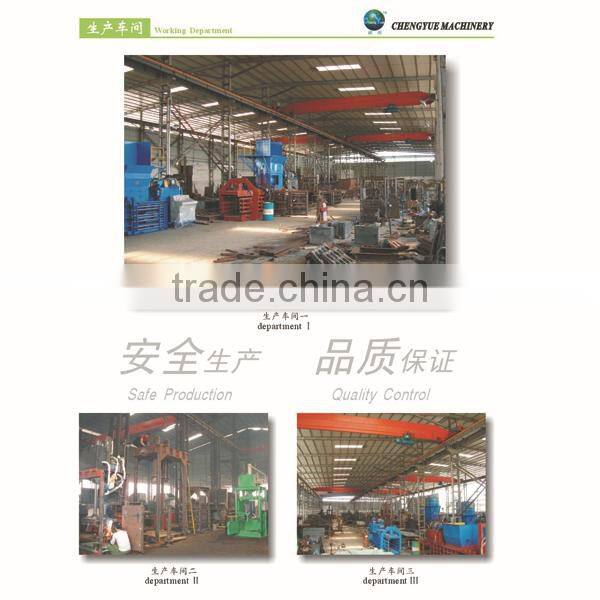

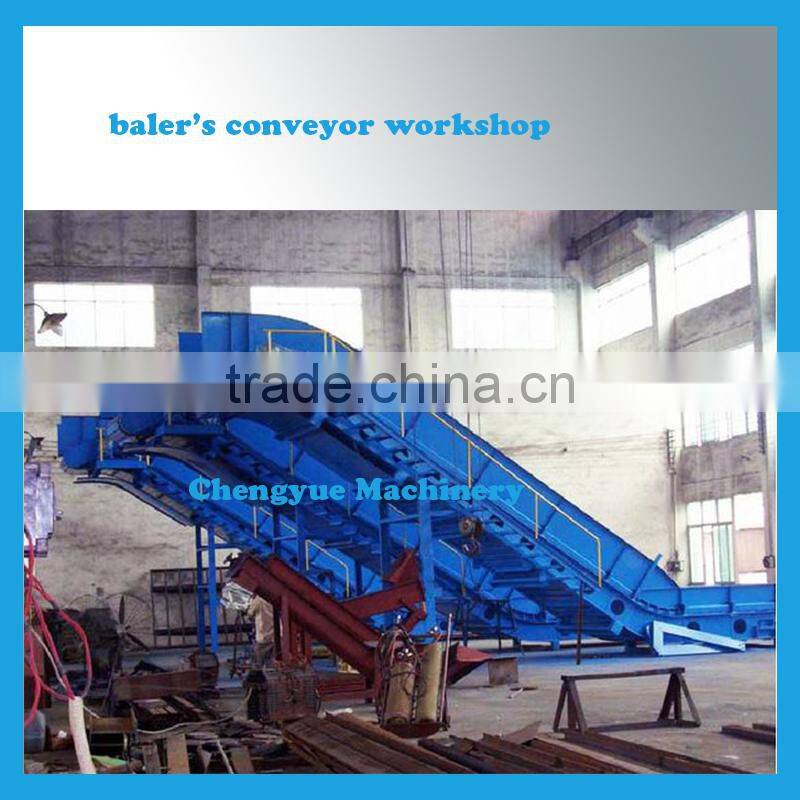

Company Information
Why choose Chengyue?
Guangzhou Panyu Shawan Chengyue Machinery Factory is the leading manufacturer of recycling machines since 1995 with the advanced technology and excellent equipments. We have developed many kinds of recycling machines, including powerful press baling machine, crusher, plastic extractor, dewatering machine, dissolution foam machine and so on. These products are not only with the great appearance and perfect system functions, but also easy to operation and low power consumption. Due to the persistent effort of our teams and the support of our customers, our factory will strengthen steadily. In the meantime, we have won a great reputation from our customers depend on our firm determination, best quality and excellent after-service. And our products are very popular not only in China, but also in Japan, Australia, Mexico, America, Canada, Indonesia, Kuwait and so on. Believe Chengyue, we will progress and make a brighter future together.
FAQ
Q1: Are you trading company?
A1: NO! we are a factory with 19 years experience.
Q2: How can I get a quotation:
A2: Pls tell us the machine you need, quantity, or other requirements.
Q3: After I buy the machine, what can I do if I don’t know some of the function?
A3: We will show you how to use the machine perfectly. Technical support and spare parts supply is available.
Q4: What if the machine troubled after I buy it?
A4: We provide completely after sales service, and our engineer can go your place to fits it.
Q5: How can I contact you?
A5: Skype: Sirilee5 Whatsapp: +86 139 2227 5313
Machine is Perfect , please do not hesitate to contact
me.
