Pellet Shredder Grass Shredder Tyre Shredder Used
- Guangzhou
You May Like
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | Chengyue | Model Number | TSS-1200, 1200 | |
| Use | Other, all of plastic | Plastic Type | Other, all of plastic | |
| Shaft Design | Double | Power | 55 | |
| Capacity | 3000KG/h | Voltage | 220V/200V/380V | |
| Power(W) | 2200*2 | Dimension(L*W*H) | 1550*1200*2000MM | |
| Weight | 3200kg, 3200KG | Certification | CE, CE | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Product Description

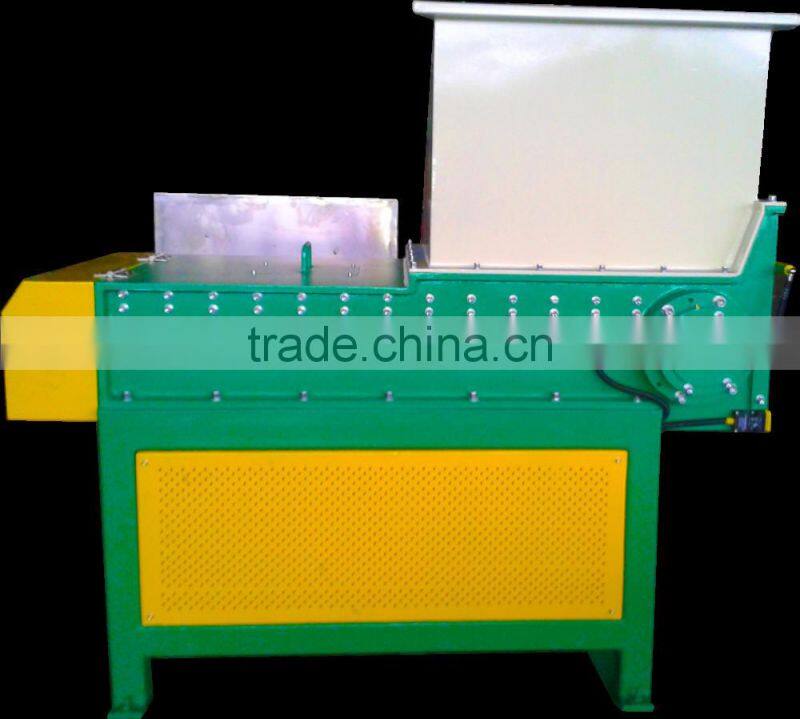

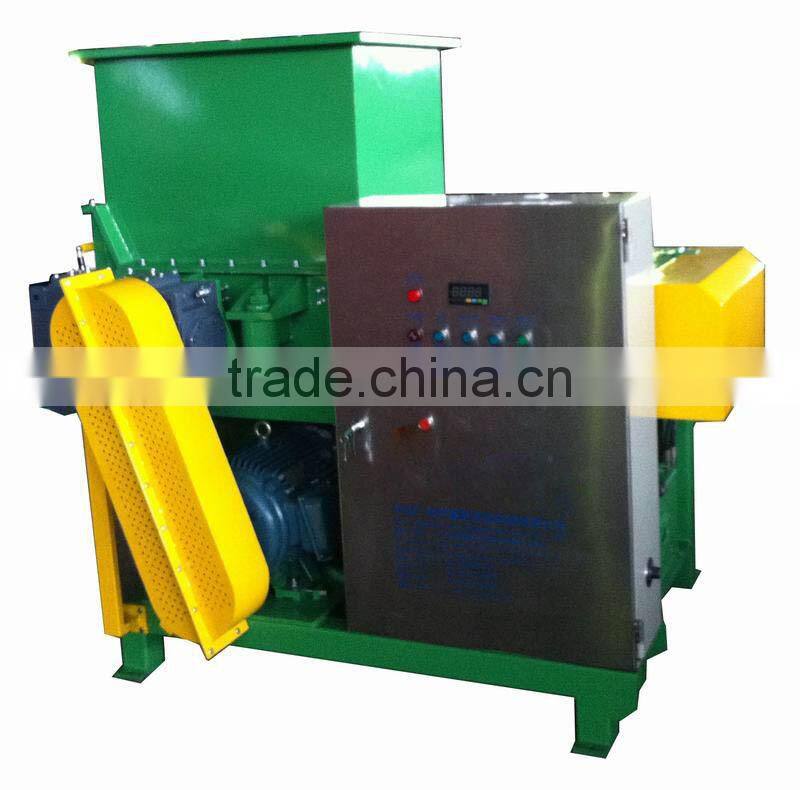

The Single Shaft Shredder is widely applicable to shred solid materials which are hard to shred, like plastic, rubber, fiber, hardboard, wood, electronic components, cable and so on. If you need the machine to shred ultra hard plastic such as nylon, ABS and PC, please mark your detailed specification to us.
Technical parameters:
| S-600 I | S-600 II | S-800 I | S-800 II | ||||
A(mm) | 1800 | 2500 | 2500 | 2850 | ||||
B(mm) | 1360 | 1500 | 1700 | 1750 | ||||
C(mm) | 810 | 1300 | 1300 | 1400 | ||||
D(mm) | 600 | 680 | 880 | 800 | ||||
E(mm) | 380 | 500 | 500 | 500 | ||||
H(mm) | 1600 | 1700 | 1700 | 1900 | ||||
Oil cylinder stroke(mm) | 500 | 750 | 750 | 900 | ||||
Rotor diameter(mm) | Φ224.7 | Φ300 | Φ300 | Φ400 | ||||
Spindle speed(r/min) | 84.7 | 83.7 | 83.7 | 73.7 | ||||
Mesh size(mm) | Φ25(optional) | Φ40(optional) | Φ40(optional) | Φ40(optional) | ||||
Rotational blade(pcs) | 28+4 | 26+4 | 42+4 | 42+4 | ||||
Fixed blade(pcs) | 2 | 4 | 4 | 2 | ||||
Motor(kw) | 18.5 | 22 | 30 | 37 | ||||
Hydraulic motor(kw) | 1.5 | 1.5 | 1.5 | 1.5 | ||||
Weight(kg) | 1400 | 1550 | 1950 | 13500 |
| S-1000 | S-1200 | S-1500 | S-4000 | ||||
A(mm) | 2850 | 2850 | 3300 | 4100 | ||||
B(mm) | 2000 | 2600 | 2900 | 6800 | ||||
C(mm) | 1400 | 1400 | 1450 | 1550 | ||||
D(mm) | 1000 | 1200 | 1500 | 4000 | ||||
E(mm) | 500 | 500 | 930 | 1000 | ||||
H(mm) | 1900 | 1900 | 2750 | 3000 | ||||
Oil cylinder stroke(mm) | 850 | 900 | 950 | 1200 | ||||
Rotor diameter(mm) | Φ400 | Φ400 | Φ468.8 | Φ660 | ||||
Spindle speed(r/min) | 73.7 | 73.7 | 83.3 | 75 | ||||
Mesh size(mm) | Φ40(optional) | Φ40(optional) | Φ40(optional) | Φ40(optional) | ||||
Rotational blade(pcs) | 54+4 | 66+4 | 129 | 363 | ||||
Fixed blade(pcs) | 2 | 4 | 6 | 8 | ||||
Motor(kw) | 45 | 55 | 90 | 132+132/220+220 | ||||
Hydraulic motor(kw) | 1.5 | 2.2 | 5.5 | 7.5 | ||||
Weight(kg) | 4000 | 5000 | 8000 | 17500 |
Packaging
1.Outside package:Sandard export wooden cases
2.Inner package:Stretch film
Our Services
Company Information
Why choose Chengyue?
Guangzhou Panyu Shawan Chengyue Machinery Factory is the leading manufacturer of recycling machines since 1995 with the advanced technology and excellent equipments. We have developed many kinds of recycling machines, including powerful press baling machine, crusher, plastic extractor, dewatering machine, dissolution foam machine and so on. These products are not only with the great appearance and perfect system functions, but also easy to operation and low power consumption. Due to the persistent effort of our teams and the support of our customers, our factory will strengthen steadily. In the meantime, we have won a great reputation from our customers depend on our firm determination, best quality and excellent after-service. And our products are very popular not only in China, but also in Japan, Australia, Mexico, America, Canada, Indonesia, Kuwait and so on. Believe Chengyue, we will progress and make a brighter future together.
Machine is Perfect , please do not hesitate to contact
me.
Contact Us
- Guangzhou Panyang Machinery Factory
- Contact nameDanna Chan Chat Now
- Phone86-020-34835398
- AddressNo. 1111, Shiliang Road, Shawan Panyu,, Guangzhou, Guangdong
