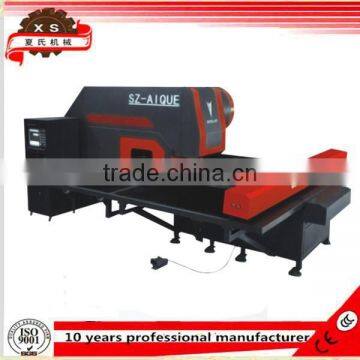

CNC turret punch SKC-1225 Series

Imported precision screw

drive,floating pneumatic

 clamp.

Movable table drawer,the bottom

 with rails,easy sliding,Easy loading

and unloading the mold.

Automatic lubrication of electric

 supply system.

International Universal 85 Series

 thick turret tooling.

Imported materials brush table.

LCD time display processing track

and control panel.

self-developed software can also perform

 manual CNC fast,slow moving and incremental

 movement.

breakpoint continue processing and clearing

 functions.

absolute coordinates and relative coordinates

 mixed programming.

CAD graphics are automatically converted to

 processing code.

screw backlash software compensation.

Control Punch closed and opened with analog

 processing functions.

call,modify,delete,insert other editing functions.

Working time display and workpiece quantity

 displayed.

Dry run self-diagnostics,error program display.

overcurrent,overvoltage,overheating,wrong phase

and overload protection,improved detection alarm

 function.

Name

Unit

Name

Unit

Name

Unit

Name

Unit

Punch force

200/300

Number of

controlled axes

3

Bed structure

C-type (Type)

Power

supply

380V/50HZ

Processing

sheet size

1250*2500

Turntable speed

30

Precision screw

C7

Total motor

power

9

traveling speed

40

Number of

stations

18/24/32

Screw lead

40/40

Machine

weight

8/10

Processing

accuracy

±0.1

Gas clip

positioning

Origin

positioning a

Stamping

frequency

180

(Adjustable)

Machine

dimensions

4700*3600

*2500

Number of stations

Molds (sets)

A

B

C

D

18 station

9

6

2

1

24 station

12

8

2

2

32 station

18

10

2

2
