factory promotion cnc machining center for making mould KX850C

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port guangzhou

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Gantry
Place of Origin	Shandong, China	Model Number	kx850c
Voltage	380V/50Hz	Power(W)	13.6kw
Dimension(LWH)	2415x2500x2580mm	Weight	6000kg
Certification	ISO9001	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

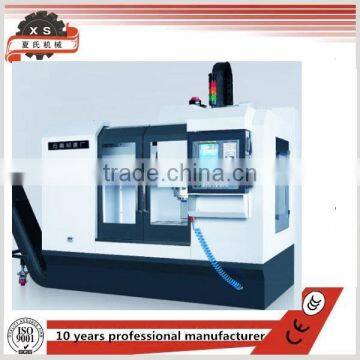

KX850C Machining center

Mechanical and electrical integration structure, the overall layout is compact and reasonable, covers an area of small, easy installation and maintenance ,Single column equipped with high speed spindle to achieve third axis movement, strong tool cooling and chip removal function, reliable personal and equipment safety measures. The machine adopts closed protective structure, which is beneficial to the safe production and reduce the pollution to the working environment.

item		unit	specification	mark
travel	X axis x Y axis x Z axis	mm	800x500x500
travel	spindle head to the worktable	mm	130~630
worktable	length×width	mm	1050x500
worktable	Max load of worktable	kg	600
T slot	number-T slot length x center distance	mm	3-18x150
spindle	Taper groove type		BT40
	Work speed	r/min	50~8000
	Driving form		· belt driving
Main motor	Rated power	kW	7.5/11
Feed speed	X axis	m/min	22
	Y axis	m/min	22
	Z axis	m/min	18
overall	length	mm	2415
	width	mm	2500
	high	mm	2580
weight	Net weight	kg	5000
weight	Gross weight	kg	6000
power	Voltage/frequency	V/Hz	AC380/50
	scope range of the fluctuation of voltage		-15~+10%
	Total power	kW	13.6
