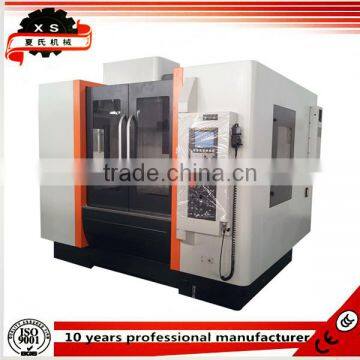

Professional Vertical CNC Engraving and Milling Machine

FOB Price

USD $100 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port ShenZhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Engraving Area	1300*900mm
Engraving Speed	600-24000r/min	CNC or Not	Yes
Cooling Mode	Water Cooling	Applicable Material	Metal
Graphic Format Supported	AI	Place of Origin	Guangxi, China
Brand Name	XIASHI	Model Number	DX5050
Dimension(LWH)	2000x1800x2100mm	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

cnc engraving machine small
Taiwan Three axes ball screw
Japan three axes servo motor
Imported linear way

cnc engraving machine small -Features:

1.L.M. guide-ways for all axes
2.Pre-Loaded ball screws for all axes
3.Centralized lubrication system
4.AC Servo Drive for all axes
5.Water cooled spindle
6.Electric hand control wheel
7.Air blast for spindle taper cleaning
8.Fully covered machine
9.Telescopic covers for all 3 axes
10.Auto & Manual coolant system

Optional:

1.Plug-in 4th and 5th axis
2.Chip Conveyor
3.Flood Coolant System
4.Voltage Stabilizer
5.Machine Lamp

cnc engraving machine small -Specification

Model	5050	6060/6080	8080/80100	80120
Working Table size (mm)	500×500	600×600-600×800	800×800-800×1000	800×1200
Stroke(X/Y/Z)(mm)	500×500×240	600×600×300-600×800×300	800×800×300-800×1000×300	800×1200×300
Max.feeding speed	8000	8000	8000	10000
Max.cutting speed	6000	6000	6000	8000
Accuracy of couple knives	0.002(Automatic)
Positioning Accuracy (mm)	0.01/300	0.01/300	0.01/300	0.01/300
Duplicate positioning Accuracy (mm)	0.005	0.005	0.005	0.005
X/Y verticality	0.015/300	0.015/300	0.015/300	0.015/300
Diatance between working table and Main spindle(mm)	60-300	150-450	20-420	80-380
type groove size(mm)	5-12×100	5-14×150	5-14×150	5-14×250
Gantry height(mm)	400	500	520	560
Gantry across height(mm)	300	450	420	380
Gantry width(mm)	600	700	900	900
Max. load on table(kg)	200	300/400	500	600
Spindle speed(r/min)	600-24000	600-18000	600-18000/15000	600/15000
Main motor power(kw)	3.2	4/5.5	5.5/7.5	7.5
Weight(kg)	2500	3000	3700	4200
clamping chuck	ER20	ER25/32	ER32/40/BT30	ER32/40/BT30
System grade servo	LNC/ Syntec/ Fagor-Yaskawa /Panasonic
Battery request(kva)	10	13	15	16
Dimension(mm)	2000×1800×2100	2400×2200×2300	2800×2500×2500	3000×2600×2500
