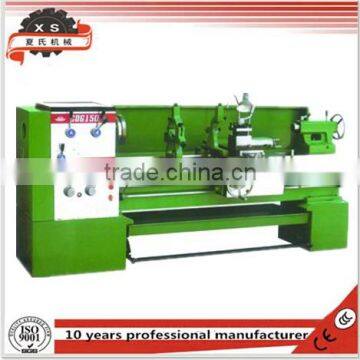

horizontal engine lathe machine CD6150
Negotiable
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangxi, China | Brand Name | Xiashi | |
| Model Number | CD6150 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
| Model | CD6150 CD6250 | CD6163 CD6263 |
| Max.distance of between centers | 1000mm 1500mm 2000mm | 1000mm 1500mm 2000mm |
| Max.swing over bed | 500mm | 630mm |
| Max.swing over tool-post | 280mm | 410mm |
| Max.swing over gap | 750mm | 880mm |
| Bore of spindle | φ85mm | φ85mm |
| Effective length of gap | 240mm | 240mm |
| Taper of bore in spindle | 1:20 | 1:20 |
| Number and range of spindle speeds | 12/21~1500rpm | 12/21~1300rpm |
| Number of spindle cross/longitudinal feeds | 138 | 138 |
| Range of spindle longitudinal feeds | 0.04~2.23mm/r | 0.04~2.23mm/r |
| Range of spindle cross feeds | 0.02~1.12mm/r | 0.02~1.12mm/r |
| Metric thread number/pitches range | 32/0.9~40mm | 32/0.9~40mm |
| withworth thread number/pitches range | 32/40~1t.p.i | 32/40~1t.p.i |
| Module thread number/pitches range | 24/0.45~10mm | 24/0.45~10mm |
| Diametral thread number/pitches range | 30/DP 80~1.75 | 30/DP 80~1.75 |
| Max.travel of cross tool-post | 340mm | 340mm |
| Max.travel of upper tool-post | 150mm | 150mm |
| Tool post swivelling tool-post | ±45° | ±45° |
| Power of apron rapid-travelled motor | 250w | 250w |
| Speed of carriage rapid-travelled motor | 4000mm/min | 4000mm/min |
| Power of main motor | 7.5kw | 7.5kw |
| Power of cool pump | 90w | 90w |
