C type Single-column hydraulic press machine YQ41-60T

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port shenzhen
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Power Source	Hydraulic	Model Number	YQ41-60T
Voltage	380V	Power(W)	5.5KW
Certification	CE	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.hydraulic press

petitive price

3.good performance

4.easy to operate

5.structural reliability

Appliance field

This series hydraulic press mainly applies to the proofread,assemble of axle component and section bar,the bending , impressing of the panel component ,The stretch plastic products of simple component , and the use of other line , like

Machinery tool, combustion engine , spinning , axle , bearing, washing machine , automobile motor, air conditioner motor, electrical equipment ,defense industry enterprise and foreign-funded enterprises assemble production line .

Features

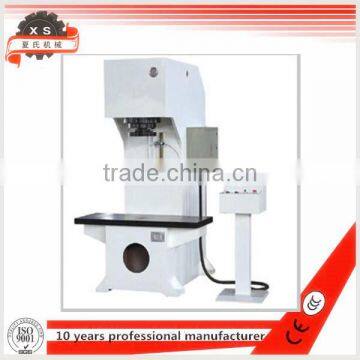

Fuselage and the single column hydraulic press of company's production are C type single arm type structures ,Itadopts the whole CO2 welding of steel plate, and passes through tempering ageing treatment after welding, Ensure that fuselage never warps. Hydraulic system is located in fuselage , outside type is beautiful, Easy to Operate may expand wide working scope , it Uses 3 surfaces the space extended hydraulic

Technical parameters

Specification		YQ41-20T	YQ41-40T	YQ41-60T	YQ41-100T	YQ41-200T	YQ41-315T	YQ41-500T
Nominal pressure(KN)		200	400	600	1000	2000	3150	5000
Working pressure of liquid(mpa)		20	20	30	28	28	28	25
Throat depth(mm)		200	220	240	280	300	360	500
Stroke(mm)		240	260	260	300	360	600	600
Working speed(mm/s)		18	15	12	18	10	18	30
Return speed(mm/s)		25	22	20	30	20	40	60
Pressure head to the table the maximum distance		500	550	700	800	800	1000	1000
Dimension of table (mm)	front back	400	400	450	500	600	800	1000
	left right	500	500	600	700	600	1000	1200
Motor power(kw)		2.2	3	5.5	7.5	7.5	15	30

Detailed pictures for your reference

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
