Spiral Duct Former
US$ 10,000 - 55,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, Pipe forming machine | |
| Pipe Material | Carbon Steel | Application | Other, Ventilation air duct | |
| Production Capacity | 35m/min | Place of Origin | Jiangsu, China | |
| Brand Name | BOBO | Model Number | BTF series | |
| Voltage | 380V or Customized | Power(W) | 15KW | |
| Dimension(L*W*H) | 3500X2800X2600mm | Weight | 2500KG | |
| Certification | CE, ISO | Warranty | ONE YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Spiral duct former1- tubeformer
2- air duct machine
3- duct forming machine
4- spiral pipe machine

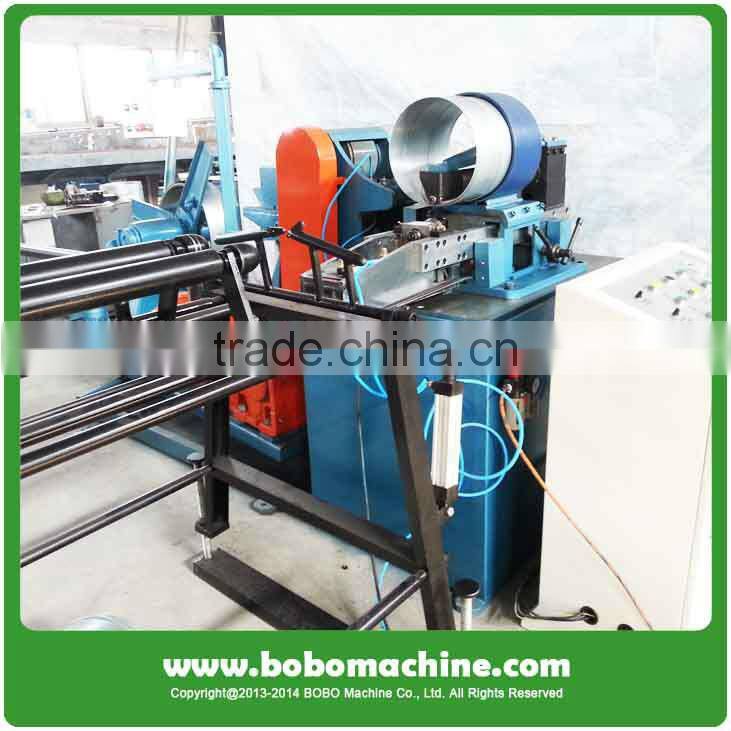

Spiral duct former
The spiral duct former is used to produce the round rigid air duct for ventilation purpose, diameter from 100-1600mm, wall thickness up to 1.2mm.
Feature

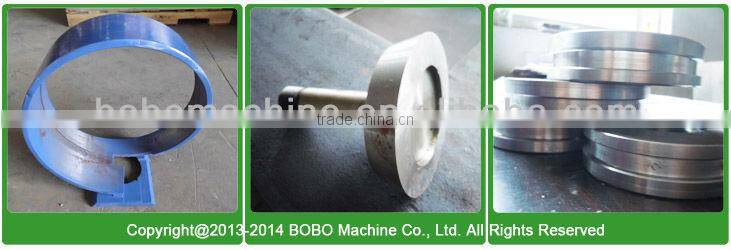

- Special aluminum alloy mould, light & long life
- Round roller shear, without noise and burrs

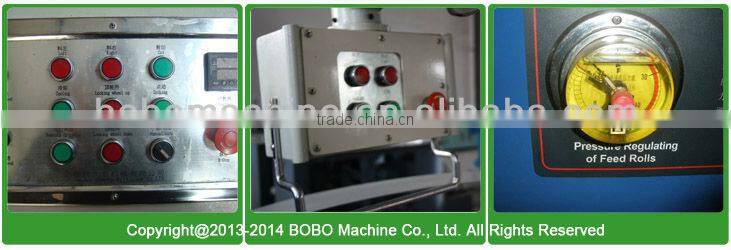

- PLC control, convenient operation

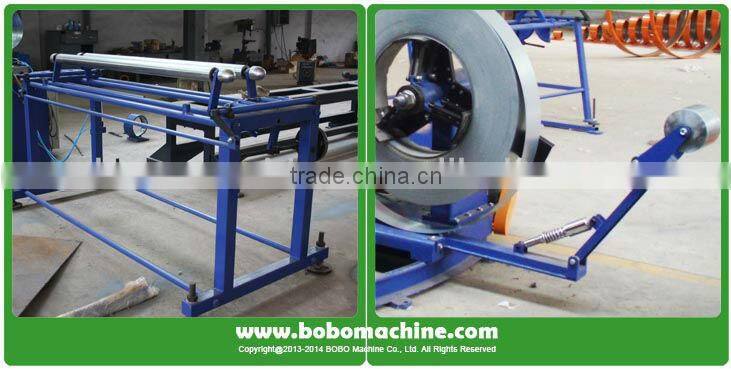

- Auto unloading rack, low labor cost
Main technical data
| 1 | Diameter | 100-2000mm |
| 2 | Thickness | 0.4-1.2-2.0mm |
| 3 | Strip width | 140-155mm |
| 4 | Strip feeding speed | 1-30m/min, adjustable |
| 5 | Suitable material | Galvanized steel, stainles steel |
| 6 | Main motor power | 15KW |
| 7 | Hydualic motor power | 4KW |
| 8 | Air compressor | 0.8MPa |
| 9 | Dimension | 3500 x 2800 x 2580mm |
| 10 | Weight | about 2500KG |
BTF seires spiral tubeformer, spiral duct forming machine, ventilationd duct machine, spiral tube former, spiral duct former, ventilationd duct machine, HVAC duct machine, air duct machine.
