Product Details
| Type | Pipe Production Line | Pipe Material | Other, galvanized steel | |
| Application | Other, hvac duct | Place of Origin | Jiangsu, China | |
| Brand Name | BOBO | Model Number | ZHTF-1500I |
Product Description
Specifications

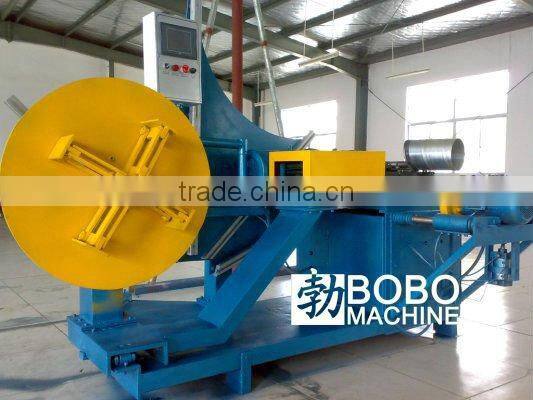

Spiral pipe making machine is used to produce the round air duct for ventilation purpose, diameter 80-1500mm, thickness 0.4-1.The spiral tubeformer is used to produce the round air duct for ventilation purpose, diameter from 80-1500mm,thickness 0.4-1.0mm
Spiral tubeformer zhtf-1500i
Main technical data
1. Diameter of round tubes: 80mm ~ 1500mm.
2. Max. tube length: unlimited.
3. Thickness of strip: 0.4 ~ 1.00mm
4. Width of strip: 137mm ~ 140mm
5. Strip speed: 1~38m/min, adjustable
6. Suitable strip material: aluminum, stainless steel, galvanized steel, color coated steel, etc.
7. Dimension: 3500mm x 2800mm x 2580mm (can be loaded in one 20’ container, disassembled, 8. in case 3000x2000x2200)
9. Weight: 2500kg
10. Power of main motor: 5.5kw
11. Power of cutting motor: 4kw
12. Pressure of pneumatic hydraulic station: 8kgf/cm2
Key words: spiral tubeformer, spiral duct forming machine, ventilationd duct machine, spiral tube former, spiral duct former.
