Home > Products > HVAC duct machine > Air Duct Seam Welding Machine

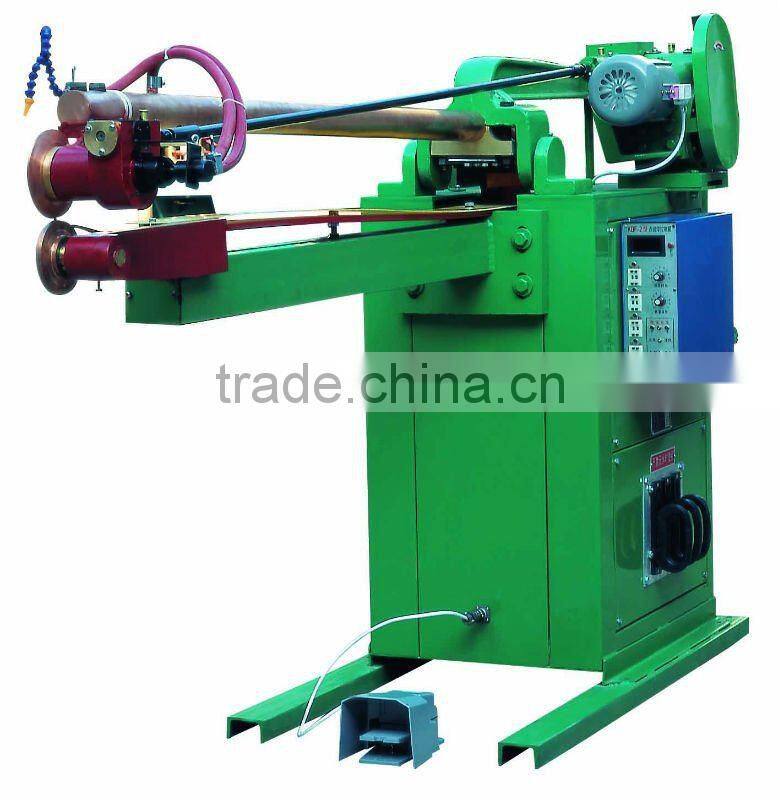

Air Duct Seam Welding Machine
US$ 5,000 - 8,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | BOBO | |
| Model Number | FN-75 | Forming Time | 3S | |
| Welding Mode | Seam welding | Welding Diameter | 1250mm | |
| Dimensions | 1.0+1.0mm | Weight | 800kg | |
| Usage | Duct seam welding machine |
Product Description
Specifications
The seam welding machine is used to welding the segment of round duct elbow.The seam welding machine is used to welding the segment of round duct elbow.
Seam welding machine, seam welder, stitich welder
Main technical data
Type: FN-75
Rated input: 75kVA
Rated input voltage: single phase, 380V, 50Hz
Rated load cycle: 50%
Max. output capacity: 110kVA
Max. short-circuit current: 16000A
The flow of cooling water: 8L/min
Max. pressure of electrode: 1000kgf
Max. welding thickness: 0.8+0.8 mm
Arm length: 1200mm
Stroke of electrode: 80mm
Welding speed: 0.5-3m
Weight: 620kg
