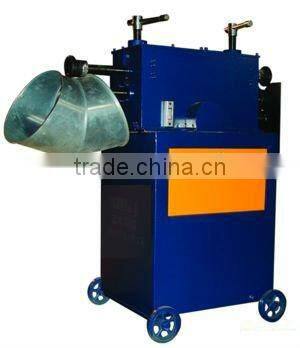

Vertical Round Duct Elbow Makinging Machine
US$ 1 - 2
/ Set
1 Set(Min. Order)
- Shanghai
- T/T
You May Like
Product Details
| Type | Other, Lock forming machine | Pipe Material | Carbon Steel | |
| Application | Other, Ventilation, HVAC | Place of Origin | Jiangsu, China | |
| Brand Name | BOBO | Model Number | DCP-700 |
Product Description
Specifications
1- Elbow duct machine2- Round duct elbow making
3- Veterical type machine
4- Min. diameter: 150mm
5- Lock forming machine
Elbow making machine
1- Elbow duct machine

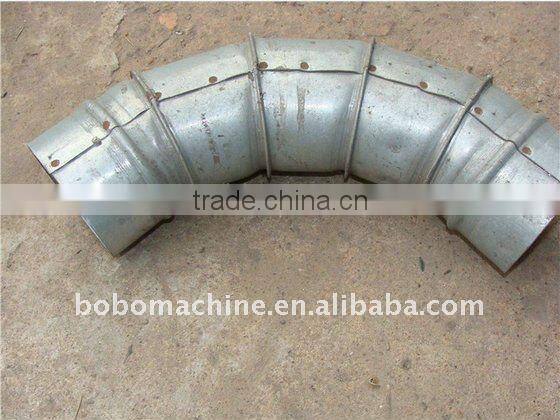

2- Round duct elbow making
3- Veterical type machine
4- Min. diameter: 150mm
5- Lock forming machine
III Main technical data
3.1 Max. thickness of material: 1.2mm
3.2 Suitable material: galvanized steel
3.3 Diameter range of elbow: 100-700mm
3.4 Rotating speed of driver: 4.5 r/min
3.5 Motor: 380V, 1.5kW
3.6 Dimension: 1200mm x 800mm x 950mm
3.7 Weight: 350kg
