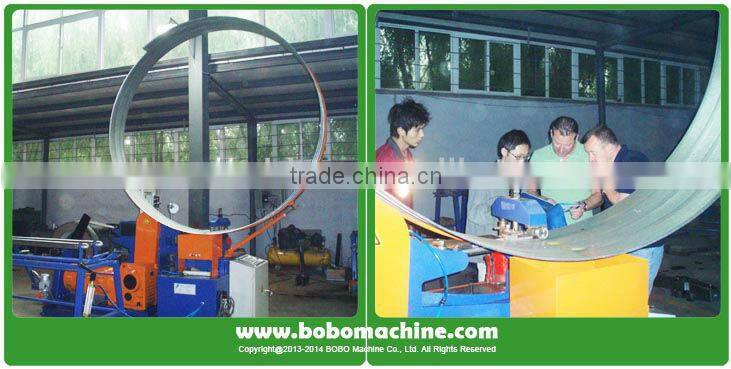

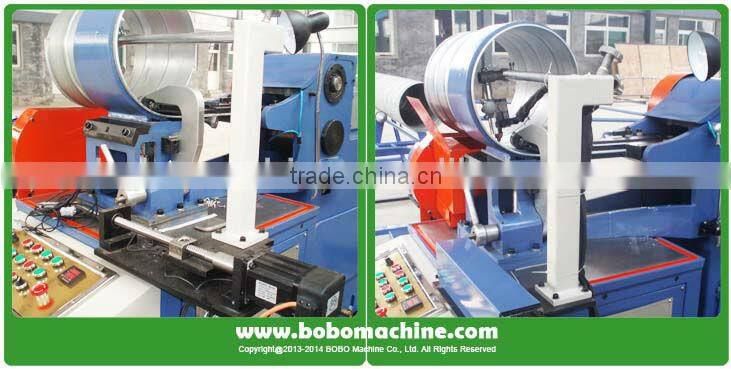

HVAC duct spiral forming machine
USD $10,000 - $35,000
/ Set
1 Set(Min.Order)
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Pipe Production Line | |
| Pipe Material | Carbon Steel | Application | Other, HVAC | |
| Production Capacity | 1-35m/min | Place of Origin | Jiangsu, China | |
| Brand Name | BOBO | Model Number | BTF series | |
| Voltage | 220V/380V/415V/440V | Power(W) | 10-15KW | |
| Dimension(L*W*H) | 3000X2500X2600mm | Weight | 2000-2500kg | |
| Certification | ISO, CE | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
HVAC duct spiral forming machine1- Optional corrugation device
2- Optional plasma cutting system
3- Optional inner lock seam

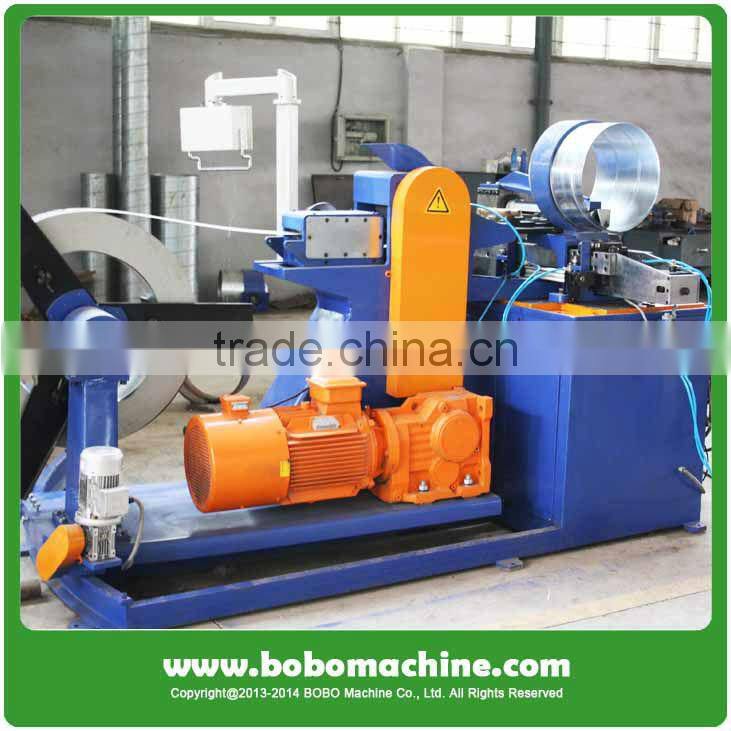

HVAC duct spiral forming machine

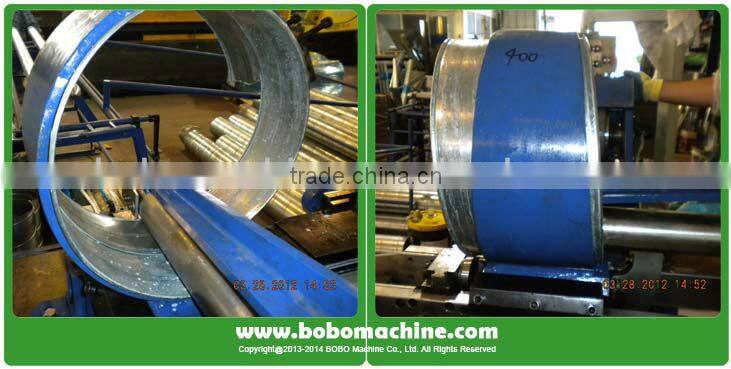

The HVAC Duct spiral forming machine is used to produce the round rigid air duct for ventilation purpose.
Feature
- PLC control system for automatic work
- Cutting system can be customized according to thickness
- Lock seam can be inner or outer for different application
- Eletric parts can be customized as per your requirements.
Main technical data
| 1 | Diameter | 100-2000mm |
| 2 | Thickness | 0.4-1.2-2.0mm |
| 3 | Strip width | 137-155mm |
| 4 | Strip feeding speed | 1-30m/min, adjustable |
| 5 | Suitable material | Galvanized steel, stainles steel |
| 6 | Main motor power | 15-22KW |
| 7 | Hydualic motor power | 4KW |
| 8 | Air compressor | 0.8MPa |
| 9 | Dimension | 3500 x 2800 x 2580mm |
| 10 | Weight | about 2500KG |
spiral tubeformer, spiral duct forming machine, ventilationd duct machine, spiral tube former, spiral duct former, ventilationd duct machine, HVAC duct machine.
