Home > Products > Flexible conduit machine > Flexible Hose Machine for Cable Casing
Flexible Hose Machine for Cable Casing
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, conduit forming machine | |
| Pipe Material | Carbon Steel | Application | Other, control cable casing conduit, control cable outer casing | |
| Production Capacity | 2-4m/min | Place of Origin | Jiangsu, China | |
| Brand Name | BOBO | Model Number | WFM-200 | |
| Voltage | 380 | Power(W) | 5.5 | |
| Dimension(L*W*H) | 2200X1000X2000mm | Weight | 1200kg | |
| Certification | ISO | Warranty | one year |
Product Description
Specifications
Flexible hose machine for cable casing1- wire flattener
2- wire welder
3- conduit former
4- conduit cutter
Flexible conduit machine for control cable casing.
The wire flattening machine is used to flat steel wire into flat shape, which is suitable for outer casing hose purpose as raw material.
Main techincal data
For flattening machine
1- Model: WF-200
2- Max. wire diameter: 1.7mm
3- Wire output speed: 1.2m/s above
4- Pressing roller diameter: 200mm
5- Wire flattening tolerance: ≤±0.01mm
For winding machine
1 | Flexible hose diameter | 4-12mm |
2 | Forming speed | 2.6m/min |
3 | Crane capacity | 120kg |
4 | Motor power | 3.75KW |
5 | Dimension | 2200 X 900 X 2000mm |
6 | Weight | 1500KG |

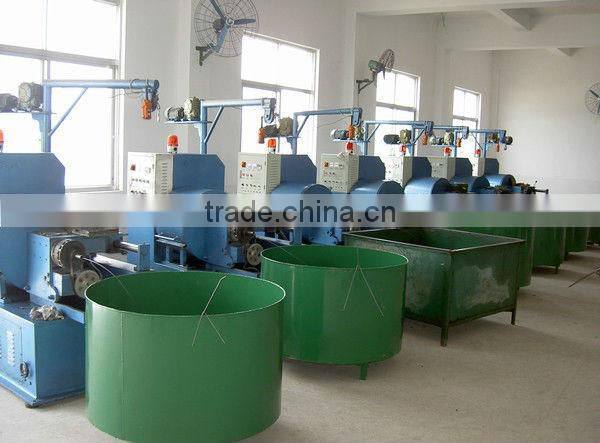

Machine assembling
Feature
1- Equipped with inverter from Mitsubishi, Japan for main motor speed adjustment.
2- Wire and inner hose feeding device has function option as “Manual” and “Automatic”
3- Equipped with auto alarm and emergency stop function if no wire / inner hose feeding
4- Equipped with electric crane for wire bobbin lifting up and down.
Machine testing
Machine package
Shipment: FOB Shanghai, China.
Payment term: 30% down payment by T/T, the balance by T/T against copy of B/L.
Delivery time: 30 days after receiving down payment.
Customer visit
In user's plant
