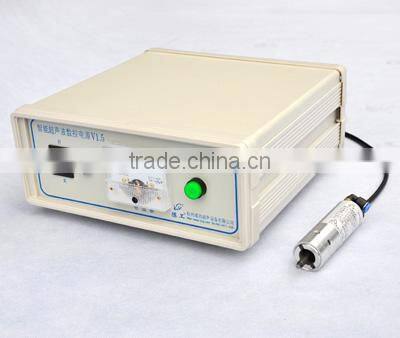

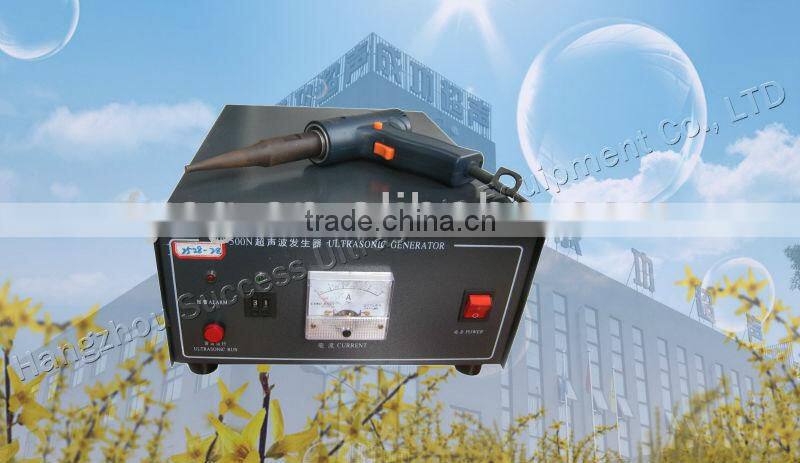

Ultrasonic Welding Machine for Plastic
- Shanghai
- Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | FYCG | |
| Model Number | YPD51B-CB | Voltage | 220V,50Hz | |
| Power | 0-500W | Frequency | 28K,35K | |
| Welding Area | As customer's requirements | Dimensions | 50*50*45CM | |
| Weight | 15KGS | Usage | For welding Plastic, rubber,fabric |
Product Description
Specifications
Stable, safe useAccording to the need to set the working time
Convenient and safe operation
The overall carrying convenient,
Electronic HF Hand Held Ultrasonic Welding Machine / Equipment For Car / Automobile
Quick Detail:
Stable, safe use
According to the need to set the working time
Convenient and safe operation
The overall carrying convenient, wide application range
Description:
Handheld ultrasonic welding machines, also known as portable ultrasonic welding machines, handheld ultrasonic welding machines, hand-held welding machine, portable welding machine, ultrasonic spot welding, riveting machines, ultrasonic point welder, can be used for the butt welding of thermoplastics, welding head can also be replaced according to customer demand for riveting, spot welding, embedding, removal process, compared to other traditional crafts (such as adhesive, scald together or screw fastening, etc.), with high production efficiency and welding quality good, environmentally friendly and energy-saving advantages.
Applications:
Electronic and electrical appliances, auto parts, clothing and packaging, textile industry, environmental industry, medical equipment, the toy industry, communications equipment and other industries.
Toy industry | Plastic toys, water guns, aquatic life video game, children dolls, plastic gifts, etc |
Electronic products | Recording, audio tape boxes and core wheel, disk enclosure, board of mobile phone batteries and rectifier transformers, switches and sockets, remote control, electronic swatter, pseudo-imitation caps, etc |
Household appliances | Electronic clock, electric trumpeter hairdryer, steam iron water tank, electric kettle air-hsiang, computer, etc |
Stationery, daily necessities | Stationery, aquarium ruler, the raphe folder and shell, pen stand, cosmetics box shell, the end of the toothpaste tube seal, mirror, insulated cup, lighter, seasoning bottles sealed container |
Car, motorcycle | Battery, front corner lamp, rear tail light, instrument, reflectors, automotive manual welding jacket, the car door welded baffle welding, automobile, car mats welding, automotive bumper repair welding |
The application of the sports industry | Table tennis, table tennis bats, badminton rackets, tennis rackets, golf clubs, pool table, treadmill roller rope skipping handle stepper, treadmill accessories, box jumps, gymnastics mats, boxing gloves, boxing sandbag Sanda protective gear, the path to indicate the brand, the X Display Stand and other sports equipment, etc |
The packaging industry | Hollow crate welding, ziplock welded |
Specifications:
Model | Frequency | Power | Generator | Function area | Application | Working type | Shape |
YP-D45 | 28 KHz±1 KHz | 200 W | ZJS-500N | According to the customer need to customize the tool head | Intermittent | Pistol type | |
YP-D47 | 200 W | ZJS-500N | Straight type | ||||
YP-D49 | 300 W | ZJS-500N | Straight type | ||||
YP-D51 | 500 W | ZJS-500N | Pistol type | ||||
YP-D53 | 500 W | ZJS-500N | Straight type | ||||
YP-D55 | 800 W | ZJS-500N | Pistol type | ||||
YP-D57 | 800 W | ZJS-500N | Straight type | ||||
Pistol type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.
Straight type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.
Competitive Advantage:
Efficiency: The welding process is very fast, welding time is only 0-999 seconds.
Strength: Can bear more pressure and tension (the weld joint has same strength as the base material).
Quality: Finished product is hermetic sealing (airtight and watertight).
Cost: Non bolt or glue, reduce labor and costs (no adhesives, screws, connective bolts).
Appearance: The joints are repeatable, clean and precise.
