Home > Products > Ultrasonic Sonochemistry > YP-S61 20kHz Ultrasonic Biodiesel Equipment

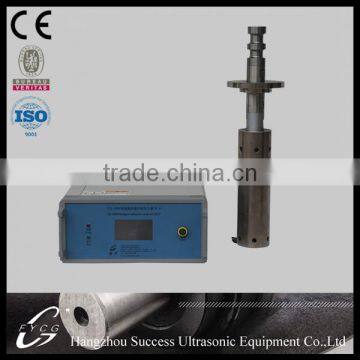

YP-S61 20kHz Ultrasonic Biodiesel Equipment
- Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Extraction Equipment | |
| Product Type | Other, Biodiesel | Place of Origin | Zhejiang, China | |
| Brand Name | FYCG | Model Number | YP-S61 | |
| Voltage | 220 V | Power(W) | 3000 W | |
| Weight | 40 Kg | Dimension(L*W*H) | Standard or Custom Made | |
| Certification | CE,BV,ISO 9001 | Warranty | 3 Years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
YP-S61 20kHz Ultrasonic Biodiesel Equipment

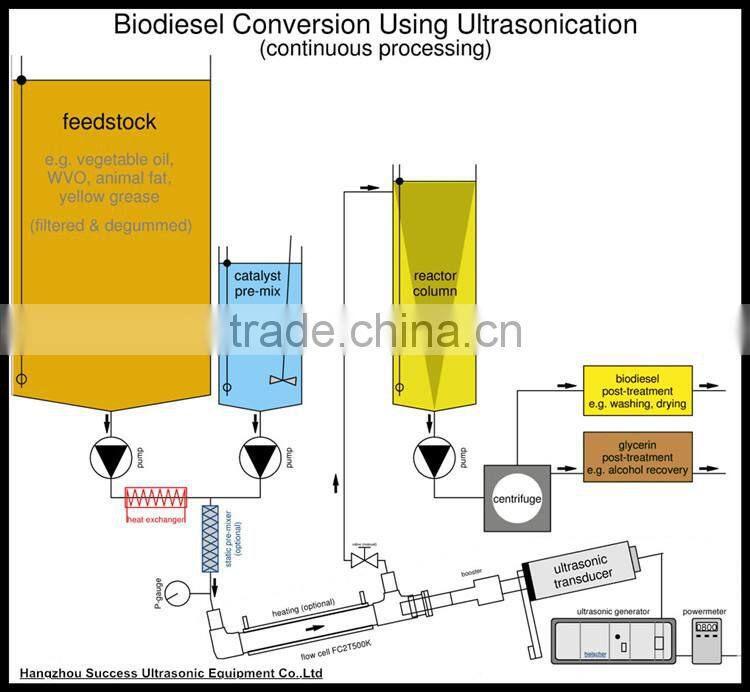

The point of biodiesel processing is catalytic ester and fatty acid esters of glycerol and methanol low carbon alcohol exchange reaction.The function of ultrasonic is strengthen the ester exchange reaction, enhancing the mixing (emulsion) effect and promote the intermolecular contact reaction. The need of high temperature (high pressure) under the conditions of the reaction at room temperature (or close to room temperature) conditions can be completed, shorten the reaction time. Ultrasonic is used not only for the ester exchange reaction, but also for the separation process, the reaction mixture.
| Model | YP-S51 | YP-S53 | YP-S55 | YP-S57 | YP-S59 | YP-S61 |
| Frequency | 28 kHz | 20 kHz | 20 kHz | 20 kHz | 20 kHz | 20 kHz |
| Power | 1000 W | 500 W | 1000 W | 1500 W | 2000 W | 3000 W |
| Voltage | 220±10% V | |||||
| Temperature | 300 °C | |||||
| Pressure | 30 MPa | |||||
| Intensity of sound | ≥15 W/cm² | ≥10 W/cm² | ≥20 W/cm² | ≥30 W/cm² | ≥40 W/cm² | ≥60 W/cm² |
| Capacity | 400 L/H | 300 L/H | 600 L/H | 900 L/H | 1200 L/H | 1800 L/H |
| Generator | V5.0 | V6.0 | V6.0 | V6.0 | V6.0 | V6.0 |
| Material of Horn | Titanium alloy | |||||
| Size | Generator: 200*420*280 mm Horn:Standard or Custom Made | Generator: 400*430*190 mm Horn:Standard or Custom Made | Generator: 400*430*190 mm Horn:Standard or Custom Made | Generator: 400*430*190 mm Horn:Standard or Custom Made | Generator: 400*430*190 mm Horn:Standard or Custom Made | Generator: 400*430*190 mm Horn:Standard or Custom Made |

- Save mixing time 20%~60%
- Lower temps 30%~60%(30 degrees C)
- Less methanol 5%~30%
- Less chenical (KOH) less 20%~50%
- Total production cost save 15%~50%
- Another advantage is to save glycerol separation time,it will cost less methanol but glycerol separation faster.
- Hangzhou Success Ultrasonic Equipment Co.,Ltd is the leader of high-power ultrasonic equipment in China.
- Our company was founded in 1978.We have more than 30 years experiences.
- We have more than 20 engineers.They can make design scheme according to your requirements.
- Our piezoeletric ceramic disc is imported from Germany.The transducer have longer service life.
- Welcome to send us your sample.We have an open laboratory.It is free for making experiments.And we will take a video for you.
- We are specializing in high-power ultrasonic device and approved by CE, BV, ISO 9001.
- 24 hours technical supports and after-sales service
- Non-human damage, one year guaranteed exchange, three years warranty
