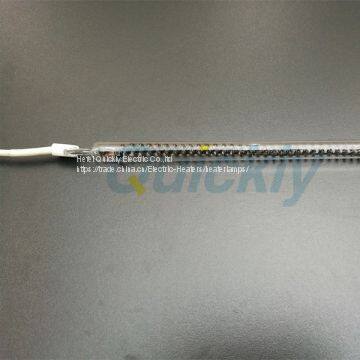

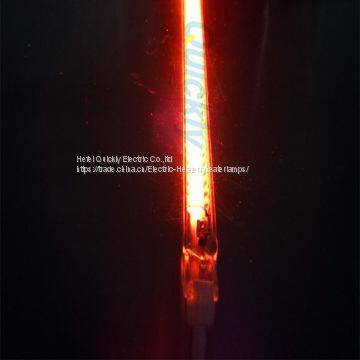

Far Wavelength Carbon Fiber Medium Wave Infrared Heater Lamps
- Shanghai
- T/T PayPal Cash
- 10 days
You May Like
Product Details
| Brand Name | Quickly | Place of Origin | China | |
| Certification | CE, ROHS | Function | Adjustable Thermostat, Waterproof | |
| Use | Bathroom, Bedroom, Garden, Living Room | Heating Element | Carbon Fiber | |
| Electric Heater Type | Infrared Heater |
Product Description
Twin Tube Quartz Tubular Infrared Emitters
Carbon Fiber Medium Wave Infrared Emitters
Gold Coating
Clear Tube without Any Reflector
Product name | Carbon Fiber Medium Wave IR Lamp |
Tube diameter | 8*18mm/11*23mm/15*33mm |
Total length/Heated length | 420mm/350mm |
Power/Voltage | 1000W/380V |
Wavelength range | 1.4-2.6 μm |
Response Time | 1 - 2 minutes |
Electric heat transformation rate | 98% |
Filament Temp | 1400 °C - 1800 °C |
Max Heating Length | 6400/ 2400 mm |
Warranty Time | 10000h |
High Power Density | up to 80w/cm |
Heating Filament | Woven Carbon |
Infrared heaters are usually classified by the wavelength they emit
The IR Heater Range | Format | Heated Length | Total Length | Max. Output | |
Short Wave IR Heater | Halogen NIR | 10/11/12 dia. | 60-1000 | 110-1100 | 9000 |
Single-tube IR | 13/15dia. | 60-1200/1400 | 110-1300/1500 | 7500 | |
Twin-tube IR | 23x11 | 80-3000 | 200-3150 | 14,000 | |
Twin-tube IR | 33x15 | 80-3800 | 200-4050 | 16,000 | |
Medium Wave IR Heater | Single tube | 15/18dia | 80-1400/1700 | 150-1500/1800 | 6,750 |
Twin-tube IR | 18x8 | 80-1500 | 100-1600 | 2500 | |
Twin-tube IR | 23x11 | 100-2000 | 120-2200 | 4500 | |
Twin-tube IR | 33x15 | 500-5800 | 350-6000 | 12,000 | |
Carbon IR Heater | Round tube | 12/15/18 dia. | 120-1000/1680 | 130-1200/1750 | 7,200 |
Twin-tube IR | 23x11 | 80-2500 | 200-2650 | 8,000 | |
Twin tube | 33 x 15 | 120-3000 | 130-3130 | 10,500 | |
Fast Medium wave IR Heater | Single tube | 13/15dia. | 60-1200/1400 | 110-1300/1500 | 6,200 |
Twin-tube IR | 33x15 | 400-3000 | 600-3150 | 12,000 | |
FEATURES & BENEFITS
· Highly Efficient Heat Source
Over 85% of the input energy is converted into infrared energy.
· Ease of Control
As opposed to combustion heat energy, our light source based energy is easier to control and manipulate by use of lenses and reflectors.
· Compact and Clean Energy
A non-polluting heat source from a light weight and compact footprint enables flexible design possibilities.
· Instant On/Off
Due to the ability to reach maximum output upon ignition, a sophisticated heating programming can be applied.
· Long Life and Consistent Output
By utilizing the halogen cycle, QUICKLY's lamps are designed up to 5000 hrs with almost no loss in infrared output.
· Flexible Production Capability
QUICKLY supports customer specified custom design and OEM support.
About Our Company
Hefei Quickly Electric Co.,ltd is a manufacturer of high quality Quartz electric heating elements. We proudly manufacture every elements we sell. Every element is manufactured from high quality materials sourced from both domestic and foreign suppliers. We make the finest quality elements in the market.
Drying oven for coating/reflector on quartz tube
RFQ
1.Why Quartz Glass as the one main of material?
The choice of quartz glass is not a coincidence: this extraordinary material is totally transparent at IR radiation, can withstand constant working temperatures of more than 1000°C and it is resistant to chemical corrosion.
2.Typs of Quartz tubes
Quartz uses two kinds of quartz tubes: single tube and twin tube. The twin tube provides the best mechanical resistance, thanks to its reverse "H" shape, and it allows to manufacture emitters up to 6,5 meters in length.
3.Why reflector
The emitters with coating are highly economical, converting practically all the consumed electrical power into heat
In addition to 180° (half-tube) coating, we also manufacture 270° coating or other customer specified degrees.
uld you supply clamps for lamp installing ?
Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.
6. What information i need to confirm before sending inquiry
Input Voltage, Wattage, Overall Length ( including ceramic base), Heated Length, Tube Diameter, Reflector Type, Lead wire (length);
If this is a new project, show me information such as : what material the lamps will be used to drying or heating , oven size, required working temperature, limited time, speed, voltage...

" quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained CE, ROHS, ISO9001.
8. How you do lamps package?
9. How To make the shipping and payment?
10. How to contact us
ADD : C34, Jia Hai Industrial Park, Xin Bengbu Road, Xinzhan District, Hefei City, Anhui, China 230012
TEL : 86-551-65208999
FAX: 86-551-65218999
Whatsapp: 86-13767487075
Skype : cathy1993_wang
