Square Tungsten Alloy Sheet Board Blank Plate for VSI Machine
- any port in China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Solid Tungsten Carbide /cemented Carbide Solid Rods/carbide Solid Rods Extruding Precision Rods Solid Carbide Rod Price
-
330mm Extruded Tungsten Carbide Ground Rods
-
Carbide Cutting Tools Grinding Carbide, Round Carbide Rods, Tungsten Carbide Rod/tips/insert
-
Solid Carbide Rod Price
-
Solid Tungsten Carbide Rods With One Straight Hole
-
Construction Tool Parts Type Tungsten Carbide Rod
Product Details
| Place of Origin | Hunan, China | Brand Name | HONGZUAN | |
| Model Number | Customized | Type | Power Tool Parts |
Product Description

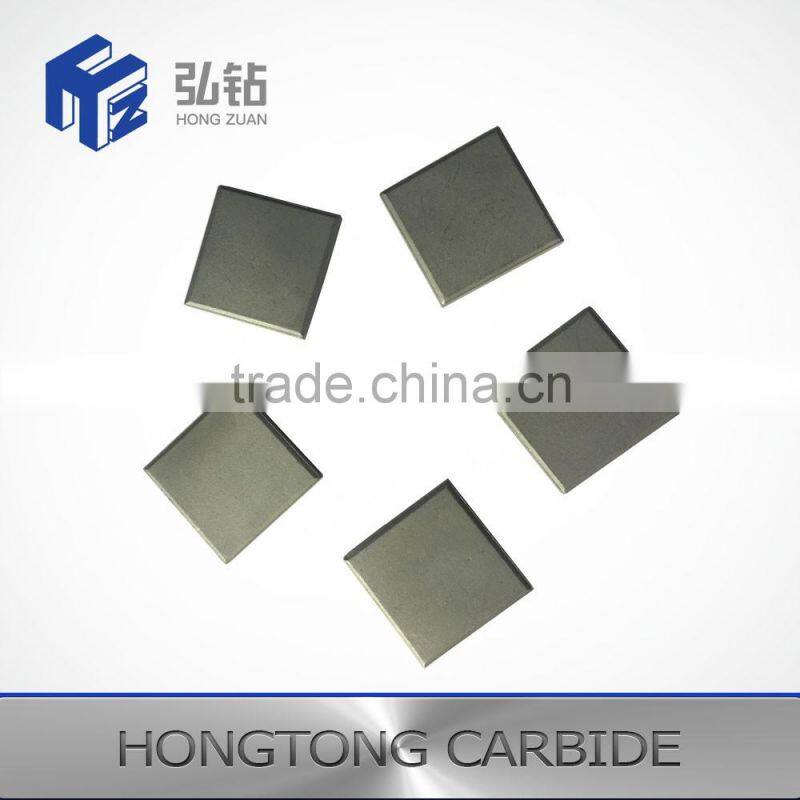

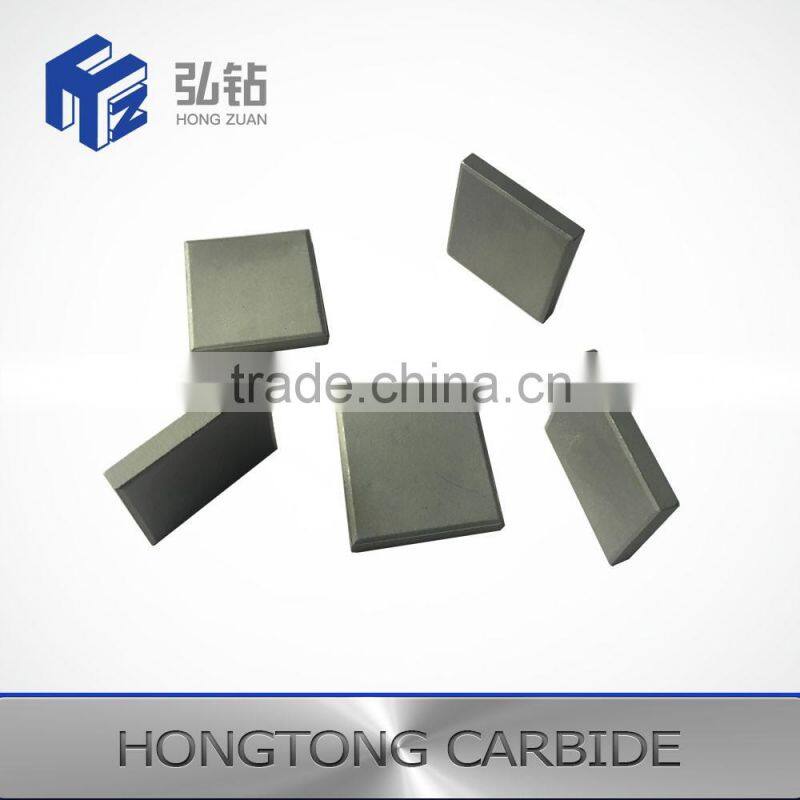

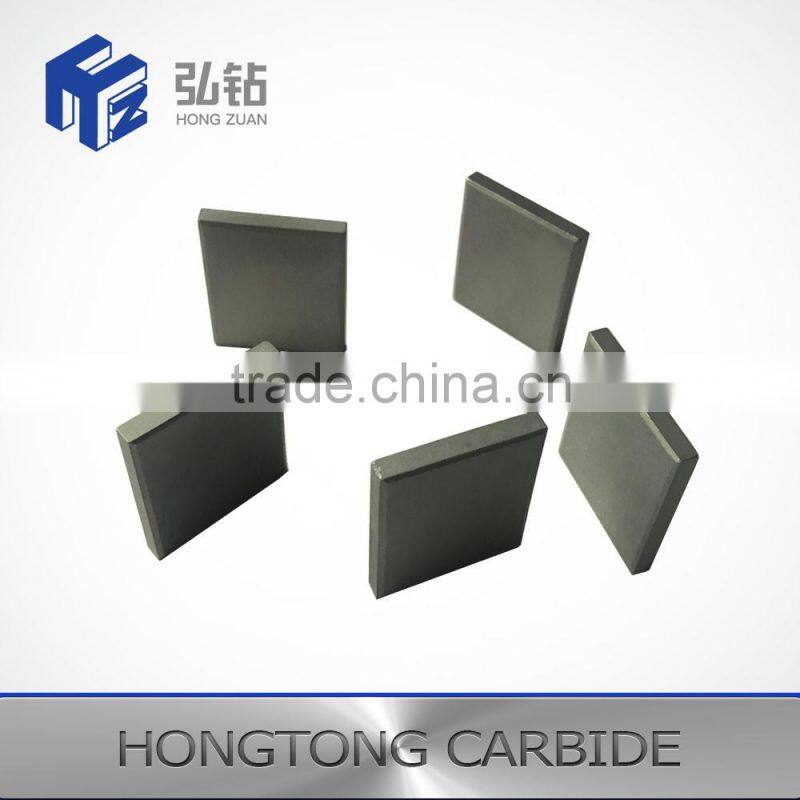

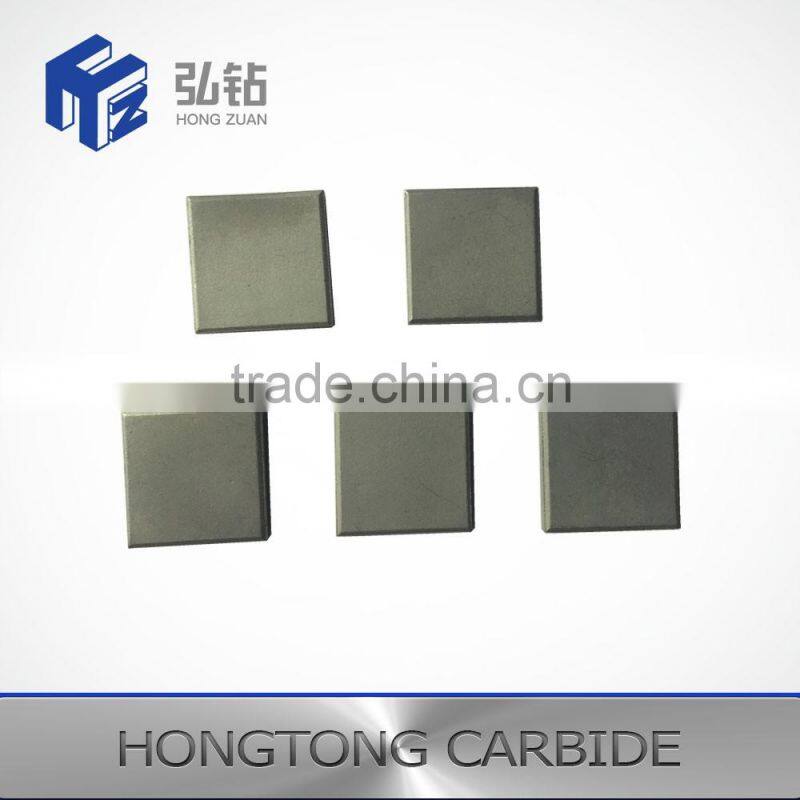

Square tungsten alloy sheet board blank plate for VSI Machine
Features of Tungsten carbide plates
Tungsten carbide wear plate,made from 100% virgin tungsten carbide raw materials.It can be used in wide application field. Tungsten carbide wear plate have high hardness, good red hardness,excellent wear resistance, High Elasticity Modulus and compressive strength.The chemical properties of our tungsten carbide plates is stable,also the impact toughness & dialatation coefficient is low. The heat-conducting property and electrical conductivity of tungsten carbide plate is close to iron or iron alloy.
Application:
Tungsten carbide plates, have high hardness, wear-resistance, and resistance to bending. They're widely used in cutting tool, crusher, wear parts, moulding base and other fields.
Free smaple was available!
Mains Grade for Tungsten carbide plates
Grade No. | Density (g/cm³) | Hardness (HRA) | T·R·S (MPa) | Application Recommended |
| YG6 | 15.80 | 89.5 | 1700 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG8 | 14.70 | 88.5 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG8C | 14.70 | 88.0 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG13C | 14.30 | 86.0 | 2500 | It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
| YG15 | 14.00 | 86.5 | 2500 | It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
| YG16 | 14.10-14.30 | 87.5 | 2400 | It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
| YG20 | 13.40-13.70 | 85.0 | 2254 | Mainly for the stamping dies used in the conditions of heavy impact load and large strees |

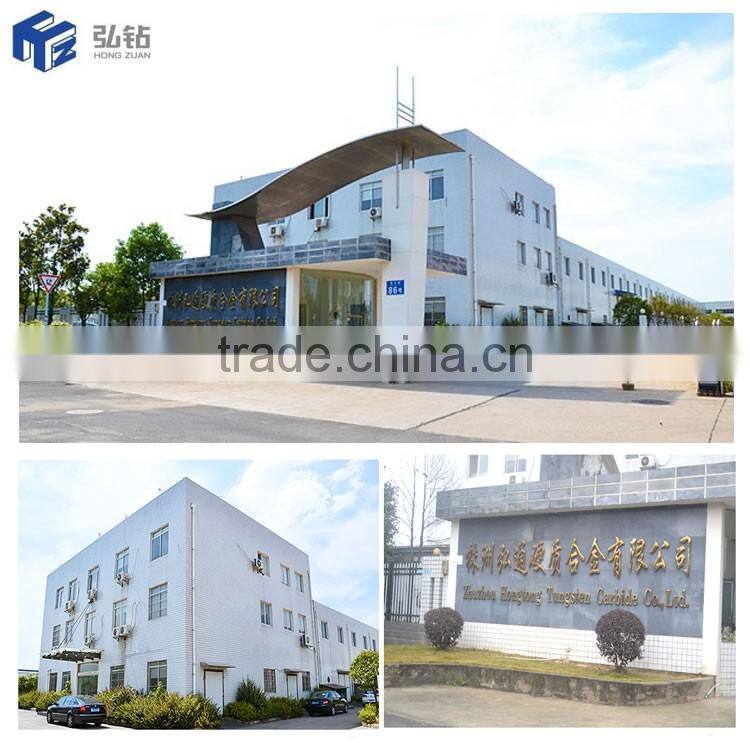

ZhuZhou HongTong Tungsten Carbide Co., Ltd., located at Liyu Industrial Park, Zhuzhou National High-tech Development Zone, is a high-tech joint-equity enterprise integrating R&D, production and marketing of cemented carbide series products.

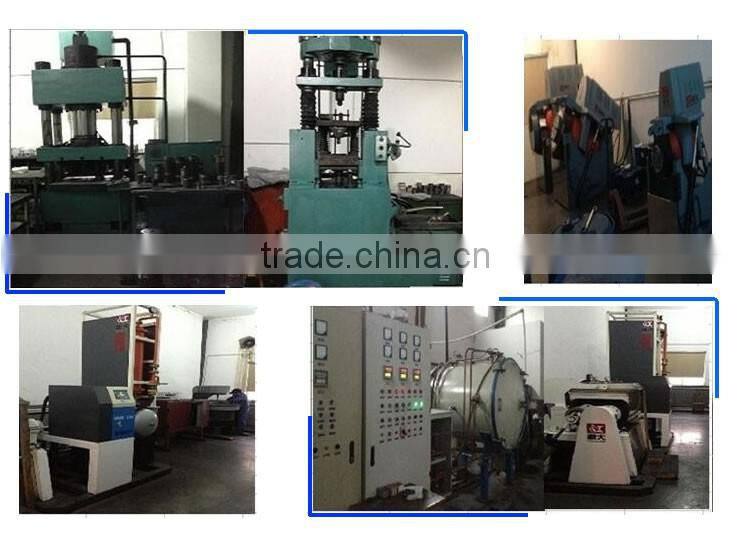

The company sets up an independent production and R&D base, covering a total area of 7,000m2 and a plant area of 4,000m2. There is a group of experienced technical personnel and a staff of 80 people including 5 engineers, 8 assistant engineers, and 29 people having college degree or above. The company mainly produces cemented carbide drawing dies, cold heading dies, mining tools, sealing rings, and other nonstandard products, wherein the cemented carbide drawing dies and cold heading dies take a leading position in the industry, and the bore of wire-drawing die can be minimized to 0.1mm, deeply popular with customers.
Q1 : Are you Factory or trading company ?
We are Factory with 15 years of production experience.
Q2: Where is your factory located ?
We are located in Liyu Industrial Park, Zhuzhou National High-tech Development Zone, is a high-tech joint-equity enterprise integrating R&D, production and marketing of cemented carbide series products.
Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.
Q4: Are the products of high quality Good performance valve balls and valve seat by stellite alloy?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
Q5: How to place an order for Good performance valve balls and valve seat by stellite alloy?
1. Fill your Order List in our online Inquiry System
(Also you can directly contact our salesperson by E-mail / Skype / Whats App)
2. We will make a feedback to you ASAP after receive your order list.
Q6: How we can trust your company ?
We support Aliababa trade insurance , 100% products quality protection, 100% on -time shipment protection, 100% payment protection for your covered amount.
Q7: What’s your delivery time ?
For the normal type which we have mold it takes 7-15 days after receiving the advance payment.
For the non standard which we do not have mold it takes 15-35 days after receiving the advance payment.
Q8:How to contact us?
You can Contact me by E-mail, Trademanager, Skype, Mobile, whatsapp and so on
