Home > Products > New Products > DOUBLE COLUMN HORIZONTAL BAND SAW SDH4228

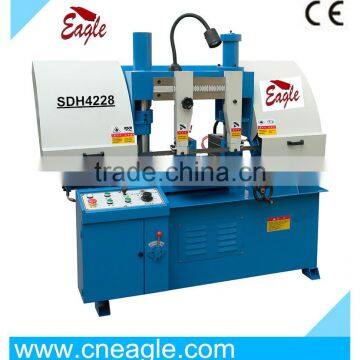

DOUBLE COLUMN HORIZONTAL BAND SAW SDH4228
- QINGDAO
- D/P D/A
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | EAGLE | Model Number | SDH4228 | |
| Voltage | 220V | Rated Power | 2.2KW | |
| Dimension(L*W*H) | 1860*1000*1400 | Weight | 610KG | |
| Certification | CE | Warranty | 1 Year |
Product Description
Proven design with dual-column guides ensure maximum accuracy and stability for cost-effective machining of large parts
Feed of the saw frame is infinitely variable via a hydraulic throttle valve
At the end of sawing cycle,the saw blade will stop and return to the home position
Very rigid,adjustable saw blade guides keep the saw blade on track
Including hydraulic workpiece clamping with clamping pressure control
Standard equipment:hydraulic workpicec clamping,1 saw blade belt,material support stand,
coolant system,work lamp,operator manual
Optional equipment:automatic blade breakage control,fast drop protection device,
hydraulic blade tension:automatic chip removal device,various blade linear speed,
blade protection covers,wheel cover opening protection,CE standard electrical equipment.
| Specification | SDH4228 | ||
| cutting capacity 90° | rectangular | mm | 280×280 |
| circular | mm | 280 | |
| square | mm | 280 | |
| linear speed | m/min | 27,45,69 | |
| blade size | mm | 3505×27×0.9 | |
| main motor power | kw | 2.2 | |
| hydrauic motor power | kw | 0.55 | |
| coolant pump motor power | kw | 0.04 | |
| overall dimensions | mm | 18601100×1400 | |
| machine weight | kg | 610 | |
| Item No: | 213015 |
