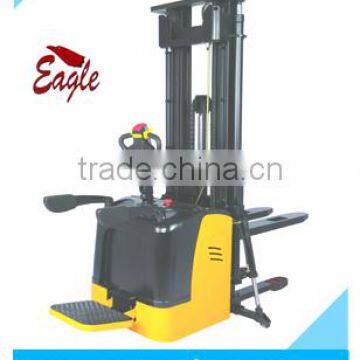

Full Electric Stacker
Negotiable
/ Set
1 Set(Min. Order)
- Qingdao China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | EAGLE | Model Number | CDDK20 | |
| Type | Powered Pallet Truck | Power Souce | AC Motor | |
| Rated Loading Capacity | 2000KG | Max. Lifting Height | 2500/3000/3300/3500/ 4500/5000/5600mm | |
| Fork Length | 60/180/1070/1150mm | Fork Width | 570/695mm | |
| Certification | CE |
Product Description
Specifications
Full Electric Stacker1.All of the products certificate: CE and GS
2.Capacity from 2000Kg
3.AC Motor
Full Electric Stacker
| Features |
|
| Model | CDDK20 |
| Drive type | CDDK20 |
| Operation type | Standing |
| Load capacity Q(kg) | 2000 |
| Load center c(mm) | 600 |
| Load distance x(mm) | 672 |
| Service weight (with battery) kg | 1550 |
| Tyres | Polyurethane |
| Height, mast loweredH1 | 1735/1985/2135/2235/2050/2210/2410 |
| Free lift (option)H2 | 1300/1550/1700/1800/1570/1740/1940 |
| Max. lift height h3(mm) | 2500/3000/3300/3500/4500/5000/5600 |
| Height, mast extended | 2955/3455/3755/3955/5030/5510/6110 |
| Initial lift h14(mm) | 1150/1450 |
| Fork height, lowered h13(mm) | 90 |
| Overall length l1(mm) | 2020/2100 |
| Overall width b1(mm) | 850 |
| Fork dimensions s/e/l(mm) | 60/180/1070(1150) |
| Aisle width for pallets 1000×1200 crossways Ast(mm) | 2535 |
| Aisle width for pallets 800×1200 crossways Ast(mm) | 2515 |
| Turning radius Wa(mm) | 1655 |
| Travel speed, laden/unladen Km/h | 5.8/6 |
| Lift speed, laden/unladen m/s | 0.09/0.11 |
| Lowering speed, laden/unladen m/s | 0.12/0.11 |
| Service brake | Electromagnetic |
| Drive motor capacity kW | 1.5(AC) |
| Lift motor capacity kW | 3 |
| Battery voltage, nominal capacity K5 V/Ah | 24/300 |
| Battery weight kg | 300 |
