ZA series Vertical Drilling Machine
Negotiable
/ Set
1 Set(Min.Order)
- 500 Set / Sets per Month
- Qingdao China
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Place of Origin | Shandong, China | Brand Name | EAGLE | |
| Model Number | ZA series Vertical Drilling Machine | Certification | CE | |
| After-sales Service Provided | No overseas service provided |
Product Description
Specifications
ZA series Vertical Drilling MachineChange speed with gears and operate easily
High spindle speed and wide speed range

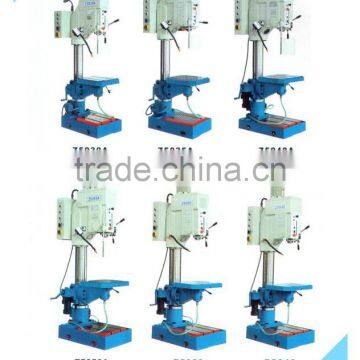

ZA series Vertical Drilling Machine
Specification
STANDARD ACCESSORIES
Key type drill chuck;
Connecting bar of drill chuck;
Short sleeve for taper shank tool;
Wedge for taper shank tool
Foundation bolt.
| MODEL | Z5025A | Z5025S | Z5030A | Z5030S | Z5035A | Z5040A | Z5050A | ||||
| SPECIFICATIONS | |||||||||||
| Max. Drilling Capacity (mm) | 25 | 25 | 30 | 30 | 35 | 40 | 50 | ||||
| Max. Tapping Capacity (mm) | M16 | M16 | M18 | M18 | M20 | M24 | M24 | ||||
| Distance from spindle centre to column generatrix (mm) | 315 | 315 | 315 | 315 | 330 | 360 | 360 | ||||
| Max. distance from spindle nose to worktable (mm) | 520mm | 520mm | 520mm | 520mm | 610mm | 600mm | 600mm | ||||
| Max. distance from spindle nose to base worktable (mm) | 1080mm | 1080mm | 1080mm | 1080mm | 1150mm | 1215mm | 1205mm | ||||
| Max. travel of spindle (mm) | 135mm | 135mm | 135mm | 135mm | 150mm | 180mm | 180mm | ||||
| Max. traverse of worktable and bracket (mm) | 480mm | 480mm | 480mm | 480mm | 540mm | 560mm | 525mm | ||||
| Lever rotation angle of worktable and bracket (degree) | ±45º | ±45º | ±45º | ±45º | ±45º | ±45º | ±45º | ||||
| The taper bore of spindle (Morse) | 3 | 3 | 3 | 3 | 4 | 4 | 4 | ||||
| Number of spindle variable speed (Number) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | ||||
| Range of spindle variable speed (r/min) | 70-2600 | 70-2600 | 70-2600 | 70-2600 | 70-2050 | 42-2050 | 45-1865 | ||||
| Number of spindle feed (Number) | 3 | 3 | 3 | 4 | 4 | ||||||
| Range of spindle feed (mm/r) | 0.1,0.2,0.3 | 0.1,0.2,0.3 | 0.1,0.2,0.3 | 0.07,0.15,0.26,0.4 | 0.07,0.15,0.26,0.4 | ||||||
| Diameter of column (mm) | ø125 | ø125 | ø125 | ø125 | ø140 | ø160 | ø170 | ||||
| Effective working dimension of worktable (mm X mm) | 374x374 | 374x374 | 374x374 | 374x374 | 424X424 | 500 X 370 | 500 X 370 | ||||
| Effective working dimension of base (mm X mm) | 370 X 360 | 370 X 360 | 370 X 360 | 370 X 360 | 420X380 | 460 X 450 | 460 X 450 | ||||
| Dimension of worktable and base T-slot (mm) | 2-14 2-16 | 2-14 2-16 | 2-14 2-16 | 2-14 2-16 | 2-14 2-16 | 2-14 2-16 | 2-14 2-16 | ||||
| 3-phase AC motor with double speed | Power (Kw) | 1.1/1.5 | 1.1/1.5 | 1.1/1.5 | 1.1/1.5 | 1.5/2.2 | 2.2/2.8 | 2.2/2.8 | |||
| Voltage (v) | 220.380.420.440 | 220.380.420.440 | 220.380.420.440 | 220.380.420.440 | 220.380.420.440 | 220.380.420.440 | 220.380.420.440 | ||||
| Rotation speed (r/min) | 960/1450 | 960/1450 | 960/1450 | 960/1450 | 960/1450 | 960/1450 | 960/1450 | ||||
| 3-phase electrical pump | Power (Kw) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | |||||
| Voltage (V) | 220.380.420.440 | 220.380.420.440 | 220.380.420.440 | 220.380.420.440 | 220.380.420.440 | ||||||
| Flux (L/min) | 6 | 6 | 6 | 6 | 6 | ||||||
| Overall dimension (cm) | 65x105x195 | 70x115x215 | |||||||||
| Net weight/Gross weight (Kg.) | 440/500 | 670/730 | 730/800 | 800/860 | |||||||
| ITEM NO. | 145030 | 145035 | 145040 | 145045 | 145050 | 145055 | 145060 | ||||
