DV series Vertical Drilling Machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Place of Origin	Shandong, China	Brand Name	EAGLE
Model Number	DV series Vertical Drilling Machine	Certification	CE
After-sales Service Provided	No overseas service provided

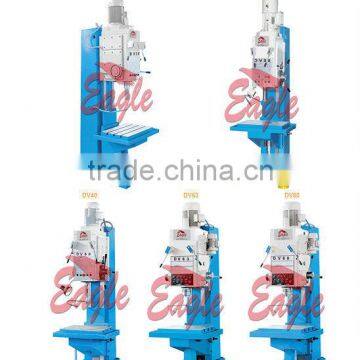

DV series Vertical Drilling Machine
Change speed with gears and operate easily
High spindle speed and wide speed range

Specification

Model	Unit	DV 25	DV 32	DV40	DV 40A	DV50	DV63	DV 80	DV 100
Max. drilling diameter	mm	25	32	40	40	50	63	80	100
Max. feeding resistance	N	9000	9000	16000	16000	16000	30000	30000	45000
Max. allowed spindle torque	N.M	160	160	350	350	350	800	800	1150
Spindle taper		Morse NO.3	Morse NO.4	Morse NO.4	Morse NO.4	Morse NO.5	Morse NO.5	Morse NO.6	Morse NO.6
Distance of spindle centerline of guide way face	mm	280	280	335	335	335	375	375	480
Spindle travel	mm	200	200	250	250	250	250	250	310
Spindle head travel	mm	200	200	200	200	200	250	250	300
Spindle speed	r/min	50-2000	50-2000r/min	31.5-1400	31.5-1400	40-570	40-570	40-570	26-320
Spindle speed	r/min	9 steps	9 steps	12 steps	12 steps	9 steps	9 steps	9 steps	6 steps
Feed rate	r/min	0.056-1.8	0.056-1.8	0.056-1.8	0.056-1.8	0.056-1.8	0.1-0.78	0.1-0.78	0.096-0.717
Feed rate	r/min	9 steps	9 steps	9 steps	9 steps	9 steps	6 steps	6 steps	6 steps
Table travel	mm	310	310	300	300	300	300	300	300
Working table area	mm	400×530	400×530	480×560	480×560	480×560	650×550	650×550	760×650
Distance of spindle nose to table face	mm	710	710	750	750	750	800	800	850
Main motor power	kw	2.2	2.2	3	3	4	5.5	5.5	7.5
Flow of cooling pump	L/min	25	25	25	25L/min	25	25	25	25
Overall dimension	mm	962×847×2340	962×847×2340	1040×906×2535	1040×906×2535	1040×906×2535	1452×965×2787	1452×965×2787	1465×970×3170
Net weight	kg	950	950	1250	1250	1250	2500	2500	3500
Item No.		145100	145102	145104	145105	145106	145108	145110	145112
