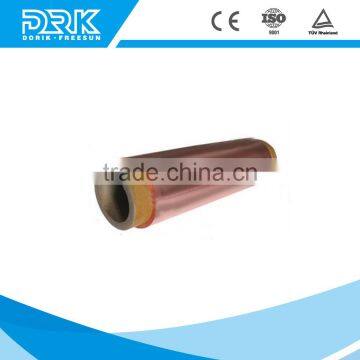

High Tensile Strength RA Foils for Li-ion Battery

FOB Price

Negotiable / Ton

1 Ton(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Thickness	6~12um		Place of Origin	Zhejiang, China
Model Number	DRK-RAFOIL-10

Specification:

Thickness:6~12µm (0.0002~0.0005 inch)

Width:≤650mm (≤25.6 inch)

Performance:

Comparison for RA & ED copper foil

Application:

Power batteries, polymer batteries and other battery materials.

Advantage:

This material has good appearance consistency, high tensile strength, high bendability and no-cracks.

Properties:

Item		Unit	Parameter
Thickness		mm	0.007	0.01	0.012
Purity		%	≥99.90	≥99.90	≥99.90
Area Weight		g/m2	65±10.5	95±10.5	105±10.5
Roughness(Double side R)		μm	≤0.17	≤0.17	≤0.17
Normal	Tensile strength	Mpa	≥345	≥350	≥350
Normal	Elongation	%	≥0.5	≥0.5	≥0.5
Electricity Properties(Conductivity)		20℃ IACS	≥95%	≥95%	≥95%
Anti-oxidization of high temperature(160℃ 1hour)		----	PASS	PASS	PASS
