Home > Products > 17. RA Foil > Beryllium copper rolled foil
Beryllium copper rolled foil
- 0 per Month
- Any China port
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Zhejiang, China | Model Number | DRK-RAFOIL-7 | |
| Application | micro-motor brush, cell phone batteries, computer connectors | Thickness | 0.02~0.1mm | |
| Shape | Coil | Width | 1.0~625mm | |
| Alloy Or Not | Is Alloy |
Product Description

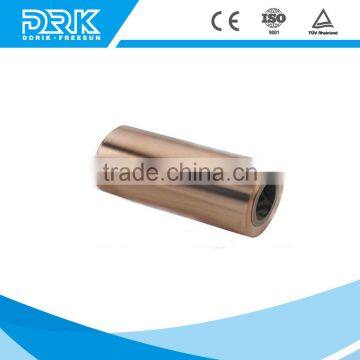

Beryllium custom copper rolled foil
Beryllium Copper Foil is one kind of supersaturated solid solution copper alloy which combined very good mechanical ,physical, chemical propertiesand corrosion resistance. It has high intensity limit, elastic limit, yield strength and fatigue limit as special steel after solution treatment and aging. It also has high conductivity, thermal conductivity, high hardness and wear resistance, high creep resistance and corrosion resistance for which it has been widely used to replace steel in the manufacturing of various types of mold inserts, producing precision and complex shaped molds, welding electrode material casting machines, injecting molding machines'punches and etc.
Beryllium Copper Foil's application is micro-motor brush, cell phone batteries, computer connectors, all kinds of switch contacts, springs, clips, gaskets, diaphragms, film and etc.
It is indispensable an important industrial material to the national economy
Contents:
Alloy No. | Main Chemical Composition | |||
ASTM | Cu | Ni | Co | Be |
C17200 | Remin | (1) | (1) | 1.80-2.10 |
(1): i+Co≥0.20%;Ni+Fe+Co≤0.60%;
Properties:
Density: 8.6g/cm3
Hardness: 36-42HRC
Conductivity: ≥18%IACS
Tensile strength: ≥1100Mpa
Thermal Conductivity: ≥105w/m.k20℃
Specification:
Type: Coils and Sheets
Thickness : 0.02~0.1mm
Width : 1.0~625mm
Tolerance in thickness and width : According to standard YS/T 323-2002 or ASTMB 194-96
