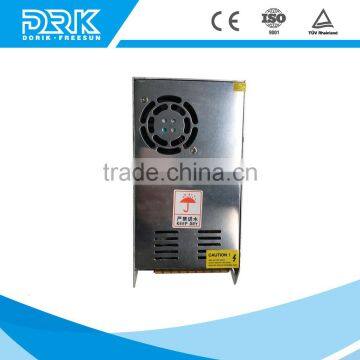

Dorik output 12V 30A ac dc switching power supply

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Features:

Parameters & Details

Model		D-360-12
Output	DC voltage	48V
	Voltage tolerance	±1%
	Rated current	30A
	Current range	0~30A
	Rated power	360W
	DC voltage adjustable range	±10%
Input	Voltage range	90 ~ 132VAC / 180 ~ 264VAC
	Frequency	47~63HZ
	Efficiency	80%
Protection	Over load	105 ~ 135% rated output power
		Protection type: Hiccup mode, auto-recovery after fault condition is removed.
	Over voltage	Protection type: Hiccup mode, auto-recovery after fault condition is removed.
Environment	Working temp,humidity	-10°C~+60°C, 20%~90%RH
	Storage temp,humidity	-20°C~+85°C, 10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
Safety	Withstand voltage	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
	Isolation resistance	I/P-O/P, I/P-FG, O/P-FG: 100M ohms/500VDC
Fit standard	Safety standard	Compliance to UL1012
	EMC standard	Compliance to EN55022,CLASS A
Others	Dimension	21511550mm(LWH)
	Weight	0.95kg

Our Services

1. If components are broken within guarantee period due to power supply design or component bad quality, supply replacement free.

2. For overseas customers, in case of problems with power supply, respond within 24 hours from receiving customer's written inform.

3. Supply detailed operation manual and troubleshooting table .

4. Supply technical support to find out problem reason and guidance of troubleshooting.
