Home > Products > Railway Equipment > 2014Hot selling YTF-400 rail gap adjuster made in china

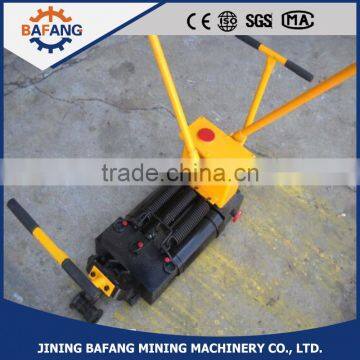

2014Hot selling YTF-400 rail gap adjuster made in china
- 5000 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
YTF-400 hydraulic railway gap adjuster
-
Hydraulic Bend Machine/Hydraulic Railway Bending
-
High quality ND-4 Internal Combustion Railway tamping machine
-
ND-4 Railway tamping machine for sale
-
Chinese selling KKY-500 Railway hydraulic hole puncher
-
High quality NGZ-31 internal combustion rail drilling machine
Product Details
| Place of Origin | Shandong, China | Model Number | YTF-400 |
Product Description
Product introduce:
Under normal circumstances, one can push a length of 12.5 m 43Kg / m rail 4-5 roots; 25 m 43Kg / m rail 2.
YTF-400 rail joints checked before Used:
a. whether the oil level in the tank reaches two-thirds of the tank height
b. return valve effect is reliable
c. pull wedge mechanism is flexible and reliable
d. loose parts of the connections are tight and leak
YTF-400 rail joints steps:
1 Push the rail joints rail joints to be adjusted
2 pull moving frame, so that the two clamps (wedges) falls on rails, so that the oblique iron rails folder in prison
3 Tighten the oil return valve clockwise, rocking lever, so that the high pressure oil input operating cylinder
4 When after each adjustment shall order first unscrew the oil return valve
Technical parameters
Model | YTF-400 |
rated thrust | 400KN |
Oil Cylinder Maximum Trip | 140mm |
operating oil pressure | 52mpa |
The maximum operating force controller | 400N |
Dimension | 850*300*290mm |
N.W | 80kg |
