Home > Products > New Energy Equipment > 200w Wind Driven Generator/wind Turbine Generator/wind Power Generator

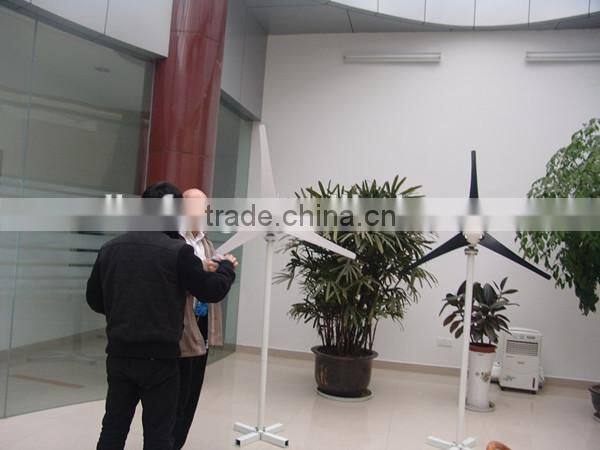

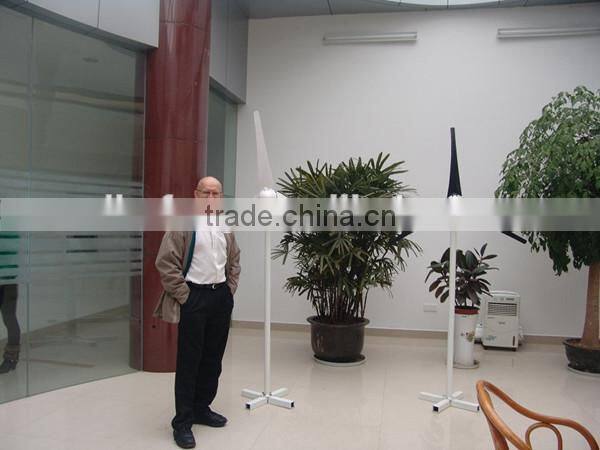

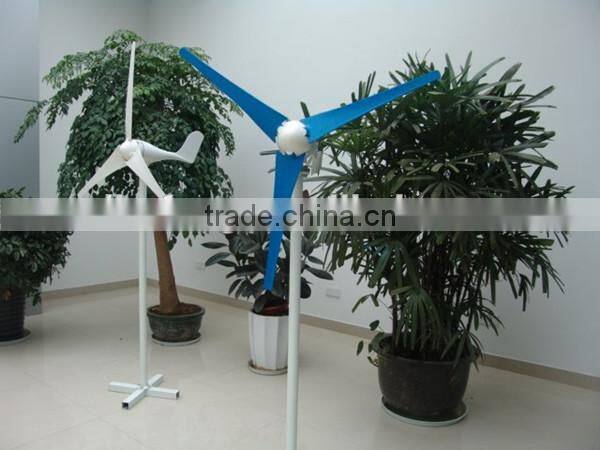

200w Wind Driven Generator/wind Turbine Generator/wind Power Generator

FOB Price

US$ 190 - 240 / Set

1 Set(Min. Order)

Port Qingdao

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	Bafang
Model Number	200W		Type	Wind Power Generator

Product Description

Specifications

1) Small size
2) Silent as vertical wind driven generator
3) Simple installation
4) The invertor is power efficiency, and si

Specifications

1. Variable pitch
2. On-grid system
3. Maintenance free
4. High efficiency

We are the manufacture of wind generator and we have the power 100w -10kw.which model you want you can contact me and I will try my best to satisfy your demand as possible.

Features

1. Starting with low speed; high wind energy utilization; beautiful appearance; low vibration on operation.

2. Being installed by human design and easy for installation, maintenance and repair.

3. Being molded through precise injection with new process, together with the optimized design of

aerodynamic contour and structure, our wind turbine blades have such advantages: high utilization of

wind energy which contributes to the annual energy output.

4. Our generators, adopting patented permanent magnet rotor alternator, with a special kind of stator

design, efficiently decrease resistance torque of the generators. Meanwhile, it makes the wind turbines

match the generators quite well and increase the reliability of their operation.

100w wind generator tech data

Model	NE-100S	NE-200S
Rated power	100W	200W
Maximun power	130W	230w
Rated voltage	12/24V	12/24v
Start-up wind turbine	2.0m/s	2.5m/s
Rated wind speed	10m/s	11.5m/s
Survival wind turbine	55m/s	55m/s
Top net weight	6.0kg	6.5kg
Wheel diameter	1.2m	1.3/1.4m
Number of blades	3/5
Blades material	Nylon fiber
generator	Three phase permanent magnet ac synchronous generator
magnet	NdFeB
Generator case	Casting aluminum alloy
Control system	Electromagnet/wind wheel yaw
Speed regulation	Automatically adjust windward direction
Working temperature	-40°C - 80°C
Design life	20 y
Gross weight	8kg
Package Dimension	670280190mm
