static dynamic torque sensor for measuring force rotary torque

Static dynamic torque sensor for measuring force rotary torque

Introduction

1, motor, rotating power equipment such as engines, internal combustion engine output torque and power of detection;

2, fan, water pump, gear box, torque wrench, torque and power of detection;

3, railway locomotive, automobile, tractor, airplane, ship, mining machinery, the torque and power of inspection measurement;

4, can be used in the wastewater treatment system in torque and power of detection;

5, can be used in the manufacture of viscometer;

6, can be used in the process industry and process industry.

detailed picture

Technical parameter

The amount of process range: 5 - 3000000 N m (small range can refer to the CKY-805 trace range torque series)

The amount of constant rotating speed: the highest 12000 rpm. (more high speed please inform)

Torsional moment of precision: < 0.5 or 0.3 or 0.1% F - S (optional)

Frequency response: rate 100 s

Non line: < + 0.08% F S

Heavy complex: < + 0.06% F S

Later lag: < 0.05% F - S

Zero point drift: < 0.2% F - S

Long period of stability: < + 0.3% F S

Lose out resistance: 1000 Omega + 5 Omega

The vast edge resistance: >500M.

Static state overload: 120% 150% 200% (optional)

The with temperature: - 20 ~ 50 degrees

Storage: storage temperature - 45 ~ 70 degrees

Power source: piezoelectric 24VDC or + 15VDC,

The total current consumption: < 130mA

The letter number output: 4-20mA, 1-5V, 5KHZ - 15KHZ (frequency) or customer specified

Rated torque : 10KHZ ± 5kHZ ( positive and negative bidirectional measurements )
Signal duty cycle : (50 ± 10)%
Speed Pulse: 60 pulses / revolution or 120 pulses / revolution
Protection degree : IP65

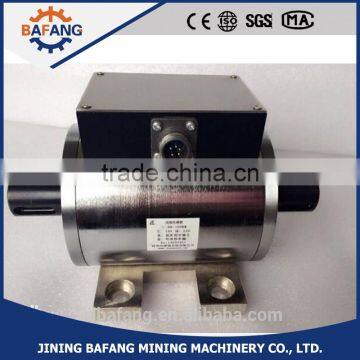

Dynamic torque sensor

 The static torque sensor
