Home > Products > 75 Valves & Cocks > Brass Needle Valves Threaded,Female Ends,1/4,IMPA:752152

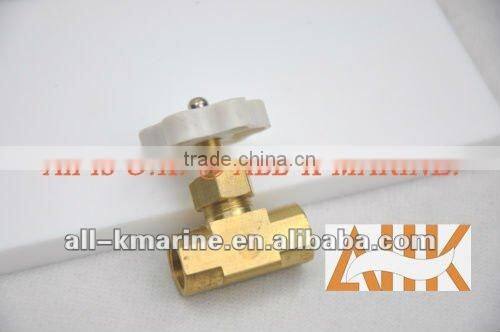

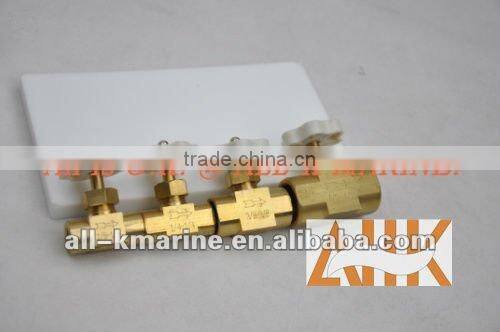

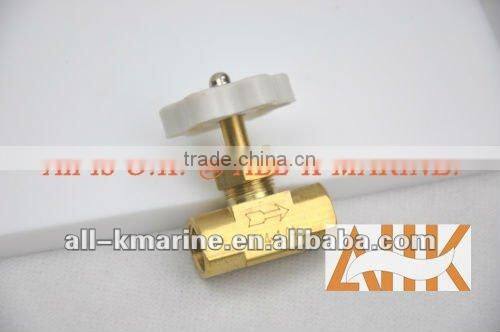

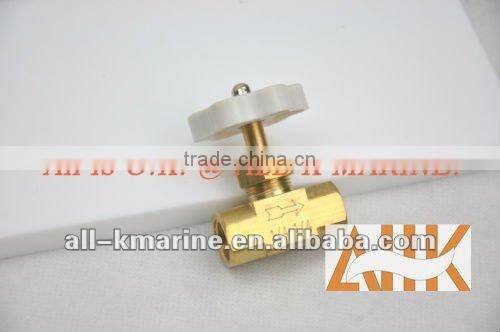

Brass Needle Valves Threaded,Female Ends,1/4,IMPA:752152
Negotiable
/ Piece
1 Piece(Min. Order)
- Ningbo or other port in China
- T/T Credit Card
You May Like
Product Details
| Material | Other, Brass | Technics | Casting | |
| Type | Other, Valve | Place of Origin | Zhejiang, China | |
| Model Number | 752152 | Brand Name | ALL-K or OEM | |
| Connection | Female | Shape | Equal | |
| Head Code | Other, Round |
Product Description
Specifications
Brass Needle Valves Threaded1.Female Ends
2.Nominal Size:1/4
3.IMPA:752152
4.For controllig flow of liquids or gases
Brass Needle Valves Threaded,Female Ends,1/4,
IMPA CODE:752152
| 1.Female Ends |
| 2.For controlling flow of liquids or gases requiring close regulating. |
| 3.Brass rod material made body and bonnet with nitrile O rings and heat-resist plastic handles. |
| 4.The applicable temperature in -20 °C to 100 °C and the maximum pressure is 5.88 MPa[60 kgf/ cm² ] at 80 °C |
| CODE | Nominal Size | Thread d | Dimensions mm | ||
| L | H | A | |||
| 752151 | 1/8 | PF-1/8 | 35 | 37 | 35 |
| 752152 | 1/4 | PF-1/4 | 40 | 45 | 35 |
| 752153 | 3/8 | PF-3/8 | 50 | 50 | 45 |
| 752154 | 1/2 | PF-1/2 | 70 | 65 | 55 |
Other sizes available upon request. |
