5kw Diesel Welding Generator
Negotiable
/ Set
10 Sets(Min.Order)
- 1000 Set / Sets per Month
- Ningbo/Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YOLEE | |
| Model Number | YL-DW6500 | Output Type | AC Single Phase | |
| Speed | 3000rpm | Frequency | 50HZ | |
| Rated Power | 5KW | Rated Voltage | 220V | |
| Rated Current | 22A |
Product Description
Specifications

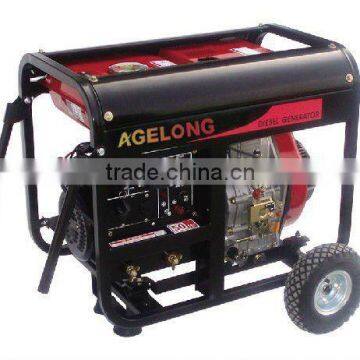

Diesel Welder GeneratorSingle cylinder, 4-stroke, air-cooled, direct injection, diesel engine.
Diesel Welder Generator
Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine.
Welding voltage: 25-30v
*Rated current: 160A
*Electrode φ Mm: 1.6-4.0
Model: KDW6000CX
*Automatic air bleeding mechanism
*AC Voltmeter
*DC Output*
AC Circuit Breakers
*DC Fuse Protection
*Full-power Switch on Dual Voltage
*Extra Large Fuel Tank with FuelGauge
*Large Capacity Silent Muffler
Optional Equipped
*Low Oil Shut Down
*4-wheel Kit
*Electric Starter*Battery
*Remote start function
CL: Large Fuel Tank/Control Panel
* CX: Large fuel tank / Control Panel / Low Oil Shut Down
* E: Electric Start
* W: Welding Generator
| Model | YL-DW6500 | |
| Rated frequency (Hz) | 50 | 60 |
| Rated voltage (V) | 230 | 240 |
| Rated current (A) | 8.7 | 9.2 |
| Rated output power (KVA) | 4.5 | 5 |
| Rated rotation speed (rpm) | 3000 | 3600 |
| Welding voltage without load (V) | 55-65 | |
| Rated current (A) | 160 | |
| Work voltage (V) | 26 | |
| Current regulation range (A) | 50-180 | |
| Welding load continuous ratio | 60% | |
| Power factor cosφ | 1 | |
| Phase number | Single phase | |
| Noise level dB(A)@7m (zero load-full load) | 74-79 | |
| Net weight [kg(lbs)] | 154 (338) | |
| Overall dimension [mm(in)](L× W× H) | 775× 485× 580 (30.51× 19.09× 22.83) | |
| Structure model | Open-frame | |
| Engine model | D186FE | |
| Engine type | 1-cyliner, 4-stroke, air-coolde, vertical, diesel engine | |
| Displacement [cm³ (Cu-in)] | 406 (24.78) | |
| Compression ratio | 19.01 | |
| Reted power [KW(Hp)/rpm] | 6.3 (8.6)/3600 | |
| Rated rotation speed (rpm) | 3000/3600 | |
| T. C. L. | No | |
| Spark plug | 12V electric starter | |
| Starting system | Electric starting | |
| Rotation direction (view from flywheel) | Clockwise | |
| Fuel type | 0(summer), -10(winter) diesel oil | |
| Lube | SAE10W30 (above CC grade) | |
| Low oil presssure alarm system | With | |
