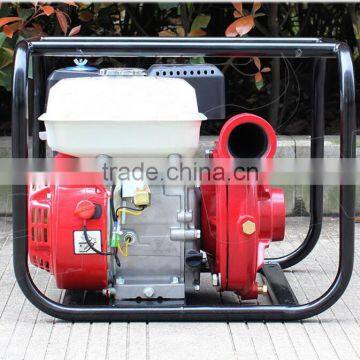

CAST IRON PUMP Fire Water Pump High Pressure Centrifugal Hydraulic Pump
- Ningbo/Shanghai
- T/T
You May Like
-
3 Inch Honda Pump Pump Lift 30m 6.5hp Gasoline Engine Water Pump With Cheap Price
-
Sewage Water Pump Trash pump Mud pump
-
Chemcial Water Pump Sea water pump
-
gasoline water pump, irrigation water pump, kavasaki water pump
-
gasoline water pump, water pump, Honda water pump
-
Water pump, gasoline pump 100, water pump price 40
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YOLEE | |
| Model Number | YL-GWP60 | Theory | Centrifugal Pump | |
| Structure | Piston Pump | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | High Pressure | |
| Application | Fire |
Product Description
Introduction:
* Powered by air cooled 4-stroke honda engine
* Iron pump body design
* High quality and mechanical sealed equipment
* Compact structure ,light weight,easy operation
* Easy maintenance.
Honda Engine
1) Type: 1-cylinder, 4-stroke, air-cooled gasoline engine
2) Work capacity: 215cm³
3) Max. Output: 7horsepower/3600rpm
4) Ignition system: Non-contact transistor
5) Starting system: Recoil/Electric
6) Fuel tank capacity: 3.6L
7) Continuous operating time: 5hours
8) Engine oil system capacity: 0.6L
Honda engine advantage:
1.iron camshaft
2. With oil alert
3. broker cylinder crankshaft
Water Pump:
1) Diameter of outlet: 2inch
2) Max. Delivery lift:40
2)flow rate: 500L/min
Size and weight:
1) Over dimension(L*W*H): 535*400*420mm
2) Dry weight:28kg
| Engine Output | 6.5HP | |
| Bore x stroke | 68 x 54mm | |
| Displacement | 196cc | |
| Type | Air Cooled, Single Cylinder, 4 Stroke | |
| Compression ratio | 8.5 : 1 | |
| Rated rotation speed | 3000 / 3600rpm | |
| Oil capacity | 0.6L | |
| Pump | Inlet and outlet size | 50mm (2.0") |
| Pump lift | 78m | |
| Suction height | 6m | |
| Displacement | 56 m³/hour | |
| Starting system | Recoil start | |
| Fuel tank capacity | 3.6L | |
| Noise level | 94db | |
| Net / Gross weight | 27 / 28kg | |
| Overall dimension | 485 x 385 x 380mm | |
| 20GP | 385set | |
| 40HQ | 900set |
