Electronic meter
- NINGBO
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | WD | |
| Model Number | WD-FMC |
Product Description
Specifications
Rotary Vane Flow Meter are single case, angle-type,rotary vane,postitve displacement meters.
Meter with mechnical register,printer,air eliminator and stainer
Preset Meter with mechnical preset register,printer,air eliminator and stainer
Meter with mechnical register,air eliminator and stainer
Rotary Vane Flow Meter are single case, angle-type,rotary vane,postitve displacement meters.
Superior accuracy and a wide range of products from gasoline to kerosene to fuel oils can be metered.
Compact,versatile design can be readily fit into nearly all installations.
Low pressure drop meter results in low meter slippage and thus superior meter accuracy.
Long service life,low friction ball bearings,fixed cam-type timing,and rugged construction give sustained accuraccy and long time operation.
Application includes: blenging,batching,dispengsing, inventoty control,and custody transfer of oils,solvents, chemicals,paints,fats and fertilizers.
Technical Specification:
Model: | WD-FMC-50 | WD- FMC-80 | WD- FMC-100 |
Size: | 50mm / 2 " | 80mm / 3 " | 100mm / 4 " |
Flow Rate Range(L/min): | 38-380 | 75-750 | 150-1500 |
Max.Working Pressure: | 150PSI | ||
Accuracy: | ±0.2% | ||
Repeatability: | 0.07% | ||
Construction:

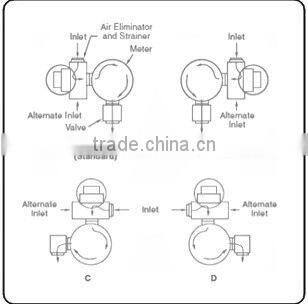

Inlet/Outlet Position Arrangements:
