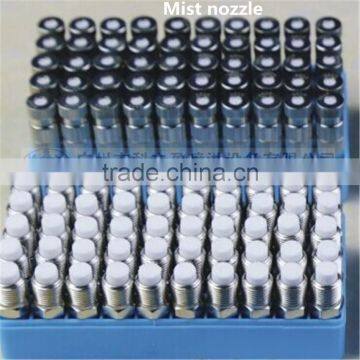

Stainless steel mist nozzle for Humidification

Stainless steel mist nozzle for Humidification

The mist nozzle without the use of compressed air, to form a very fine mist of liquid pressure available, excellent atomization, multiple nozzles removable, easy to disassemble to clean clogged, some built-in strainer or filter cartridge nozzle, clogging, Easy to use, this series does not need air-assisted spray nozzle system means simple, fine spray mist point, cloud point up 3-7 microns, atomized sufficiently low energy and water saving, cost effective, watertight.

Mist nozzle is brass body Recessed stainless steel nozzle core key guide vane, centrifugal liquid to form a vortex in the guide vanes, the spray fine mist particles from hollow-type spray holes, can be widely used plant humidification, cooling, salt spray test, artificial fog and other humidification places, such nozzle holes are using US precision drilling machine drilling, aperture between 0.1mm-0.8mm, well-produced, the cost of gas humidification phase ratio, saving more than 10 times.

   The series does not need air-assisted spray nozzle system means simple; spray fine mist point, fogging sufficiently low energy and water conservation, cost, good effect; stainless steel spray piece forging process by advanced processing, durable and strong. Is similar to 2.5 times the nozzle life.

This nozzle may be fully utilized atomized water pressure

[Application] 1, 2 wet blasting, air humidification 3, 4 chemical treatment, chemical spray 5, 6 liquid spray, tobacco humidifier 7, 8 tablet coating, evaporative cooling flue 9, 10 sterilization, cooling components 11 , fruit spray wax 12, 13 glazed tiles, plant humidification 14, salt spray test 15, 16 artificial fog, humidity, etc. other places.
[Material] Brass / Stainless Steel
[Specification] low pressure spray nozzle hole diameter specifications have 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.8mm, thread size is 3/16, the Division can provide you with turn 1/4 3/16 or turn 1/2 bushing.

8.Humidifying in workshop
