Industrial Nozzle
Negotiable
/ Piece
1 Piece(Min. Order)
- China
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | kly | |
| Model Number | 6317 spray nozzle | Condition | New |
Product Description
Specifications

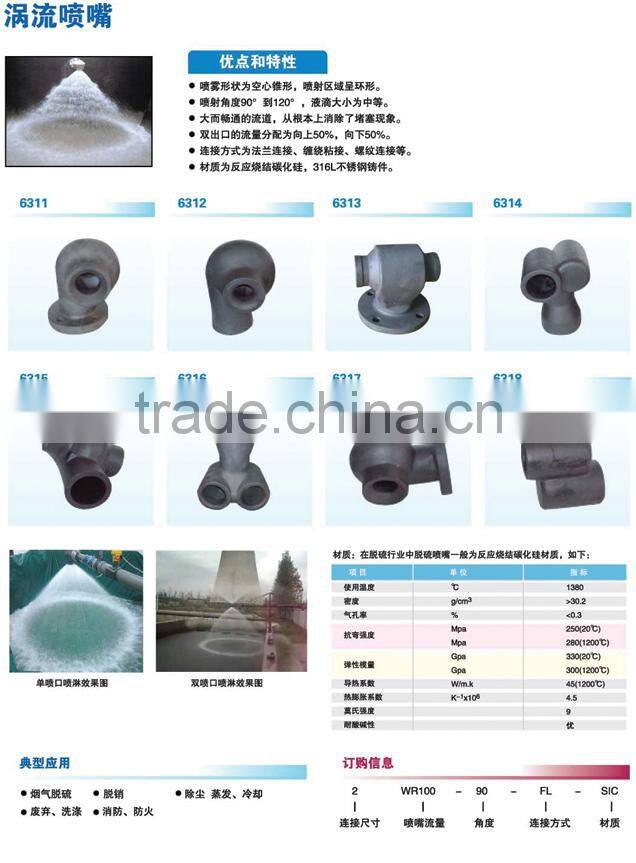

Industrial NozzleSilicon carbide vortex spray nozzle
Dedusting,cooling spray nozzle
Industrial Nozzle

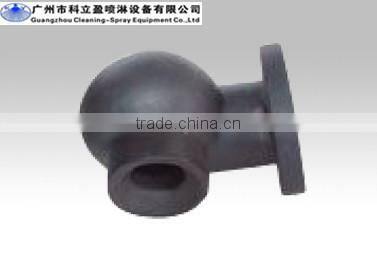

Silicon Carbide Vortex Spray Nozzle
Order No.: WR100
Angle: 90°
Material : SIC
Connection FL
Connection Size: 1'', 1-1/4'', 1-1/2'', 3'', 2-1/2'', 2" , 4''
Max. Operating pressure: 3 bar
Application: Dedusting,cooling ,cooling tower,fire protection,etc
Vortex spray nozzle characteristics:
Spray angle from 90° to 120°, the droplet size is medium.
Large and smooth flow path, virtually eliminating the clogging.
Double outlet flow distribution was up 50%, down 50%.
Connection flange connection, winding bonding, screw connections.
Made of reaction bonded silicon carbide, 316L stainless steel castings.
The shape of Silicon carbide spray nozzle is a hollow cone spray, spray annular region.
Specification Data refer to the following content
Performance Data
Need other specifications, please note
Silicon carbide is a power plant desulfurization nozzle, a key component of large boilers,
desulfurization and dedusting complete sets of equipment.
The product has high strength, high hardness, strong resistance to corrosion, severe wear,
excellent high temperature performance, etc., under the harsh conditions have long life.
Legislative Branch surplus production desulfurization reaction bonded silicon carbide spray
nozzle, spray droplet distribution, flow smooth, non-blocking phenomenon, completely replace
imported products, to fill the gap. Legislative Branch currently has surplus spiral, swirl pattern,
plume-three series over dozens of varieties, has been used in desulfurization and dust removal
device and a large number of thermal power plant boiler, running in good condition.
Any question please contact us
Mobile: +8615902028022
