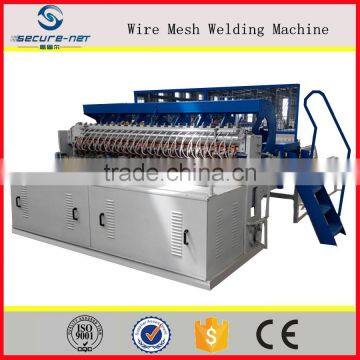

Anping Secure-Net Reinforcing Wire Mesh Welding Machine

    Anping Secure-Net Reinforcing

      Wire Mesh Welding Machine

Main parameter

Wire diameter:5-12mm
Welding aperture:100*100-300*300mm
Width of mesh:2500mm(customized)
Number of electrodes:26(adjustable)
Welding speed:35times/min(50times/min)
Rated voltage:AC380V 50HZ(customized)
Rated power:1820KVA
Overall dimension:9*3.6*2.5m(customized)/15*3.6*2.5m(customized)

Product description:
1.This machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system.
2.The input front-panel is touch screen , the operate is more intelligent and reasonabl
3.The line wire and the cross wire are pre-straight and pre-cut.
4.Wire mesh panel be pulled by the servo motor automaticly
5.Line wire feeding device save more welding time
6.The cross wire feeding from the hopper automaticly
7.The transformer adopts water-cooling system.
8.The water cooling system of electrode is designed, prolong the service time of electron.

Auxiliary equipment

Straightening cutting machine

Wire feeding plate

Application mesh:

It can be used for producing high-lwvel construction and bridge mesh,high-way reinforcing mesh,construction reinforcing mesh,floor pouring mesh.

Host with plastic film packaging, numerical control cabinet packed in wooden cases.

Our Services
1 .Maintenance period:one year
2.If the buyers need, we can send our technical staff to the buyers’ place to
debug the machine and providing the training in 30 days after the machines
arrive at the destination port.
3.The commissioning fees: free
4.The training fees: USD100/day for each technical
5.The numbers of technical persons: one technical person per machines at most
6.The fees ,such as round-trip tickets, accomodation etc, are all in buyers’
account. During the maintenance period: the parts damaged non-artificially
will be provided free of charge. If you need the technicians, we will
assign the expertised staff to your company. And the fees,such as round-trip
tickets, accomodation etc, are all in your account.

Hebei Secure-Nett Fence Facility Co.,Ltd.

§ Hebei Secure-Nett Fence Facility Co.,Ltd.founded in 2000,is located in Anping,famous as production base of wire mesh in China.

§ Now Secure-net has developed into an integrated entity with R&D, manufacturing and trading.

§ Main products of Secure-net are welding wire mesh machine,welded wire mesh machine,chain link fence machine,barbed wire machine,gabion mesh machine.

                                      Saleman:Gail Shi

                                     Tel:86-18031855078

                                    Fax:86-031185245076

                                    Wechat:18832128285

                                  Whatsapp:+18832128285
