Stainless Stell Wire Mesh Machine
- Port of Tianjin Xing
- T/T
You May Like
-
SECURE-NET Automatic Welded Roll Wire Mesh Machine
-
Stainless Steel Wire Mesh Spot Welding Machine Factory
-
Welded Panel Making Machine/welded Wire Mesh Equipment/welding Wire Mesh Machine
-
Welded Mesh Machine in Roll
-
Full Automatic High Speed Welded Wire Mesh Machine
-
2016 Hot Sale Welded Wire Mesh Making Machine Price (direct Factory)
Product Details
| Place of Origin | Hebei, China | Brand Name | SECURE-NETT | |
| Model Number | SG-DHW | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
stainless stell wire mesh machine
Product Description:
1.Both longitude wire and cross wire can be feeded from wire coils automatically.
2.The raw material is applicable for low carbon steel wire or stainless steel wire .
3.Stainless stell wire mesh machine has advantage such as design reasonable, low noise,more stable,easy operation
and electromagnetism adjustable speed for welding.
4.The mesh size is precise and the machine can be set the width and length according to customer’s requirement .
5.Stainless stell wire mesh machine production line consists of main welding machine ,electrical control cabinet,
reparing table ,repairing machine,bracket for longitude wires,bobbin machine and bobbins.
Stainless stell wire mesh machine main parameter
Model Series | Size of mesh (mm) | Width (mm) | Diameter of wire (mm) | Biggest rolled net size (m) | Welding speed (mesh/minute) | Power | Outside size measurement (mm) |
J-DHW4 | 6.35-12.7 (1/4"-1/2") | 914.4-1219.2(12"-48") | dia.0.45-dia.1.07 (BWG25-BWG19) | 120m (400') | 75 (radia) | 380/220V | 2350 x 1820 x 1700 |
J-DHW6 | 6.35-12.7 (1/4"-1/2") | 1219.2-1828.8(48"-60") | dia.0.74-dia.1.07 (BWG22-BWG19) | 120m (400') | 48 (radia) | 380/220V | 3050 x 1900 x 1750 |
L-DHW4 | 12.7-101.6 (1/2"-4") | 914.4-1219.2(12"-48") | dia.0.63-dia.2 (BWG25-BWG19) | 120m (400') | 65 (radia) | 380/220V | 2600 x 1700 x 1350 |
L-DHW6 | 25.4-152.4 (1"-6") | 1219.2 1524 1828.8(48" 60" 72") | dia.1.07-dia.2 (BWG19-BWG14) | 91.4m (300') | 45 (radia) | 380/220V | 3350 x 1800 x 1400 |

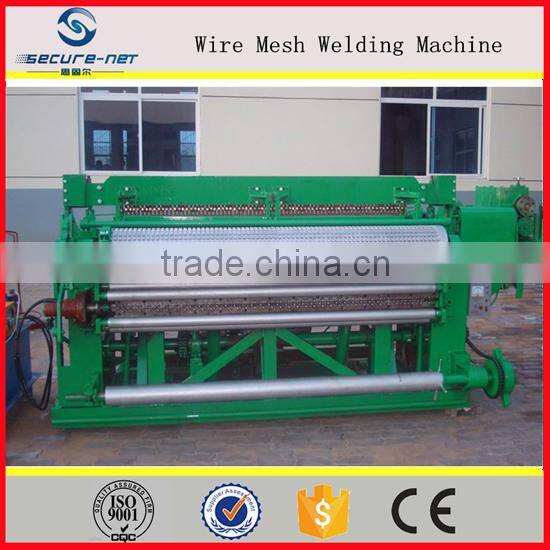

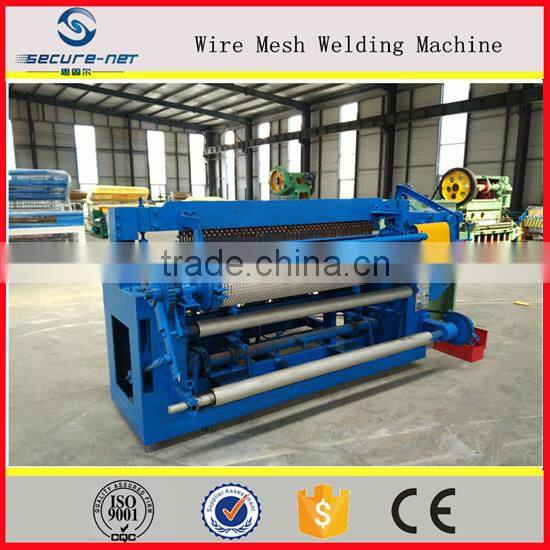

Main Machine
Stainless stell wire mesh machine

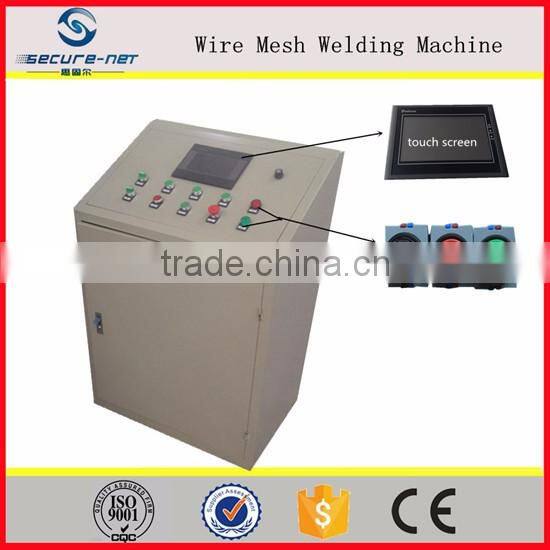

Control System
Stainless stell wire mesh machine auxiliary machine

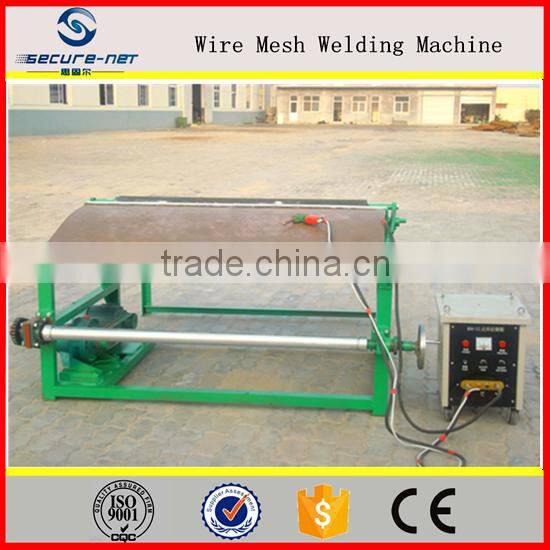

1. reparing table ,repairing machine

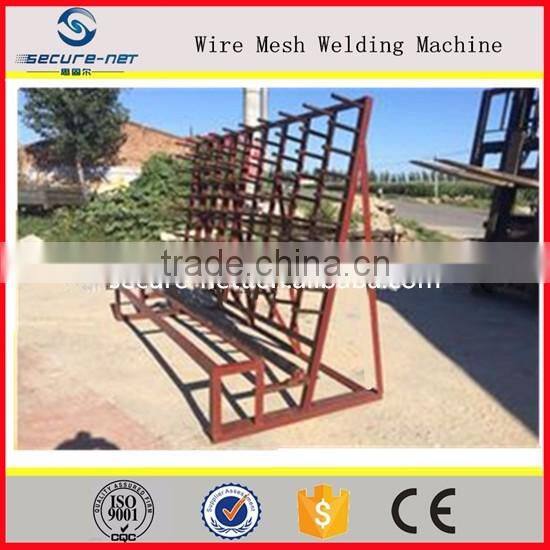

2.Bracket for longitude wires

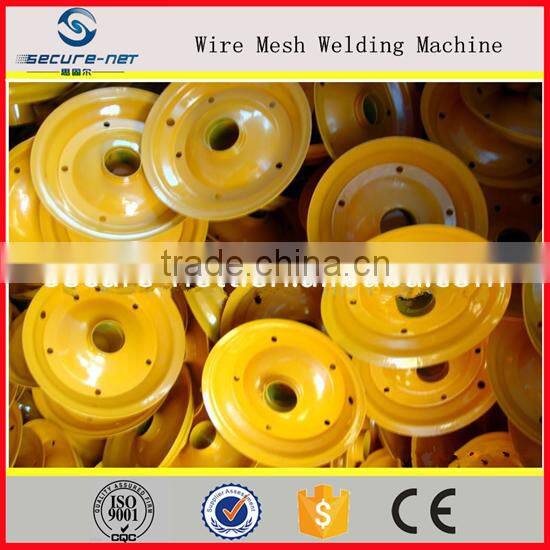

3.Bobbin machine and bobbins
1.The spare parts and control cabinet will be loaded in wooden box.
2.The main machine is nude packing or plastic packing.
3.Also can do as customer's request.
1.If the buyer need,we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination pory
2.Maintenance period:One year for whole machine except vulnerable parts
3.The number of technical persons :one technician per machine
4.The fees:the buyer have to pay the technical salary 100 USD per day,and the round-trip tiket,accommodation and other related fees
During the maintenance period.if the parts are broken caused by the product problem.seller will offer the parts for free,if you need we assign the tachicians to your factory ,then you will pay some related fees.
Stainless stell wire mesh machine
1.We are professional wire mesh machine manufacture with 15 years experiences in china.
2.We are located in Anping ,The wire mesh base in China, with huge wire mesh industry support, All of our machines comply with international quality standards and customers' needs ,and are greatly appreciated in variety of markets all over the world.
2..Hebei Secure-Nett Fence Facility Co. ,Ltd .Established in2000. In 2002 the company passed the ISO9001 quality management system certification, the end of 2006 the company has made the right to export. main products:Poultry cage welding machine, construction mesh welding machine, Fence mesh welding machine, Reinforcing mesh welding machine ,stainless stell wire mesh machine and related accessories.
Pictures show:
Our office
Our factory
Main production
Certificate
Welcome to visit our office and factory .
If you have any problem ,let me know,will help you try my best.
