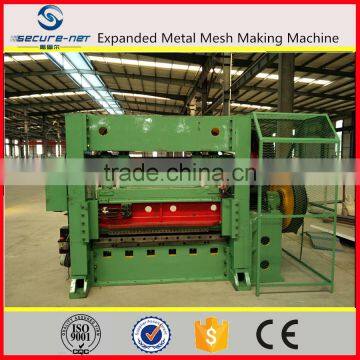

Automatic heavy duty expanded mesh machine, Expanded sheet machine

Model:Expanded metal mesh machine

Tchnique parameter of expanded mesh machine
Type                                   JQ25-6.3          JQ25-16               JO25-25             JQ25-40            JQ25-63                 JQ25-100
material thickness(mm)     max1.0              max1.0                 max1.5              max2.5               max4.0                  max6.0
net width(mm)                    max600              max1000             max1250           max1500            max2000               max2500
punching times/min           180                     290                      160                   100                      85                         65
feedind distance(mm)        0-10                    0-10                     0-10                   0-10                   0-20                      0-20
length of mesh(mm)          max20                max25                  max30                max80               max200                 max200
motor power(kw)                2.2                      3.0                       4.0                     11.0                    11.0                      15.0
weight(t)                            0.95                     2                          3                         6                        10                         12
oeveral diamension(mm) 950*570*1780  1800*1320*1550  1940*1600*2010  2870*990*2140  2400*3500*2300   3600*2500*3000

The advantages of expanded metal machine
1 Advantages:This machine adopts the mature technologies of the past as well as new technologies such as:fully-automatic lubricating,NCstepping motor feedind,etc:it has good effect;controllability,stability,stability and safty has been greatly increased;it has reasonable structure,elegant appearance,it is environmental production and energy saving.
2 It is suitable for the material as low carbon steel,aluminium sheet,stainless steel sheet,aluminium magnesiumalloy sheet,copper sheet,Nickel sheet.
3 Finished product usage:usage with concrete in buildings and construction,maintenance of equipments,making of arts and crafts,covering screen for first class sound case.Also fencing for super highway ,studio,highway.Hiahway expanded metal can be used as step msh of oil tanks,working plattform,corridor and walking road for heavy model equipment,boiler,petroleum and mine well,automobile vehicle vehicles,big ships.

Packaging

1. The main machine and auxiliary equipments will be with plastic package, spare parts in carton box.

2. The main machine will be fixed in the container by steel wire rope to make it stable.

Hebei Secure-Nett Fence Facility Co.,Ltd.

1.Hebei Secure-Nett Fence Facility Co.,Ltd.founded in 2000,is located in Anping,

famous as production base of wire mesh machine and wire mesh in China.

2.Now Secure-net has developed into an integrated entity withR&D,manufacturing

and trading.

3.Main products of Secure-net are CNC wire mesh welding machine,automatic

reinforcing wire mesh welding machine.genothermal steel wire mesh machine,

spots welding machine and 3D wire mesh panel machine,ect.
