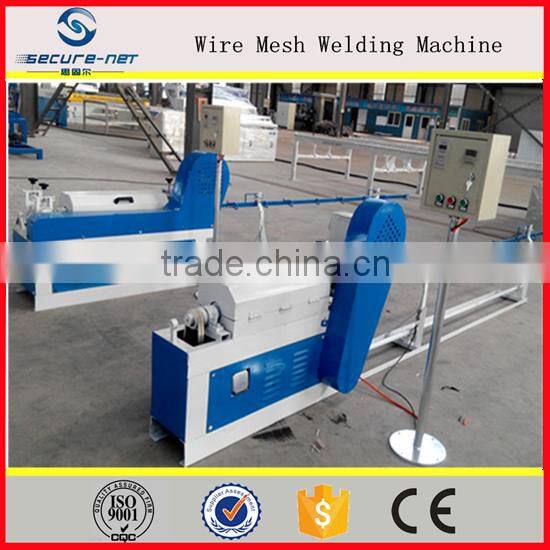

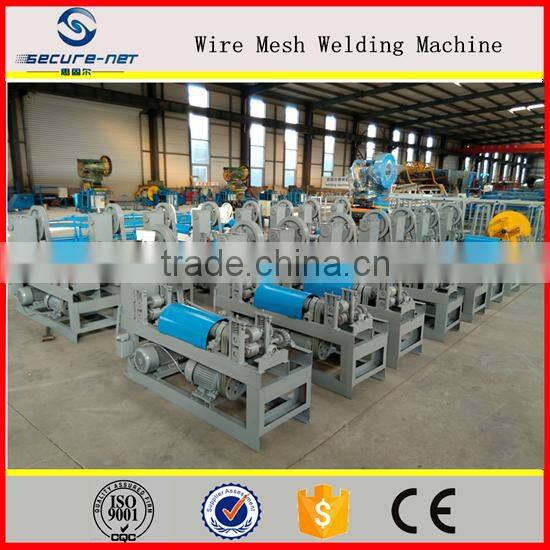

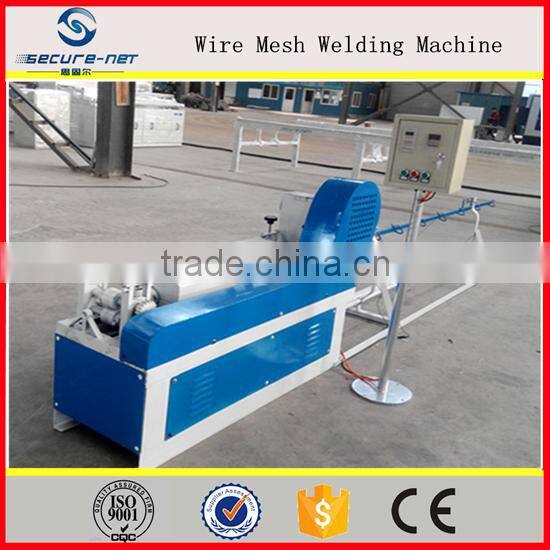

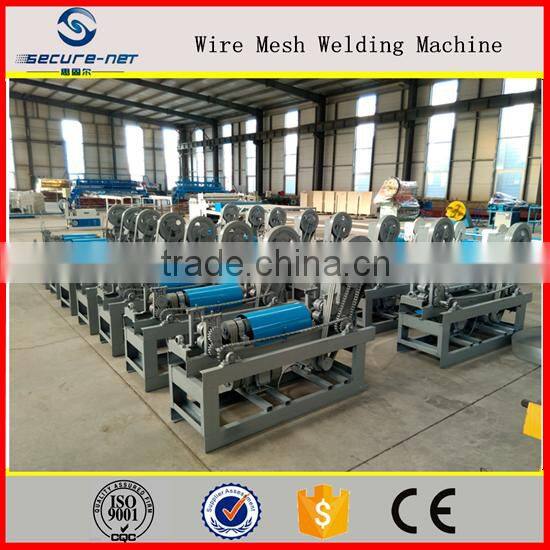

Wire Straightening and Cutting Machine

wire straightening and cutting machine

         Straight wire machine is also called the cutting wire machine, straightening and cutting machine, is one of the steel bar processing machinery.Used for straightening and cutting off steel under 14 mm in diameter, cut the length according to customer requirements.Adjustable straight cut ------------stainless steel wire, aluminum wire, cold wire drawing, galvanized wire, iron wire, steel wire, steel, plastic coated steel wire etc, incision, small error, good performance.

Product Description:

The machine structure is reasonable, stable and reliable, simple operation, high degree of automation, the operator can manage multiple machines at the same time, greatly improved the production efficiency, is the necessary hardware, such as cable manufacturers of special equipment.

Structure:

straight silk by straightening machine barrel, lead line, cutting mechanism, reinforced fixed-length frame, frame and drive device, etc.
Operating principle:

The motor through a belt drive growth, make the straight high-speed rotation, through the adjustable straight steel bar straightening, and by the direct mode to remove scale on the surface of the steel;By the motor through another pair deceleration belt drive and gear reducer, on the one hand, drive two transfer roller, traction bar move forward, on the other hand wheel drives the crank, the hammer head down the movement.When steel bar until the scheduled length, hammer hammer head, cutting the steel, cut off the steel bar in the rack, due to the spring action, knife back in situ, to complete a cycle.

Main parameter:

Wire diameter:0.8-12mm

Cutting length:10-1200cm

Adjust straight speed:35m/min

Adjust straight electric power:1.5kw

Cutting electric power:0.75kw

Voltage:380v

Weight of machine:200-700kg

Outside size:1.1X1.1X0.55M

Company information

1.We are professional wire mesh machine manufacture with 15 years experiences in china.

2.We are located  in Anping ,The wire mesh base in China, with huge wire mesh industry support, All of our machines comply with international quality standards and customers' needs ,and are greatly appreciated in variety of markets all over the world.

2..Hebei Secure-Nett Fence Facility Co. ,Ltd .Established in2000. In 2002 the company passed the ISO9001 quality management system certification, the end of 2006 the company has made the right to export. main products:Poultry cage welding machine, construction mesh welding machine, Fence mesh welding machine, Reinforcing mesh welding machine ,Wire straightening and cutting machine and related accessories.

Welcome to visit our office and factory
