LSS2301-2 CE Certificate Dual-amplitude and Frequency Road Roller Compactor
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
LSS2302-2 CE Certificate Dual-amplitude and Frequency Road Roller Compactor
-
LSS2101-2 Super Quality Steel Wheel Road Roller For Sale
-
LSS2102-2 2015 Factory Suypply Diesel Road Roller Construction Machine
-
LSS1901-2 Chinese Manufacturer Hot Sale Electric Start Road Roller
-
LSS1902-2 China Wholesale New CE Certificate Road Roller
-
LSS1703-2 Super Quality Vibrating Road Roller Machinery
Product Details
| Condition | New | Type | Single Drum Roller | |
| Static Linear Pressure | 529N/cm | Travel Speed | 10.5km/h | |
| Grade Ability | 35% | Place of Origin | Jiangsu, China | |
| Brand Name | LUOYANG | Model Number | LSS2301-2 | |
| Power(W) | 132kW | Dimension(L*W*H) | 6800*2300*3000mm | |
| Weight | 23000kg | Certification | CE,ISO,OHSMS,EMS | |
| After-sales Service Provided | Overseas third-party support available |
Product Description

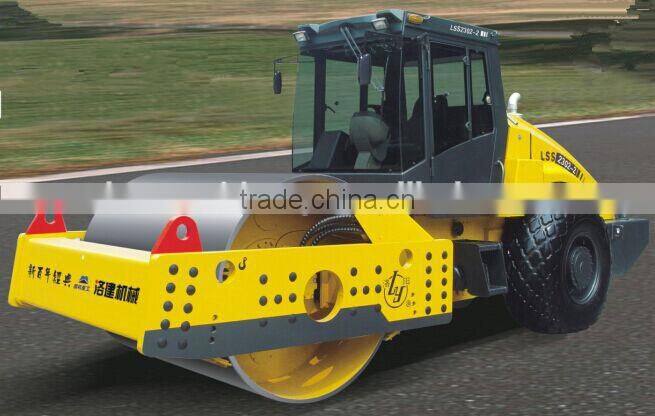

LSS2301-2 CE Certificate Dual-amplitude and frequency Road Roller Compactor
Optional part: Intergrated padfoot drum
Heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction etc., which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground etc.
Main Features
1.GUO II emission standard engine. Engine cooling air-path structure and large capacity of fuel tank.
3.Driving axle with greater braking torque, parking brake by cutting air, safety and reliability
4.Dual amplitude setting of vibration. New types of vibration device and drum travel bearing structure. Heavy-duty gearbox.
5.Joint-moving mechanism of the clutch pedal with engine throttle. Adjustable instrument desk with liquid crystal instrument panel.
6.MP3 supported music system with USB and SD interface. Modernized style overall appearance. Driver's cabin with T type angular glasses.
Technical Specifications
| Type | Unit | LSS2301-2 |
| Operating mass | kg | 23000kg |
| Static linear load | N/cm | 529 |
| Vibration amplitude | mm | 2.0/1.0 |
| Vibration frequency | Hz | 28 |
| Centrifugal force | kN | 380/240 |
| Travel speed | km/h | 10.5 |
| Gradeability | % | 35 |
| Turning radius | mm | 7500 |
| Drum width | mm | 2130 |
| Drum diameter | mm | 1600 |
| Wheelbase | mm | 3530 |
| Ground clearance | mm | 445 |
| Diesel engine model | SC8D180 | |
| Diesel engine power | kW | 132 |
| Overall dimensions | mm | 6800*2300*3000 |
Detail photos

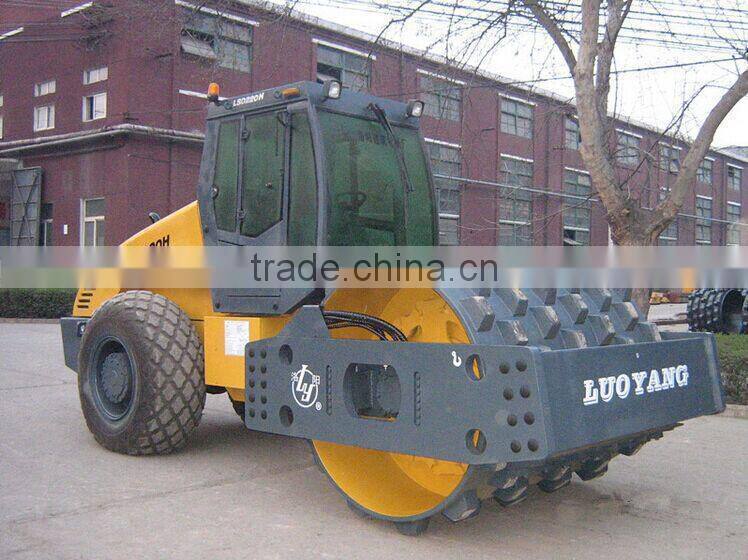

Optional part: Intergrated padfoot drum
